Levelflex FMP51, FMP52, FMP54
Endress+Hauser
J Coax probe (Feature 060)
LN Length of probe
R Reference point of the measurement
L
PEEK 7 mm (0.28 in)
PFA 10 mm (3.94 in)
316L 4 mm (0.16 in)
6.2

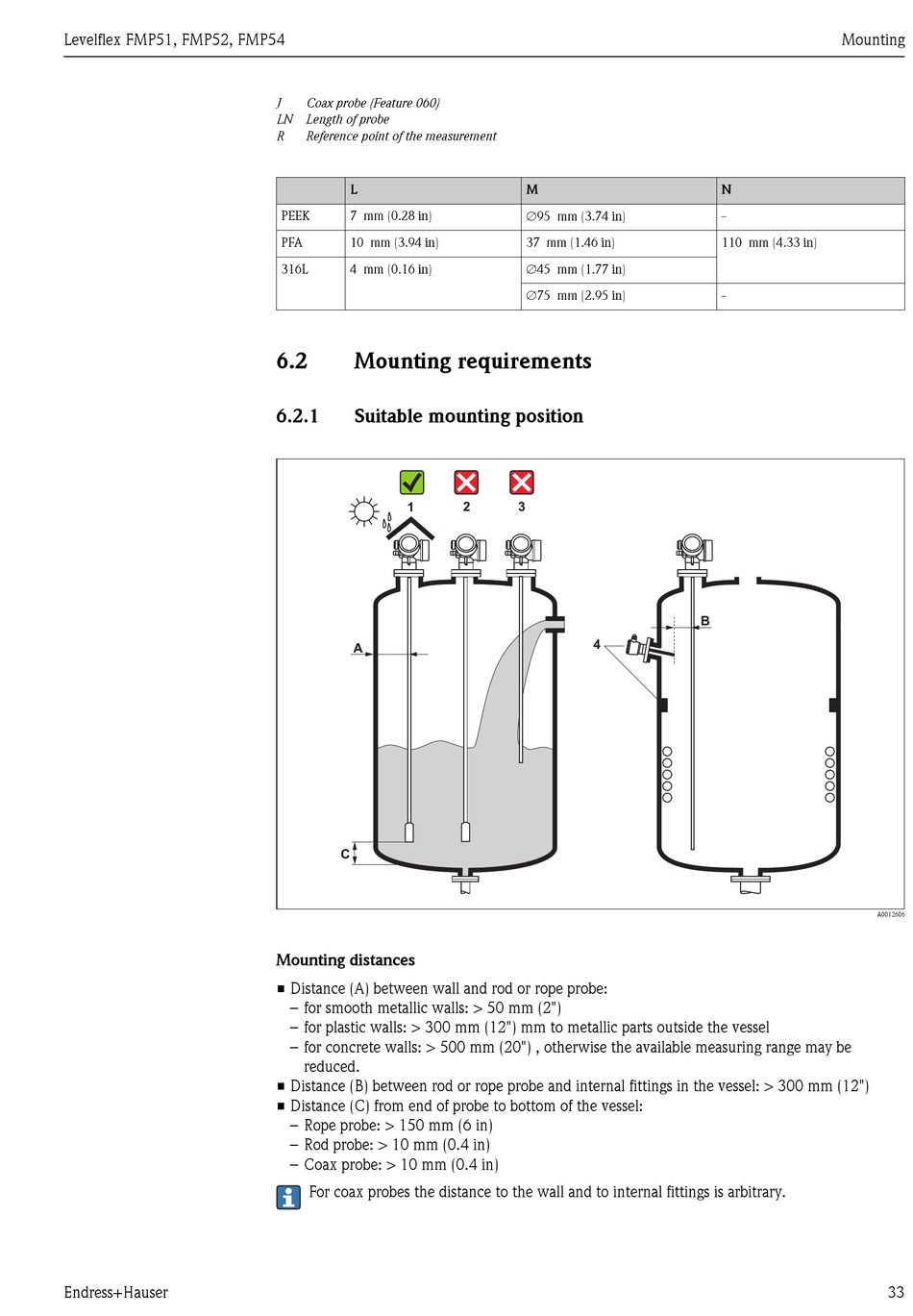

Mounting requirements

6.2.1

Suitable mounting position

1
A
C
Mounting distances
• Distance (A) between wall and rod or rope probe:
– for smooth metallic walls: > 50 mm (2")
– for plastic walls: > 300 mm (12") mm to metallic parts outside the vessel
– for concrete walls: > 500 mm (20") , otherwise the available measuring range may be
reduced.
• Distance (B) between rod or rope probe and internal fittings in the vessel: > 300 mm (12")
• Distance (C) from end of probe to bottom of the vessel:
– Rope probe: > 150 mm (6 in)
– Rod probe: > 10 mm (0.4 in)
– Coax probe: > 10 mm (0.4 in)
For coax probes the distance to the wall and to internal fittings is arbitrary.
M
Æ95 mm (3.74 in)
37 mm (1.46 in)
Æ45 mm (1.77 in)
Æ75 mm (2.95 in)
2 3
4
Mounting
N
-
110 mm (4.33 in)
-
B
A0012606
33
