Levelflex FMP51, FMP52, FMP54
Endress+Hauser
7
Electrical connection
7.1
Connection options
7.1.1
PROFIBUS PA / FOUNDATION Fieldbus
5
4
3+
4-
1
3+
4-
1

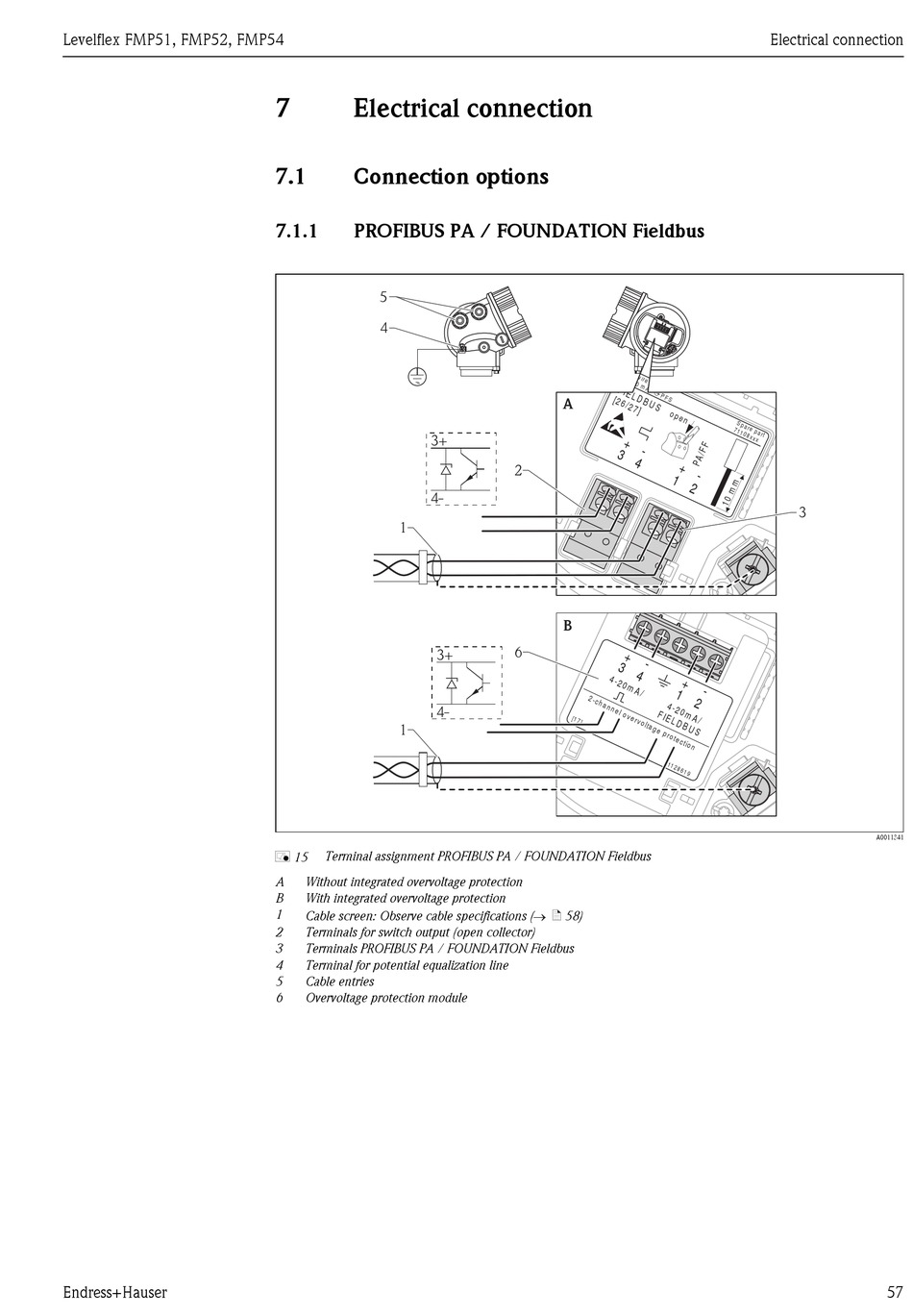

Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus
å 15
A
Without integrated overvoltage protection
B
With integrated overvoltage protection
1
Cable screen: Observe cable specifications (® ä 58)
2
Terminals for switch output (open collector)
3
Terminals PROFIBUS PA / FOUNDATION Fieldbus
4
Terminal for potential equalization line
5
Cable entries
6
Overvoltage protection module
A
2
B
6
Electrical connection
3
A0011341
57
