Component Location; Turf Groomer - Textron Jacobsen InCommand PGM 22 Technical/Repair Manual

Component Location

Turf Groomer

3
2
1
9
11
10
NOTE: Clutch knob and belt cover removed for clarity.
4157082 First Edition
8
1 Clutch Control Knob
2 Belt Cover
3 Turf Groomer Height
Adjuster (2)
4 Blade Assembly
5 Roller Assembly

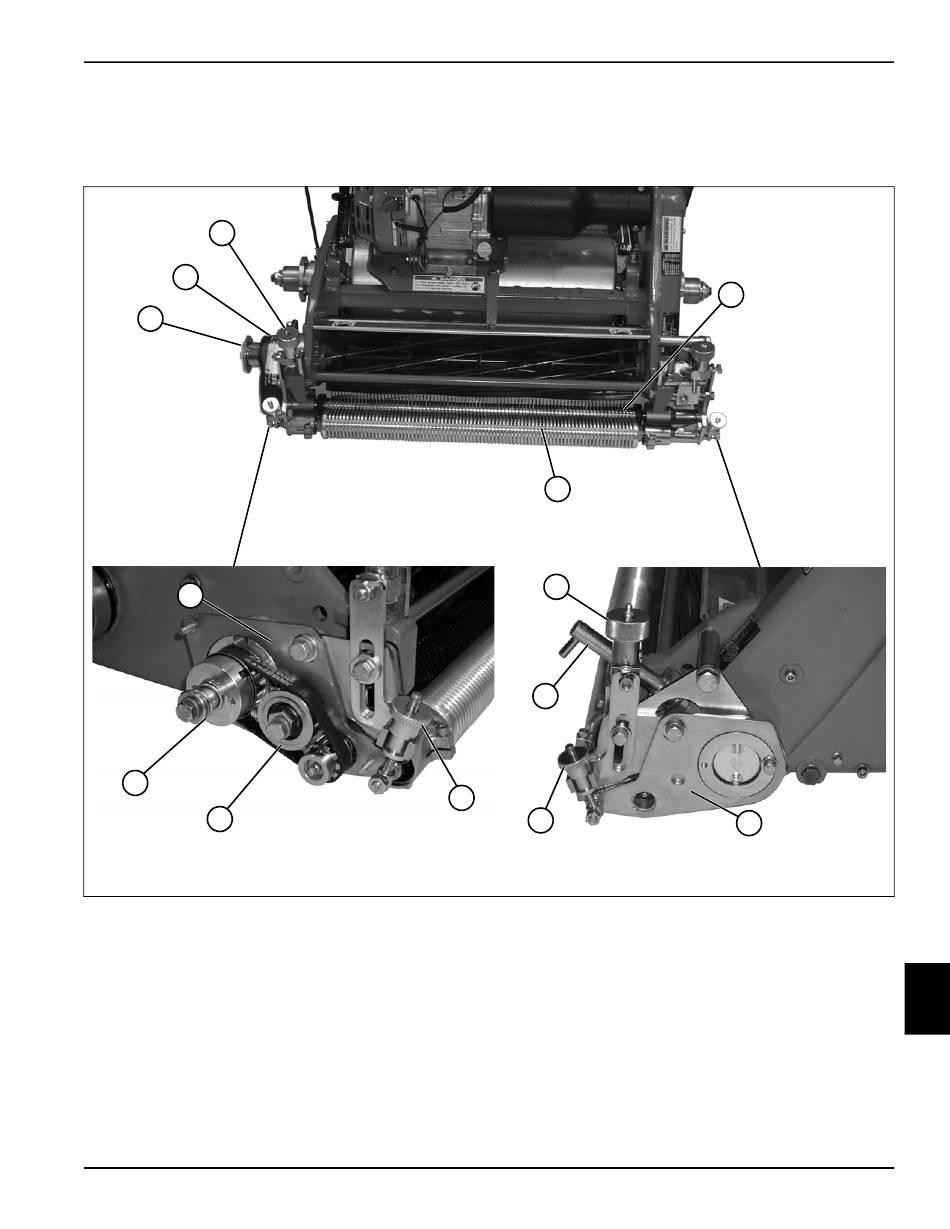

Figure 10-1
5
3
6
8
6 Reel Clutch Lever
7 Driven Assembly
8 Roller Height Adjuster (2)
9 Drive Assembly
10 Belt Tensioner Assembly
11 Clutch Assembly
ACCESSORIES
4
7
TN0308, 0309, 00310
10
10-3
