Driven Assembly - Textron Jacobsen InCommand PGM 22 Technical/Repair Manual

17
23
24

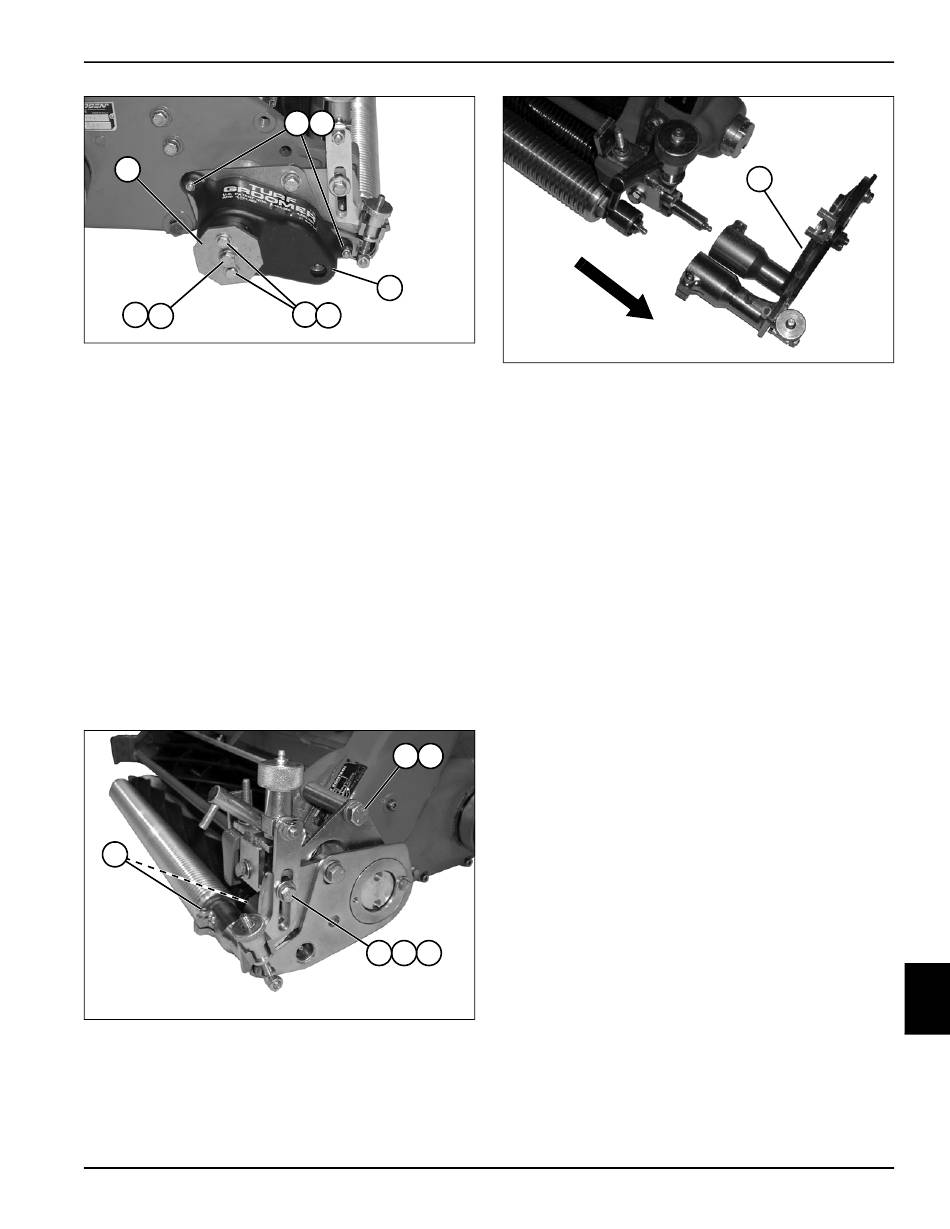

Figure 10-39
11. Install belt cover (20) using flat washers (18) and lock
nuts (19).
12. Install clutch control knob (17) using lock washers
(21) and hex head screws (22).
13. Install hex head screw (23) with lock washer (24).
14. Set height-of-cut. (See "Height-of-Cut Adjustment"
on page 8-14.)
15. Set turf groomer height-of-cut. (See "Turf Groomer
Height-of-Cut Adjustment" on page 10-7.)

Driven Assembly

Removal
See Figures 10-40 through 10-41.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-6.)
1
Figure 10-40
2. Loosen turf groomer and roller shaft set screws (1).
3. Remove hex head screw (2) and lock washer (3).
4. Remove hex head screw (4), lock washer (5), and
spacer (6).
4157082 First Edition
18 19
20
21
22
TN0311
2 3
4 5 6
TN0329
Figure 10-41
5. Remove driven assembly (7) from machine.
ACCESSORIES
7
TN0330
10
10-23
