Repair—Vertical Reel and
Soft-Touch Brush
Vertical Reel—Disassembly

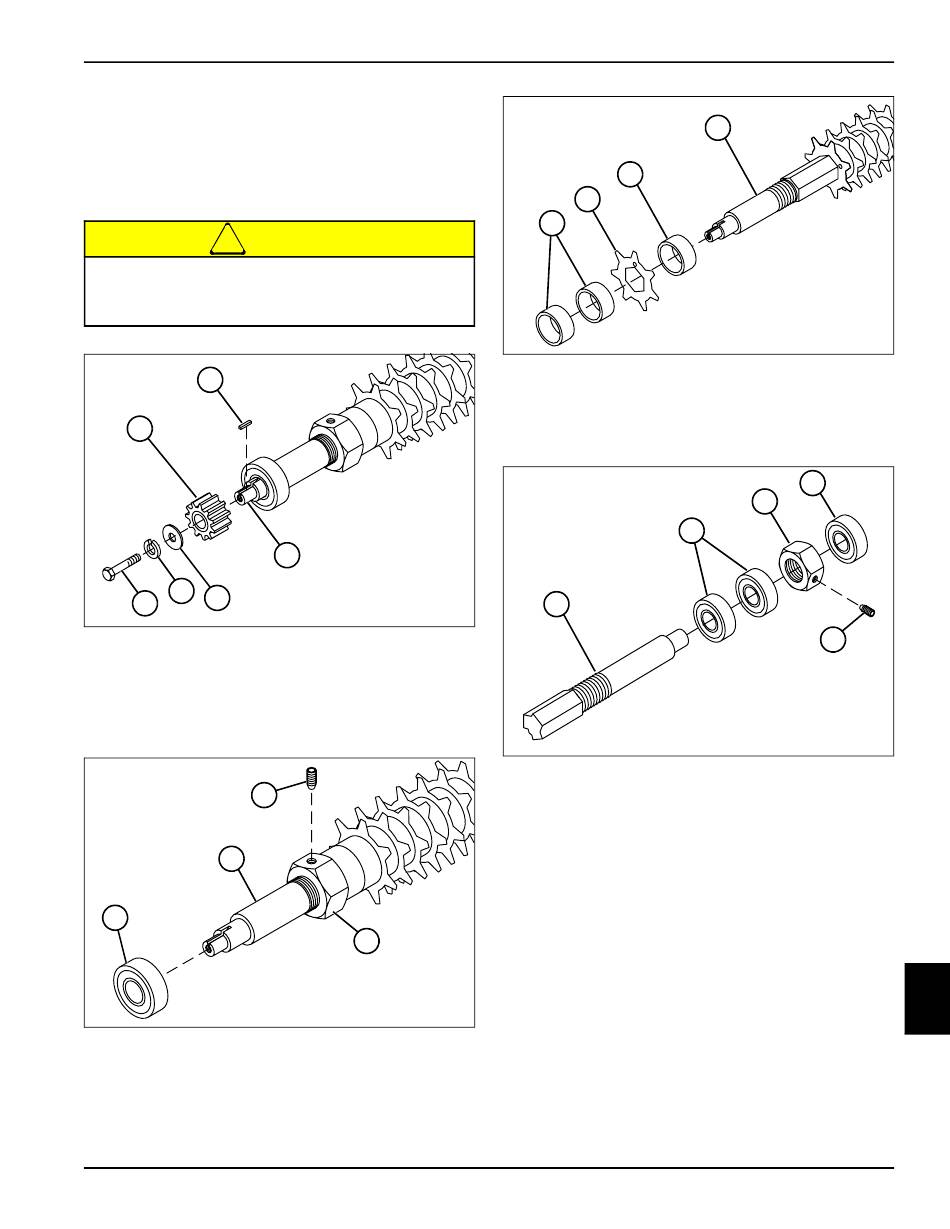

See Figures 10-56 through 10-59.
!
CAUTION
To prevent personal injury and damage to cutting
edges, handle the blade assembly with extreme
care.
2
1
5
4
6
Figure 10-56
1. Remove screw (6), lock washer (5), and flat washer
(4).
2. Remove gear (1) and key (2) from blade roller shaft
(3).
9
8
7
Figure 10-57
3. Remove bearing (7) from blade roller shaft (8).
4. Loosen set screw (9) and remove jam nut (10) from
blade roller shaft (8).
4157082 First Edition
3
TN0319
10
TN0320
13
12
11
Figure 10-58
5. Remove two spacers (11) from blade roller shaft (14).
6. Remove 39 blades (12) and 36 spacers (13) from
blade roller shaft (14).
15
Figure 10-59
7. Remove bearing (18) from blade roller shaft (15).
8. Measure and record the distance from the end of the
shaft to the face of the jam nut.
9. Loosen set screw (19) and remove jam nut (17) from
blade roller shaft (15).
10. Remove two spacers (16) from blade roller shaft (15).
ACCESSORIES
14
TN0321
18
17
16
19
TN0322
10-31
