Textron Jacobsen InCommand PGM 22 Technical/Repair Manual page 143

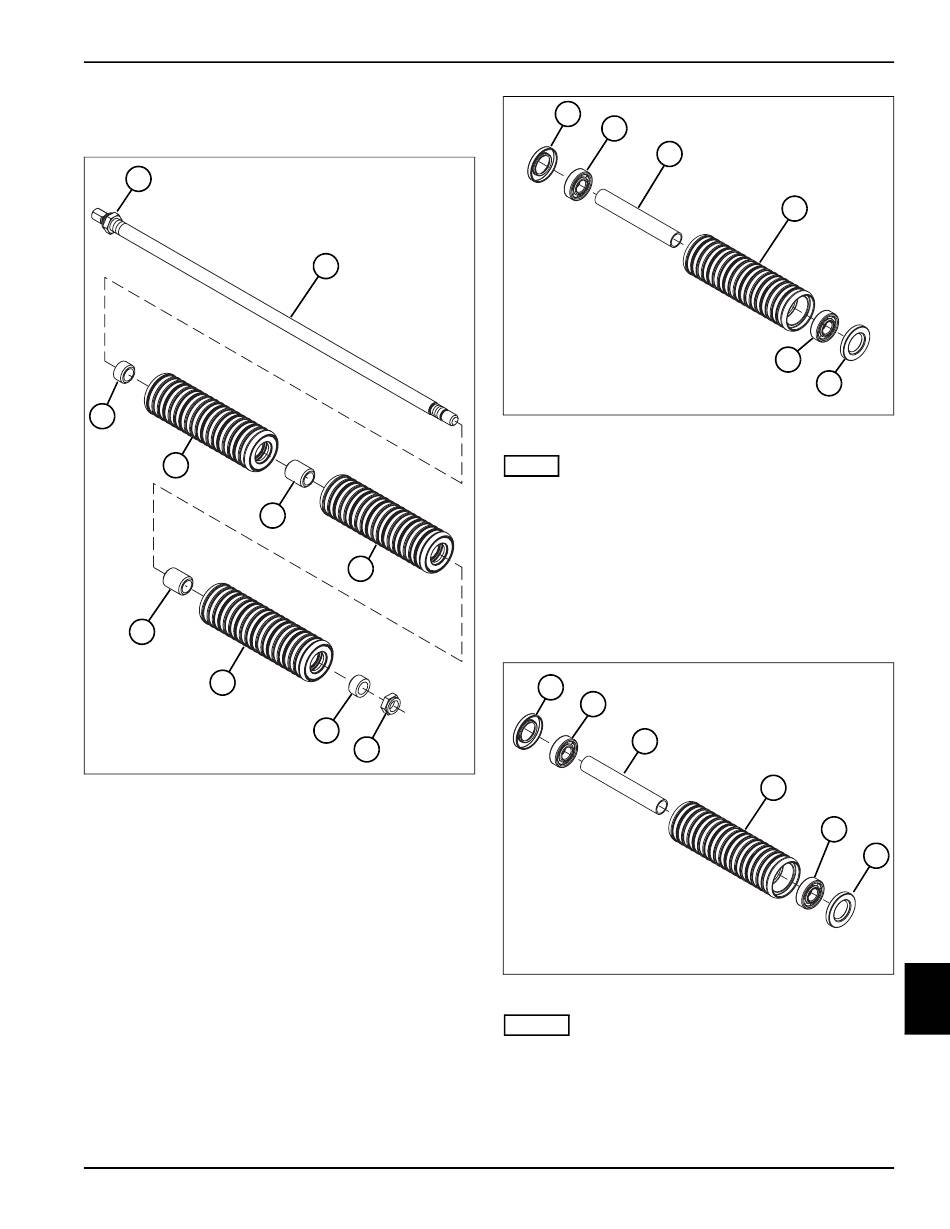

Disassembly—Grooved Segmented Roller
See Figures 10-22 and 10-23.
1
3
4
7
8
TN0251
Figure 10-22
1. Remove hex-jam, nylon-insert nut (10) from the roller
shaft (2) while holding the nut (1) at the other end of
the shaft.
2. Remove short spacer (9) and roller segment
assembly (8).
3. Remove long spacers (5 and 7) and roller segment
assemblies (4 and 6).
4. Remove short spacer (3) from roller shaft (2).
4157082 First Edition
2
5
6
9
10
TN0251
11
12
13
TN0252
Figure 10-23
NOTE
All three roller segment assemblies are disassembled in
the same way.
5. Remove grease seals (11 and 15), ball bearings
(12 and 16) and spacer (13) from the roller segment
(14).
Assembly—Grooved Segmented Roller
See Figures 10-24 and 10-25.
1
2
3
TN0252
Figure 10-24
NOTES
• All three roller segments are assembled in the same
way.
• Always use new grease seals for installation.
1. Install ball bearing (2) and a new grease seal (1) in
one end of the roller segment (4).
ACCESSORIES
14
16
15
TN0252
4
5
6
TN0252
10
10-15
