Front Roller

Disassembly and Assembly

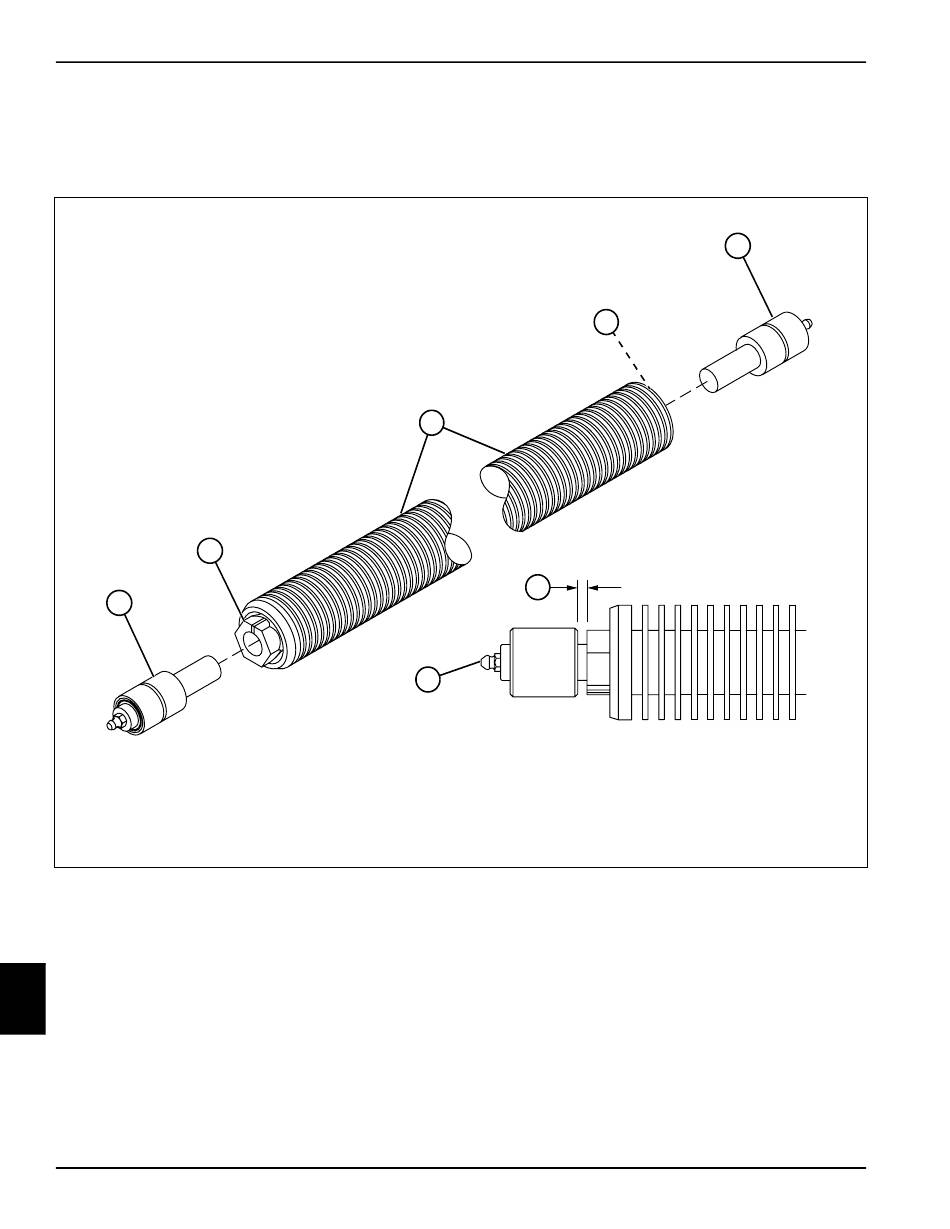

See Figure 10-46.
1
1. Measure and record the distance between the face of
the locking collar and the bearing face (4).
2. Loosen locking collar (2) and remove bearing
assembly (1).
10
3. Repeat steps 1 and 2 to remove the other bearing
assembly.
10-26
2
3
4
5
Figure 10-46
Assembly Notes
• Assemble roller (3) by reversing the order of
disassembly.
• Install the bearing assemblies to the same distance
as noted during removal.
• Apply NLGI Grade 2 grease to grease fitting (5) after
assembly is completed.
1
2
