HANDLE AND CONTROLS

Adjustments

Handle Height Adjustment

See Figure 6-1.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-6.)
1
2. Loosen screws (2) on both sides of mower and adjust
handle stops (1) until desired handle height is
obtained.
6
3. Tighten screws (2).

Repair

Handle Cover

Removal
See Figures 6-2 and 6-3.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-6.)
6-2
2

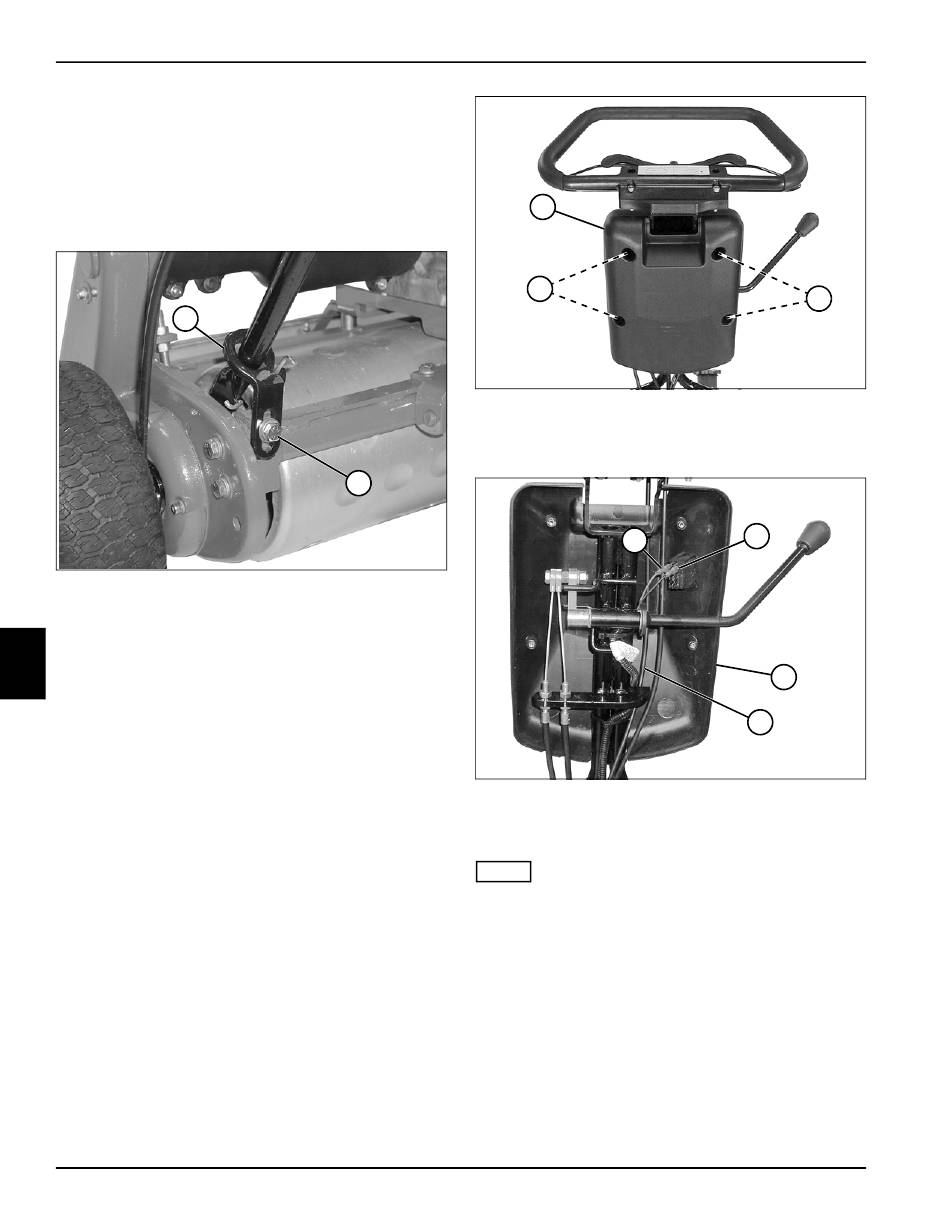

Figure 6-1
1
2
2. Remove four socket-head screws (2) and remove
rear half of cover (1).
TN0023
3. Remove throttle cable (6). (See "Throttle Cable" on
page 3-5.)
NOTE
Record location of wires before disconnecting.
4. Disconnect E-stop switch wires (3 and 4) and remove
front half of cover (5).
Figure 6-2
4
3
5
6
Figure 6-3
