Soft-Touch Brush—Disassembly and
Assembly

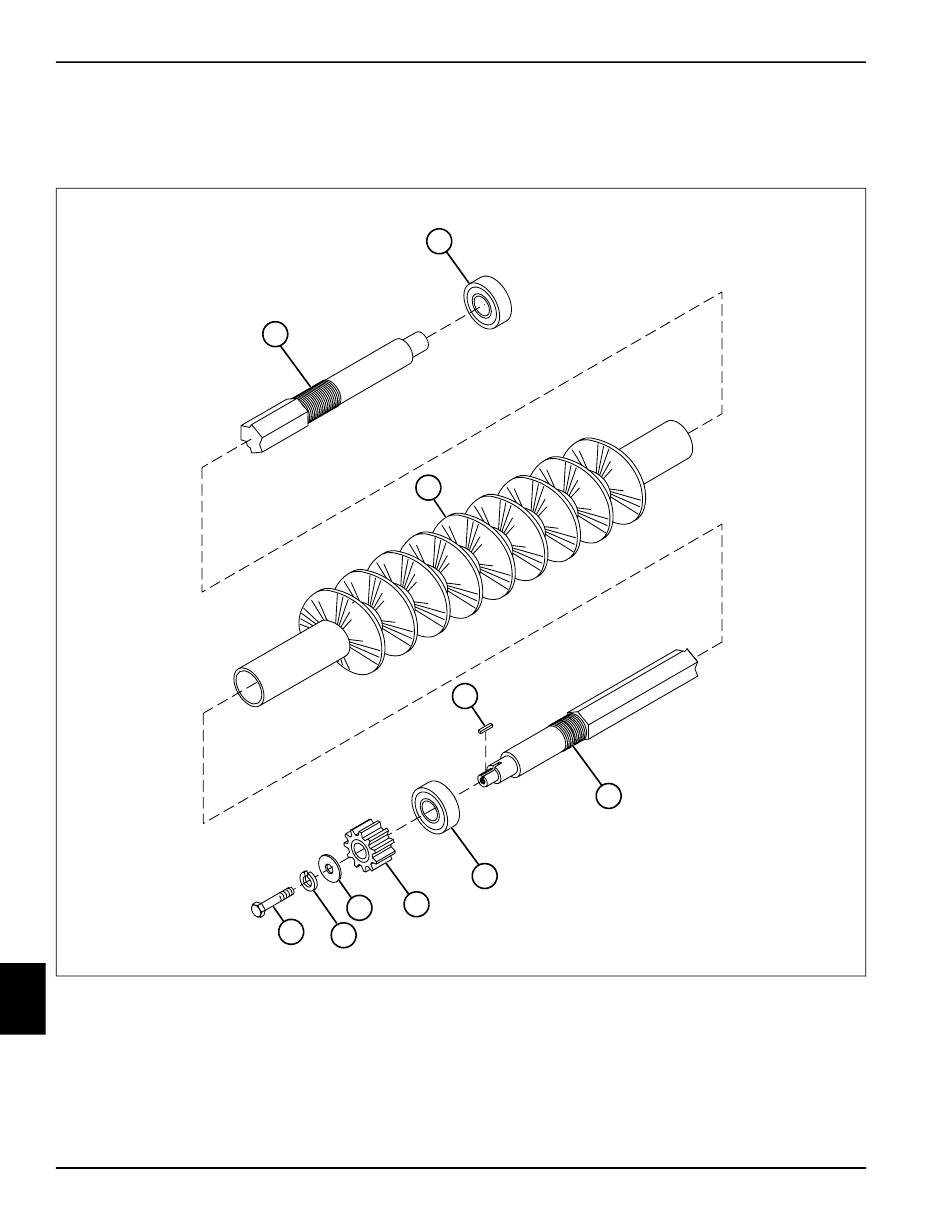

See Figure 10-65.
10
Disassembly Note
• Use a knife-edge puller to remove bearing (2) from
shaft (1).
10-34
2
1
3
5
6
8
7
1 Shaft
2 Bearing (2) (Press Fit)
3 Brush Assembly
4 Key
Figure 10-65
4
1
2
5 Gear
6 Washer
7 Lock Washer
8 Screw
Assembly Note
• Bearing (2) is press fit. Use a press to install bearing
(2) onto shaft (1).
TN0327
