Textron Jacobsen InCommand PGM 22 Technical/Repair Manual page 138

ACCESSORIES

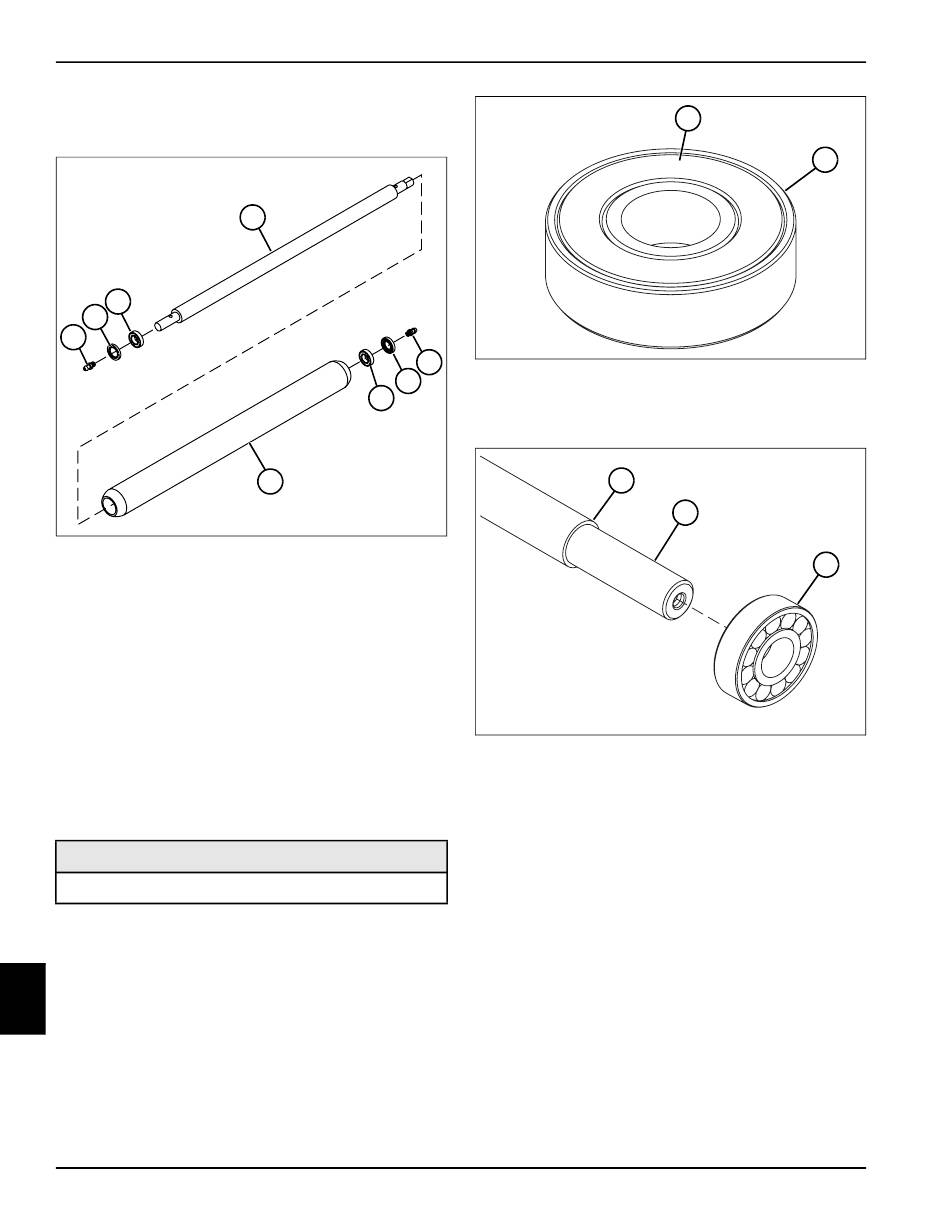

Disassembly—Solid Rollers
See Figure 10-12.
3
2
1
1. Remove grease fittings (1 and 5) from the roller shaft
(4).
2. Support one end of the roller (8), allowing enough
free space for seal (6) and bearing (7) to exit the
roller (8).
3. Apply pressure to the other end of the roller shaft (4)
until the seal (6) and bearing (7) are clear of the roller
(8).
4. Repeat steps 2 and 3 to remove the seal (2) and
bearing (3) from the other end of the roller (8).
Assembly—Solid Rollers
See Figures 10-13 through 10-17.
Required Materials
®
Permatex Anaerobic Sealer (or equivalent)
10
10-10
4
7
8
Figure 10-12
5
6
1. Remove the shield (1) from one side of each new
bearing (2).
TN0312
2. Pack the bearing (5) with a good grade of
general-purpose grease before installation.
3. Install bearing (5) on the roller shaft (4) with the
shielded side toward the step (3) on the shaft. Press
the bearing on the shaft until it rests against the step.
1
Figure 10-13
3
4
Figure 10-14
4157082 First Edition
2
TN0314
5
TN0315
