Repair

Grass Shield

Removal and Installation

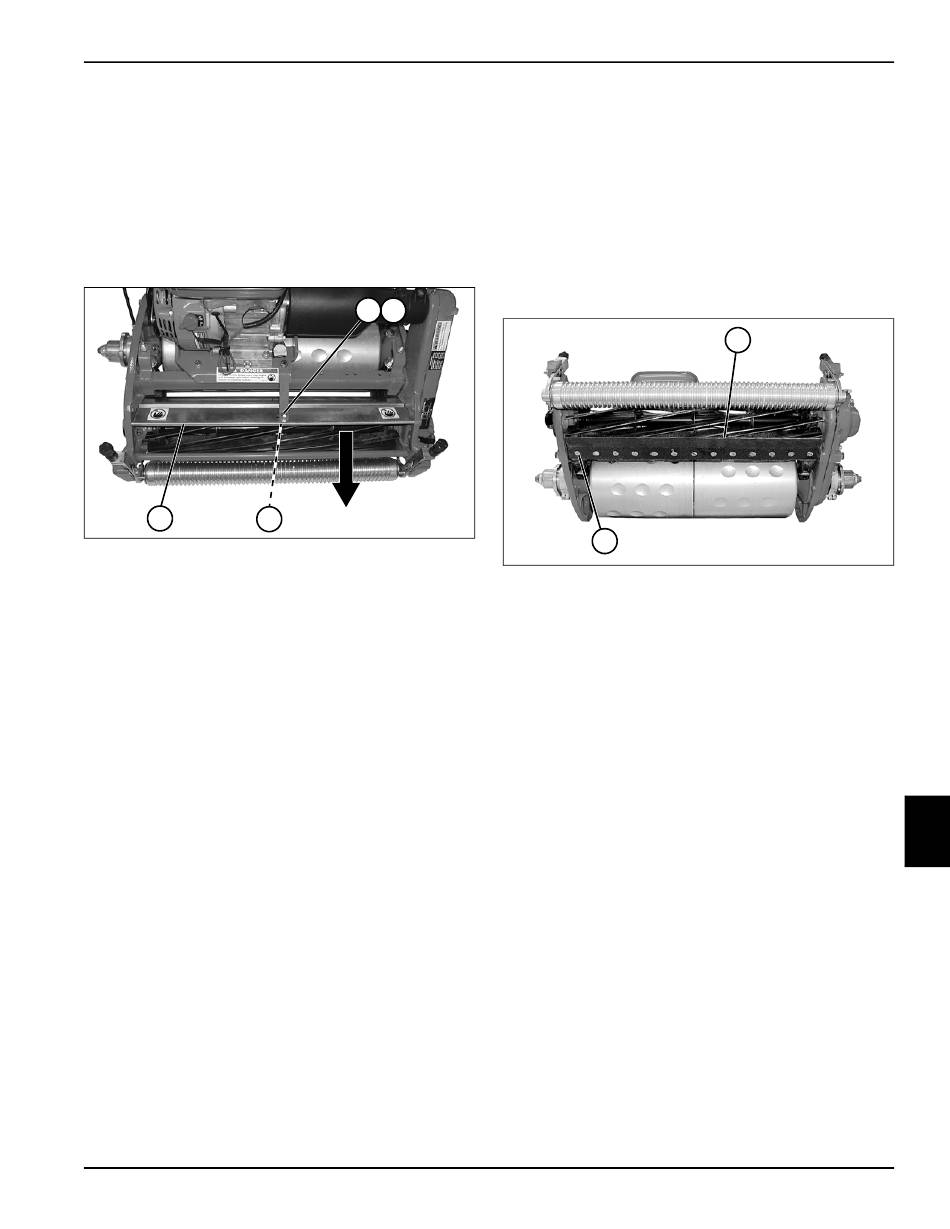

See Figure 8-10.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-6.)
4
Figure 8-10
2. Remove nut (1), lock washer (2), and screw (3).
3. Pull grass shield (4) forward.
Installation Note
Install the grass shield by reversing the order of removal.
4157082 First Edition
1 2
3
TN0048

Bedknife

Removal and Installation
See Figure 8-11.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-6.)
2. Tip mower back on traction drum or tires. Do not
leave the mower tipped back for an extended length
of time or oil may migrate into the combustion
chamber.
2
Figure 8-11
3. Remove 13 flat-head screws (2) and remove the
bedknife (1).
Installation Note
Bedknife is installed by reversing order of removal.
CUTTING UNIT
1
TN0035
8
8-17
