Textron Jacobsen InCommand PGM 22 Technical/Repair Manual page 119

Disassembly and Assembly

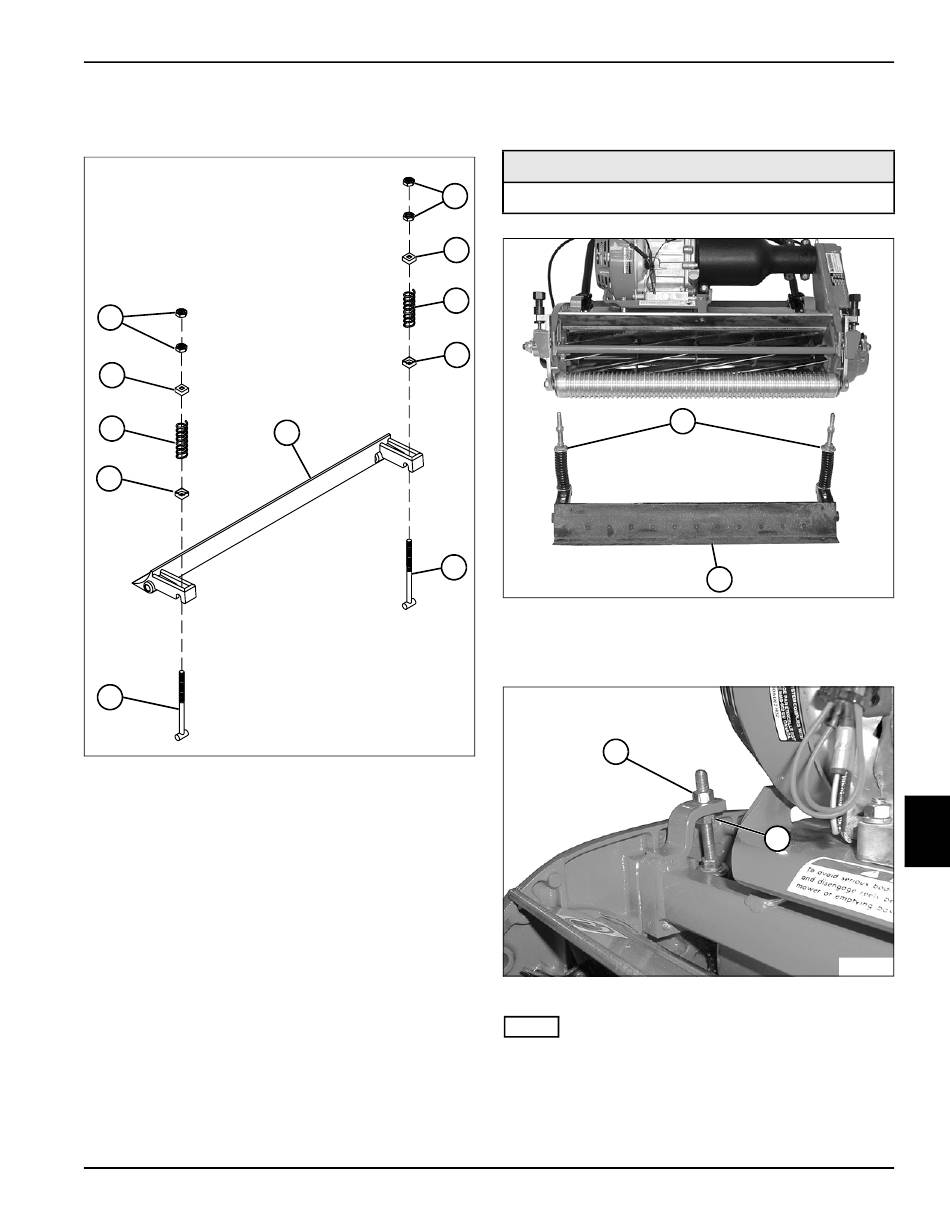

See Figure 8-16.
1
2
3
2
5
1 Nut (4)
2 Cups (4)
3 Spring (2)
Figure 8-16
4157082 First Edition
1
2
3
2
4
5
TN0038
4 Bedknife Shoe
5 Bedknife Adjuster Bolt (2)
Installation
See Figures 8-17 through 8-19.
Required Materials
Anti-Seize Compound
1
Figure 8-17
1. Install the bedknife shoe assembly (2) with
adjustment rod assemblies (1).
3
Figure 8-18
NOTE
Steps 2 through 4 apply to both sides of the mower.
2. Install nut (3).
3. Turn nut (4) clockwise until the bedknife makes light
contact with the reel.
CUTTING UNIT
2
TN0156
4
TN0030
8-19
8
