CUTTING UNIT
NOTES
• Apply anti-seize compound to the threads of the
bedknife shoe mounting screws before installing.
• Install shims (if any) in the same locations as
recorded during removal.
4. Install the bedknife shoe mounting screw (5),
shakeproof cone washer (6), and shim(s) (7) in the
frame and bedknife shoe.
5. Adjust bedknife. (See "Bedknife-to-Reel Adjustment"
on page 8-13.)
8
8-20
5 6 7

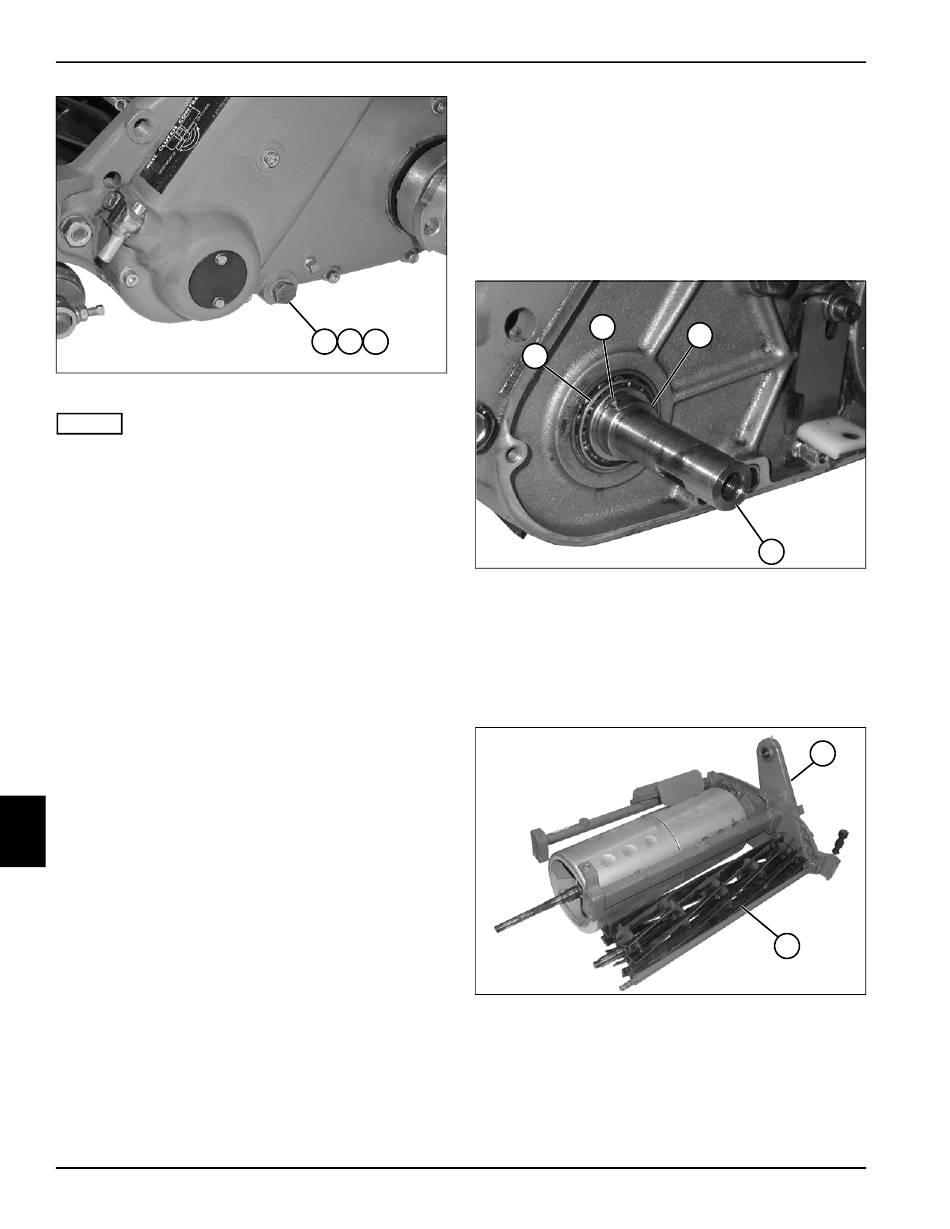

Figure 8-19

Reel Assembly

Removal
See Figures 8-20 and 8-21.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-6.)
2. Remove drive chains. (See "Drive Chains" on
page 5-9.)
1
TN0037
3. Using a punch, remove pin (2) from the collar (3).
4. Remove the collar (3) from the reel shaft (4).
5. Remove reel bearing (1) from reel shaft (4).
6. Remove the right frame. (See "Right Frame" on
page 5-17.)
2
3
4
Figure 8-20
Figure 8-21
4157082 First Edition
TN0095
5
6
TN0121
