POWER TRAIN
5 6
12
11
NOTE
Record the location and number of shims used (if any) to
ensure correct installation.
5. Remove the bedknife shoe mounting screw (8),
shake-proof cone washer (9) and shim(s) (10) from
the frame and bedknife shoe.
5
6. Remove screw (5), lock washer (6), retainer (12), and
reel clutch lever (7) from chain cover (11).
5-6
7
8 9 10

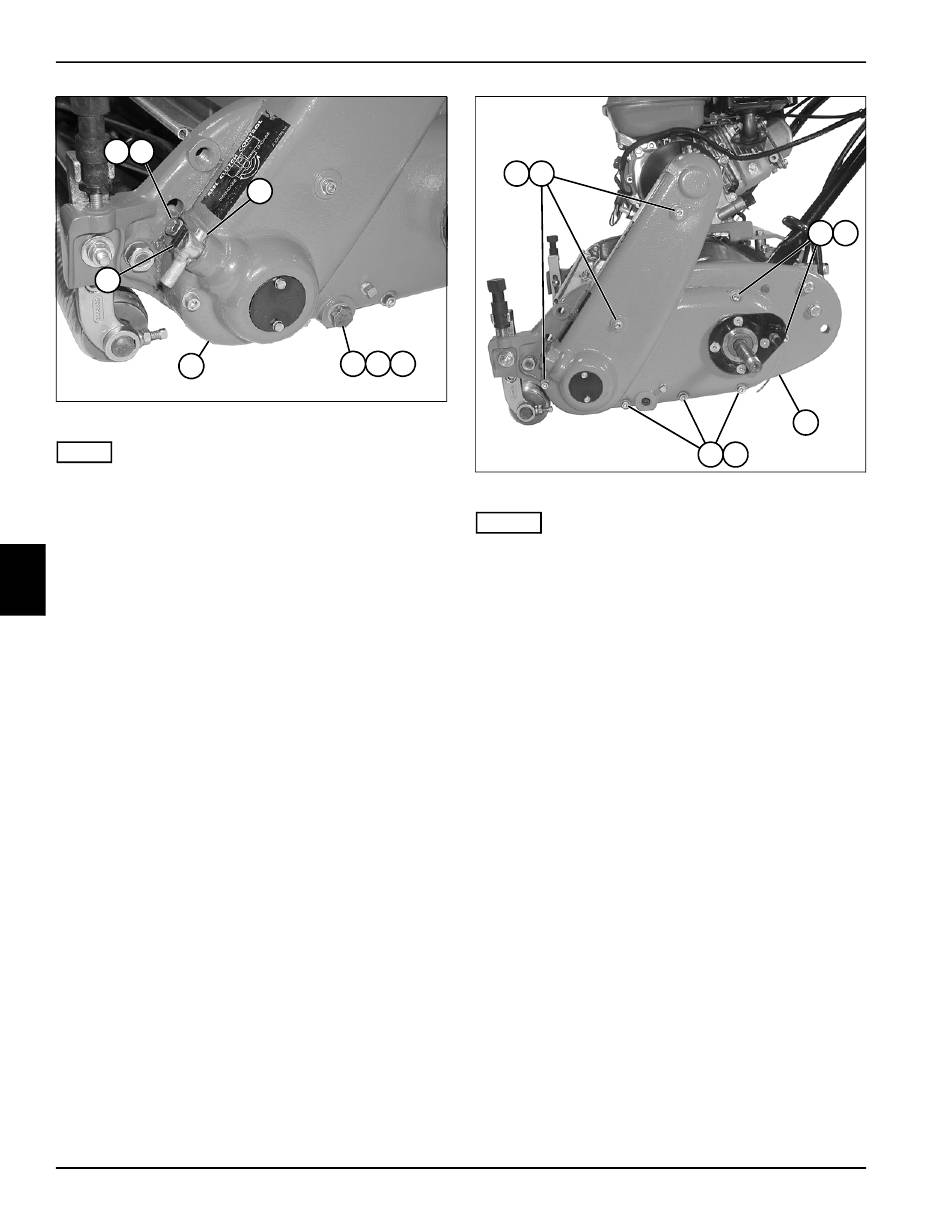

Figure 5-8
13 14
TN0031
NOTES
• Place a suitable container under the cover and drive
case to catch oil.
• Dispose of used oil in compliance with all applicable
regulations.
7. Remove three 1/4-20 x 2-1/4" socket-head screws
(13) and washers (14) from cover (17).
8. Remove five 1/4-20 x 1-1/2" socket-head screws (15)
and washers (16) from cover (17).
9. Remove cover (17).
15
17
15 16
Figure 5-9
