Right-Side Gear Drive—Disassembly
and Assembly
See Figure 10-55.
Required Materials
Sunray DX-671or Gulf Supreme #0 Grease
2
3
1
1 Knob
2 5/16-18 x1-3/4" Hex Bolt
3 5/16" Lock Washer
4 Gear Box Cover
5 Ball
6 Gear Box Gasket
7 Set Screw
8 Spring
9 3/8" Flat Washer
10 3/8" Lock Washer
11 Shifter Shaft
12 3/16 x 1-1/4" Roll Pin
10
Assembly Notes
• Apply Sunray DX-671 or Gulf Supreme #0 grease
around gears and bearings, then fill gear box
approximately 1/3 full before installing cover.
• Install new gear box gasket (6) during assembly.
10-30
5
6
4
7
8
17
9
14
10 15
13
12
11
48
13 Internal Retaining Ring
14 Bearing
15 19-Tooth Shifter Gear
16 External Retaining Ring
17 Locking Nut
18 1/4-20 x5/8" Socket-Head Screw
19 Spacer
20 Stud
21 Height Adjusting Nut
22 Adjuster Pivot Bracket
23 Gear Box Housing
24 5/16" Flat Washer
29
27
26
28
24
22
25
23
21
20
19
41
42
18
16
43
45
44
47
46
25 5/16-18 Hex Nut
26 24 Tooth Drive Gear
27 3/32 x 1-3/4" Cotter Pin
28 3/16 x 1-1/4" Roll Pin
29 Right-Side Locking Stud
30 Grease Fitting
31 Right-Side Frame
32 Stud
33 Roller Adjuster
34 5/16-18 x 1-1/2" Hex Bolt
35 5/16-18 x 1-1/2" Carriage Bolt
36 Right-Side Roller Bracket
Extension

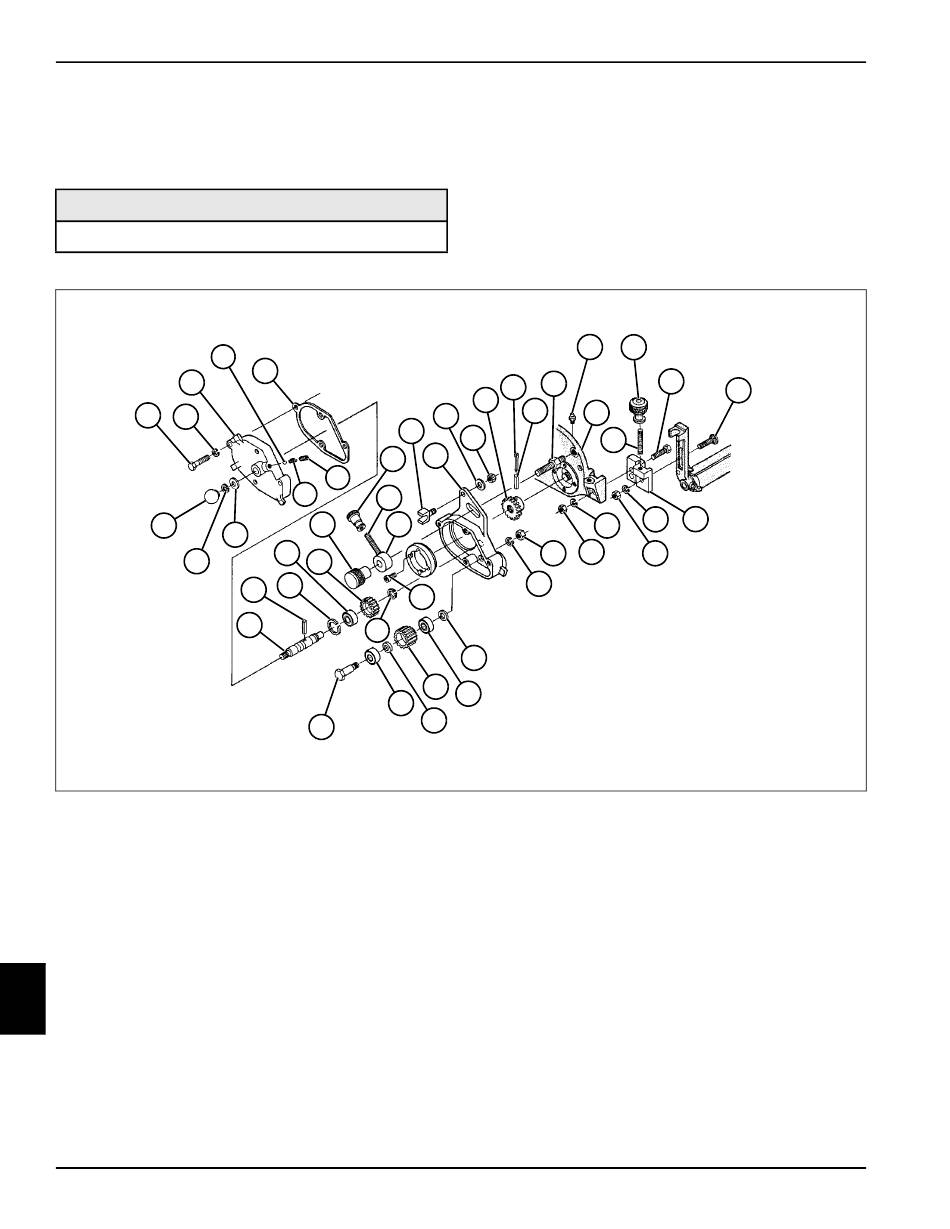

Figure 10-55
• Apply lithium grease NLGI Grade 2 to the channel of
roller bracket extension (36) before installing roller.
• Apply lithium grease NLGI Grade 2 to studs (20 and
32) before installing adjusters.
• Apply lithium grease NLGI Grade 2 to grease fitting
(30) after assembly.
30
33
34
35
31
32
37 36
39
40
38
37 5/16" Lock Washer
38 5/16-18 Hex Nut
39 5/16" Lock Washer
40 5/16-18 Hex Nut
41 3/8-16 Hex Nut
42 3/8" Lock Washer
43 Washer
44 Bearing
45 18-Tooth Idler Gear
46 Spacer
47 Bearing
48 Shoulder Bolt
