Textron Jacobsen InCommand PGM 22 Technical/Repair Manual page 121

!
CAUTION
To prevent personal injury and damage to the
cutting edges, handle the reel with extreme care.
7. Remove the reel (6) from the frame (5).
Installation

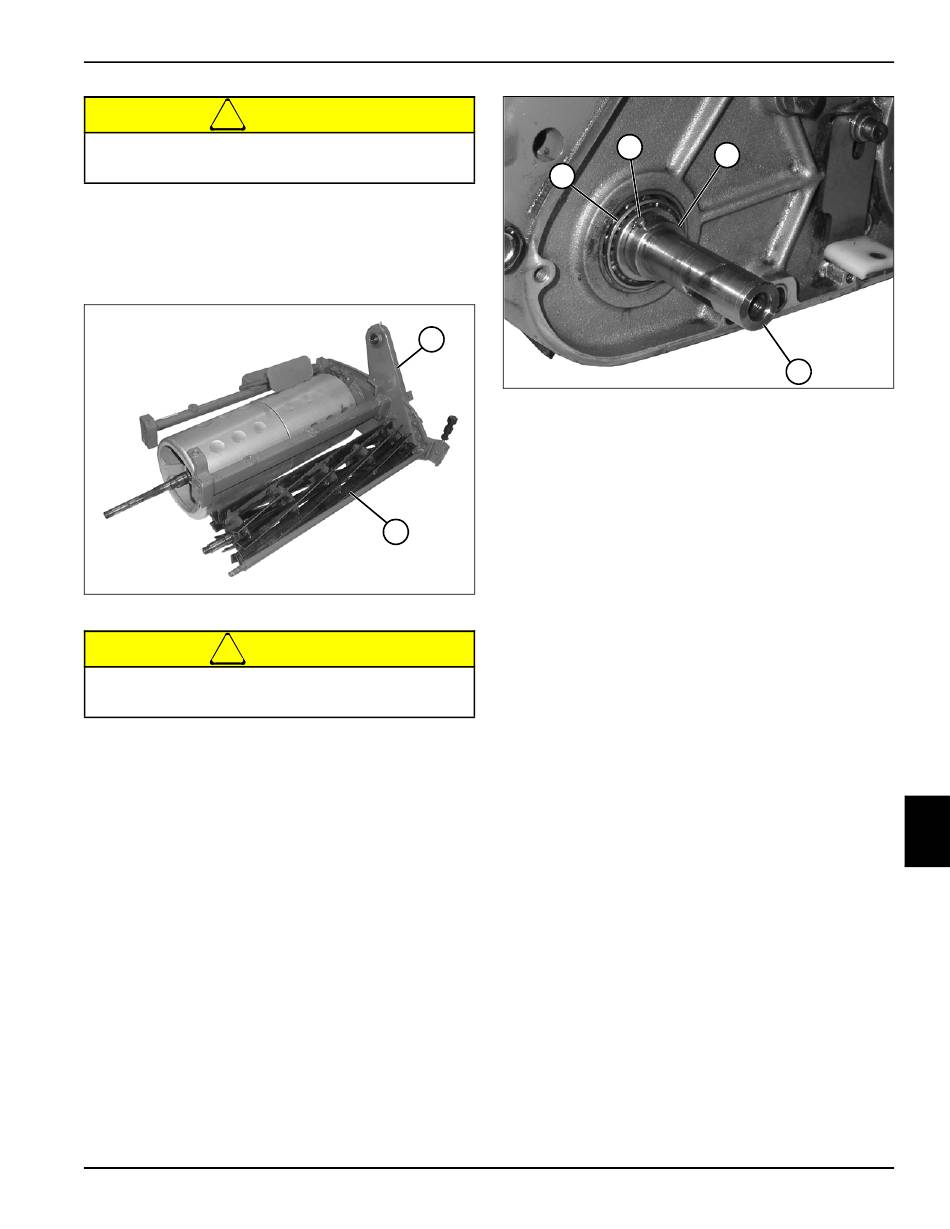

See Figures 8-22 and 8-23.
Figure 8-22
!
CAUTION
To prevent personal injury and damage to the
cutting edges, handle the reel with extreme care.
1. Install the reel (2) into the frame (1), positioning the
longer end on the reel shaft (3) toward the chain
case.
2. Install the right frame. (See "Right Frame" on
page 5-17.)
4157082 First Edition
4
1
3. Install the reel bearing (4) on the left (drive) side of
the reel shaft (7).
4. Install the collar (6) on the reel shaft (7) and secure
using a pin (5).
5. Install the drive chains. (See "Drive Chains" on
page 5-9.)
2
6. Adjust the reel bearing pre-load. (See "Reel Bearing
Pre-Load Adjustment" on page 8-15.)
TN0121
CUTTING UNIT
5
6
7
Figure 8-23
TN0095
8
8-21
