ACCESSORIES
Disassembly and Assembly

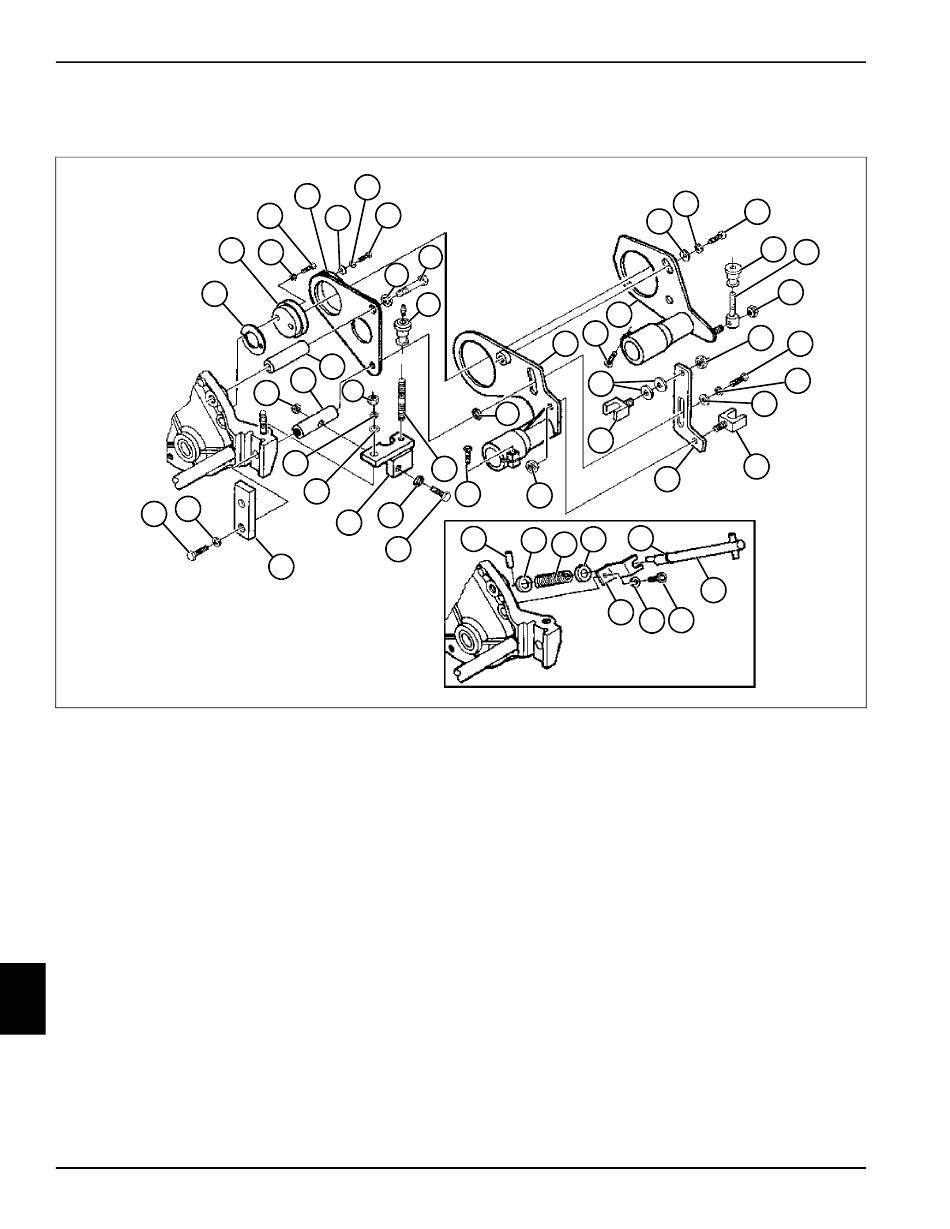

See Figure 10-42.
1
1 5/16-18 x 1-1/2" Hex Head
Screw
2 5/16" Lock Washer
3 Strap
4 5/16" Flat Washer
5 5/16" Lock Washer
6 5/16" Lock Nut
7 Gasket
8 Spacer
9 Pivot
10 Spacer
11 5/16-18 Hex Nut
12 #8 Lock Washer
13 #8-32 x 3/8" Hex Head Screw
14 Plate
Installation Notes
• Apply a small amount of NLGI Grade 2 grease to
10
studs (22 and 40) before installing height adjuster
knobs (20 and 41).
• Install new gasket (7).
• Apply NLGI Grade 2 grease to height adjuster knob
grease fitting after assembly is complete.
10-24
16
14
13
15
9
12
7
10
8
11
6
5
4
2
23
3
15 1/4" Flat Washer
16 1/4" Lock Washer
17 1/4-20 x 1/2" Hex Head Screw
18 1/2" Lock Washer
19 1/2-13 x 4" Hex Head Screw
20 Height Adjuster Knob
21 5/16" Flat Washer
22 Stud
23 Bar
24 5/16" Flat Washer
25 5/16-18 x 1-1/2" Hex Head
Screw
26 1/4-20 x 3/4" Hex Head Screw
27 5/16" Lock Nut
28 Left-Side Roller Bracket
17
19
18
20
28
21
22
26
27
24
45
46 47 46
25
29 1/4-20 x 5/8" Socket-Head
Screw
30 Left-Side Mower Bracket
31 5/16" Flat Washer
32 Adjustment Pivot Bracket
33 Height Adjustment Bracket
34 Adjustment Pivot Bracket
35 Spacer
36 5/16" Lock Washer
37 5/16-18 x 1-1/4" Hex Head
Screw
38 5/16" Lock Nut
39 5/16" Lock Nut
40 Stud
41 Height Adjuster Knob
Figure 10-42
43
42
44
41
30
29
38
31
35
32
34
33
51
52
48 49 50
42 3/8-16 x 1" Hex Head Screw
43 3/8" Lock Washer
44 Special Washer
45 Pin
46 Cup Washer
47 Spring
48 Clamp
49 1/4" Lock Washer
50 1/4-20 x 3/4" Socket-Head
Screw
51 O-Ring
52 Shifter Shaft
4157082 First Edition
40
39
37
36
