Differential Assembly

Disassembly and Assembly

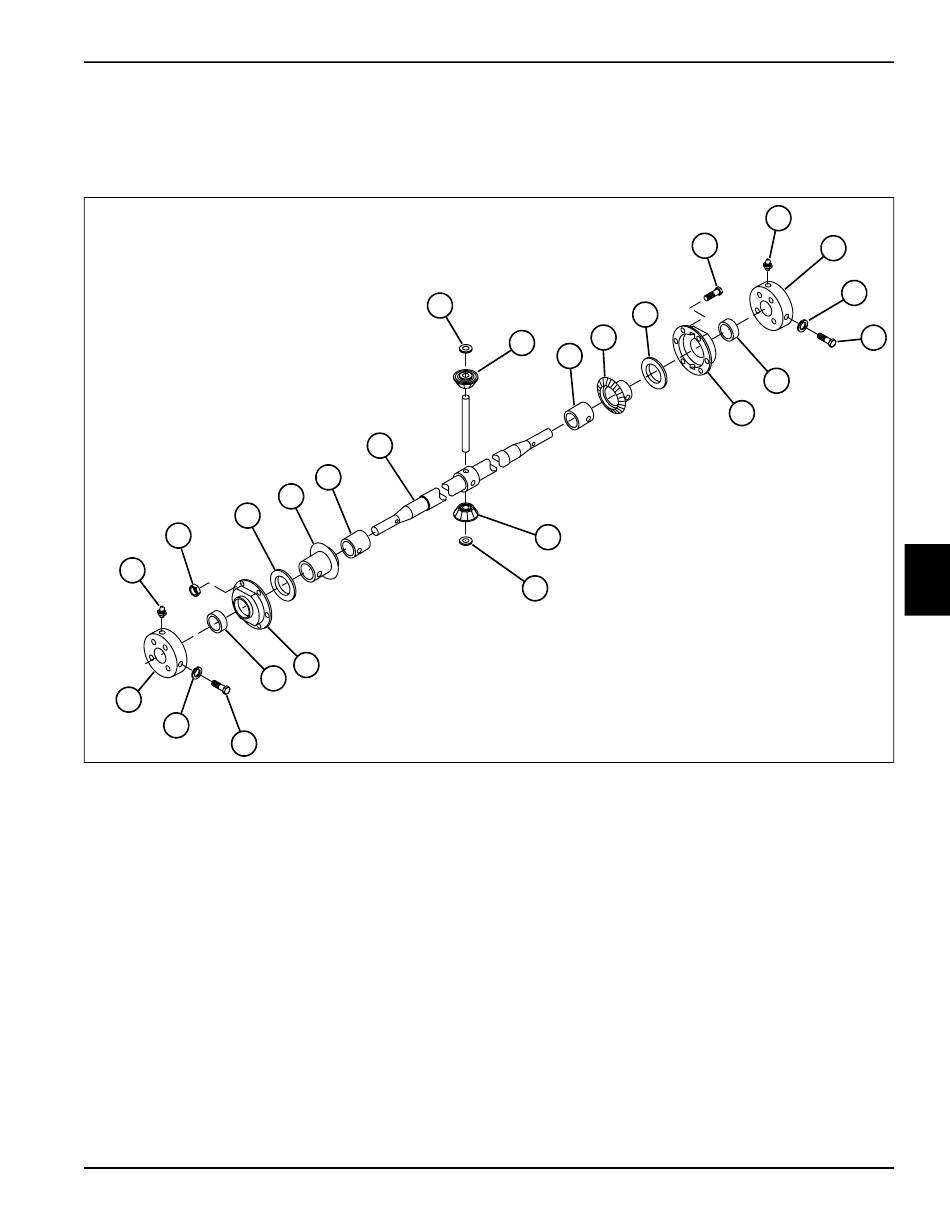

See Figure 5-75.
5
13
7
8
9
10
1 Pinion Thrust Washer (2)
2 Pinion (2)
3 Bushing (2)
4 Differential Gear (2)
Assembly Notes
• Apply lithium grease NLGI Grade 2 to the pinions (2)
and differential gears (4) before assembly.
• Apply lithium grease NLGI Grade 2 grease to grease
fitting (7) after assembly.
4157082 First Edition
1
14
3
4
12
11
5 Thrust Washer (2)
6 Hex-Head Screw (6)
7 Grease Fitting (2)
8 Drum Hub (2)
4
2
3
2
1
9 Heavy Lock Washer (6)
10 Hex-Head Screw (6)
11 Bushing (2)
12 Differential Housing (2)
Figure 5-75
POWER TRAIN
7
6
5
11
12
13 Lock Nut (6)
14 Drum Shaft
8
9
10
5
TN0136
