Figure 5-23
10. Remove key (18) from clutch/input shaft (19).
Installation

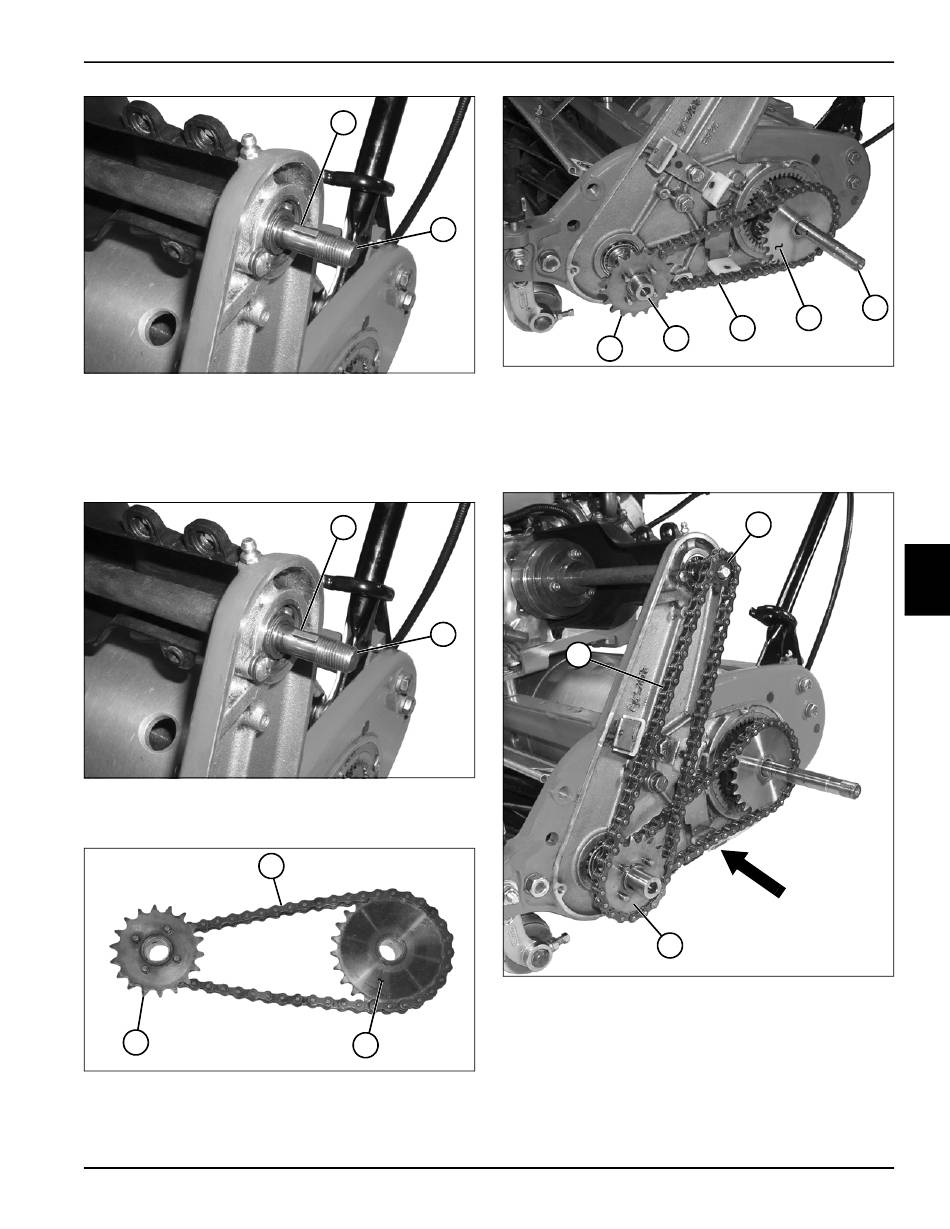

See Figures 5-24 through 5-32.
Figure 5-24
1. Install key (1) in the clutch/input shaft (2).
5
Figure 5-25
2. Assemble the reel-to-traction drum shaft chain (3),
drive pinion sprocket (4), and reel sprocket (5).
4157082 First Edition
18
19
TN0096
1
2
TN0096
3
4
TN0133
7
6
Figure 5-26
3. Install the reel-to-traction chain (8) and sprocket
assembly by sliding the drive pinion sprocket (9) onto
the traction drum shaft (10) until the reel sprocket (6)
is started on the reel shaft (7).
11
13
Figure 5-27
4. Install the clutch/input shaft sprocket (12) on the
PTO-to-reel chain (11), and install the chain over the
reel sprocket (13).
5. Slide the both chains and sprockets toward the chain
case until the sprockets are fully seated.
POWER TRAIN
