POWER TRAIN

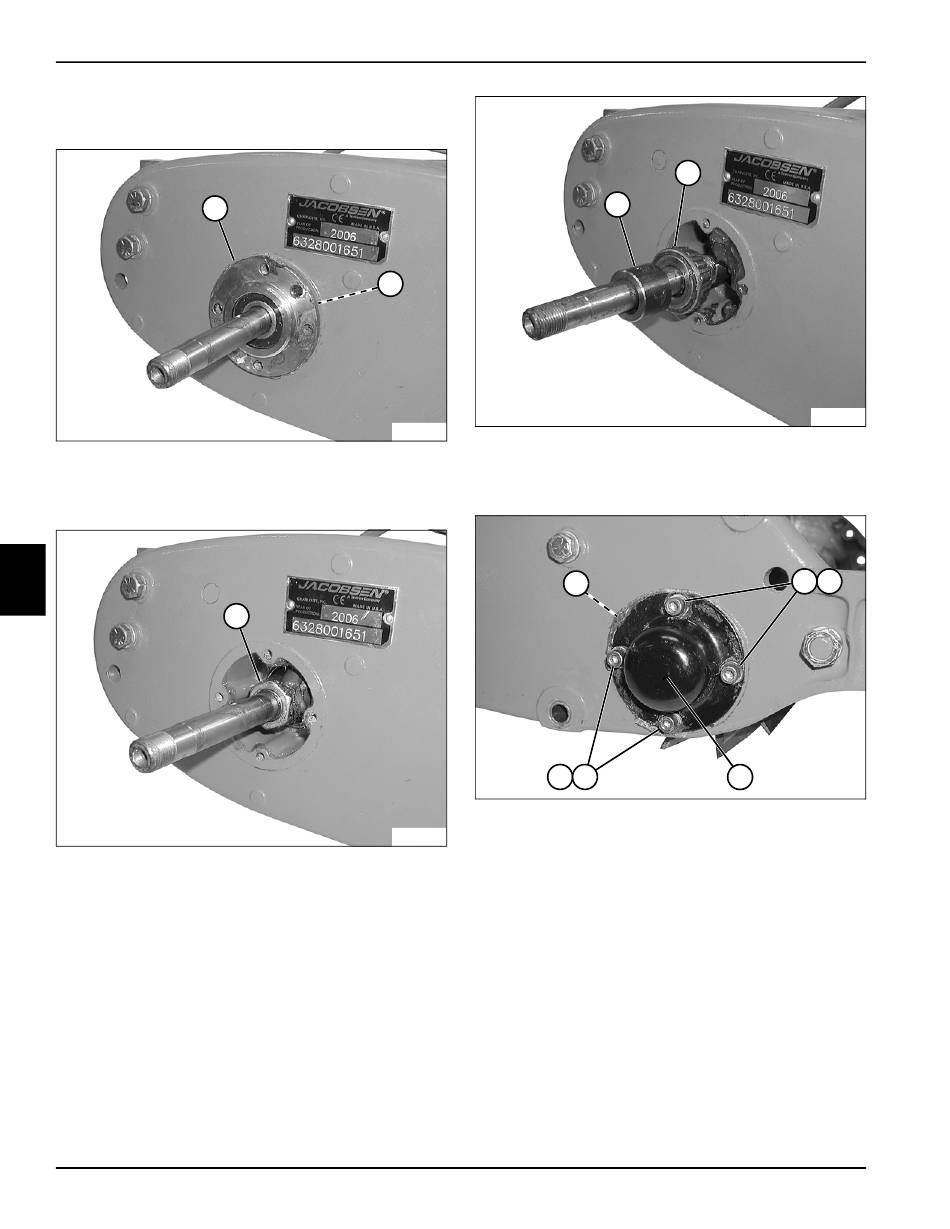

8. Remove four flat socket-head screws (5) and right
brake mounting bracket (4).
9. Remove the bearing housing assembly (6) and
gasket (7).
5
10. Remove nut (8) from the traction drum shaft.
5-18
6
7
Figure 5-49
8
Figure 5-50
TN0116
11. Remove spacer (9) and bearing (10) from the traction
drum shaft.
11
12 13
TN0117
12. Remove four socket-head screws (12), lock washers
(13), reel cover (14), and gasket (11).
10
9
Figure 5-51
14
Figure 5-52
4157082 First Edition
TN0118
12 13
TN0111
