Throttle Paddle - Textron Jacobsen InCommand PGM 22 Technical/Repair Manual

7 8

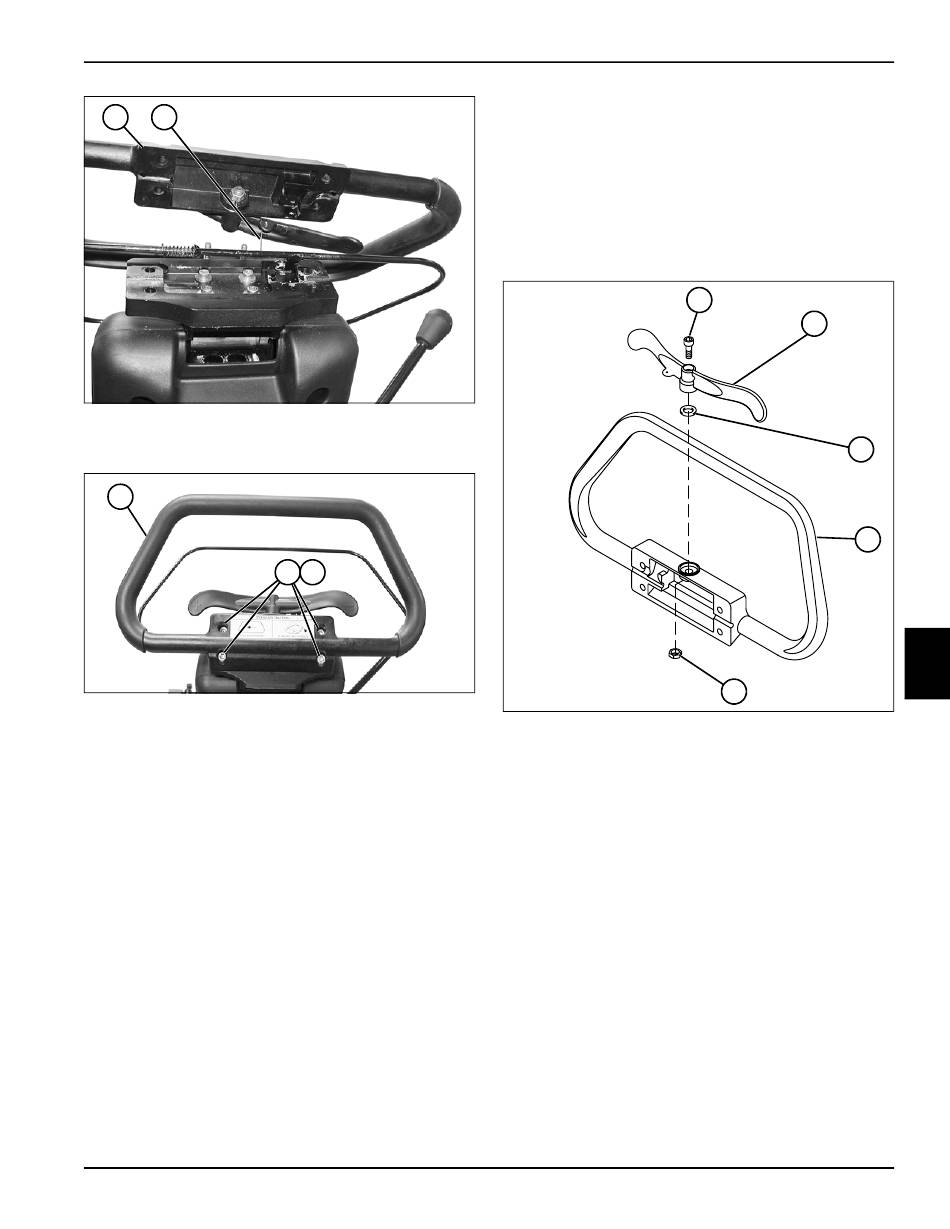

Figure 6-19
3. Connect throttle cable (8) to handle (7)
9
Figure 6-20
4. Install handle (9) on tilt plate, using four socket-head
screws (10) and four nuts (11).
4157082 First Edition
TN0060
10 11
TN0059
HANDLE AND CONTROLS

Throttle Paddle

Removal and Installation
See Figure 6-21.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-6.)
2. Remove handle cover. (See "Handle and OPC Bail"
on page 6-6.)
Figure 6-21
3. Remove nut (5), socket-head screw (1), throttle
paddle (2), and spring washer (3) from handle cover
(4).
Installation Note
Install throttle paddle by reversing the order of removal.
1
2
3
4
5
TN0063
6-7
6
