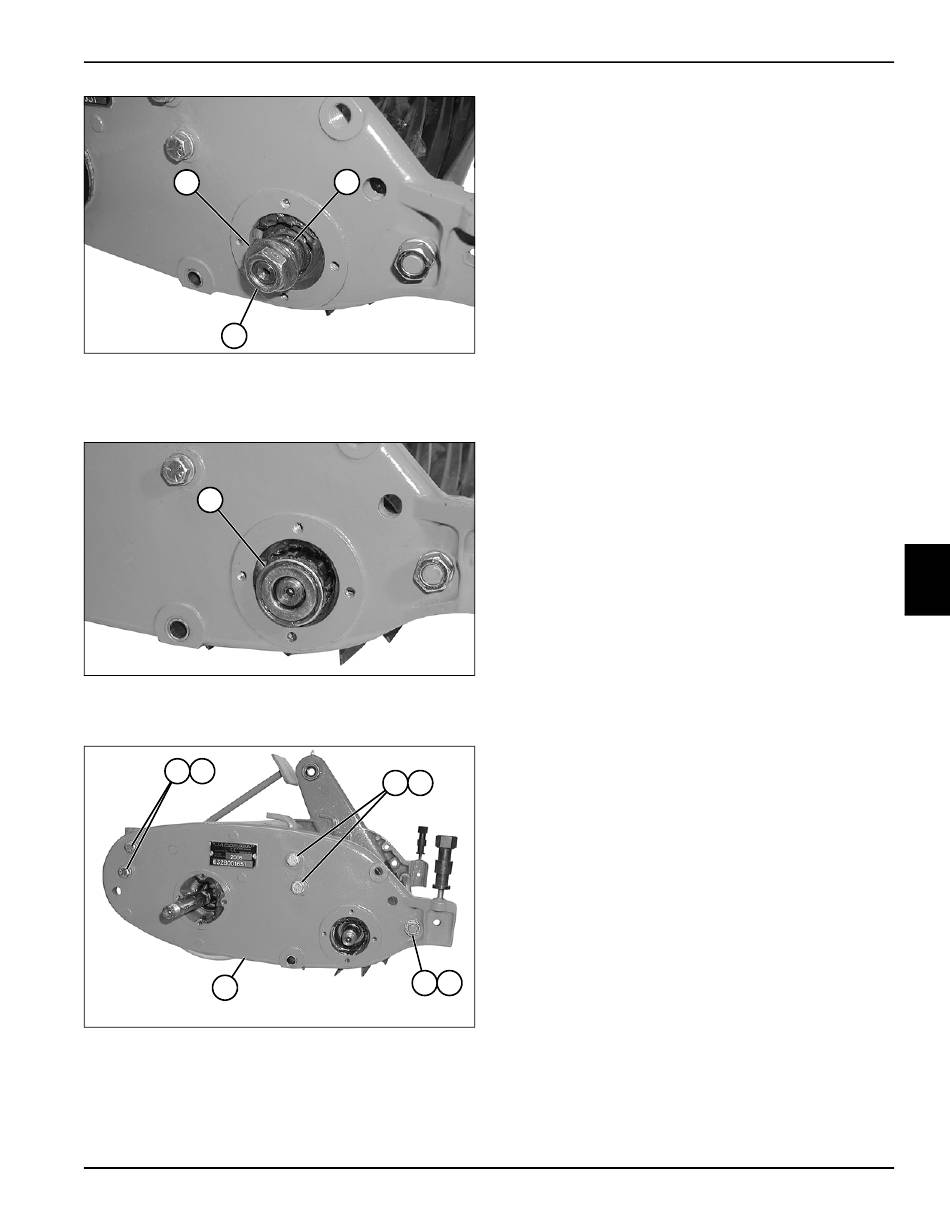

Figure 5-53
13. Remove nut (17), washer (15), and spring (16) from
the reel shaft.
18
Figure 5-54
14. Remove bearing (18) from the reel shaft.
19 20
23
Figure 5-55
15. Remove nut (21) and lock washer (22).
16. Remove four screws (19) and lock washers (20) from
the front and rear crossbars.
17. Remove right side frame (23).
