Repair-Turf Groomer; Drive Belt - Textron Jacobsen InCommand PGM 22 Technical/Repair Manual

10
15 16
14
13

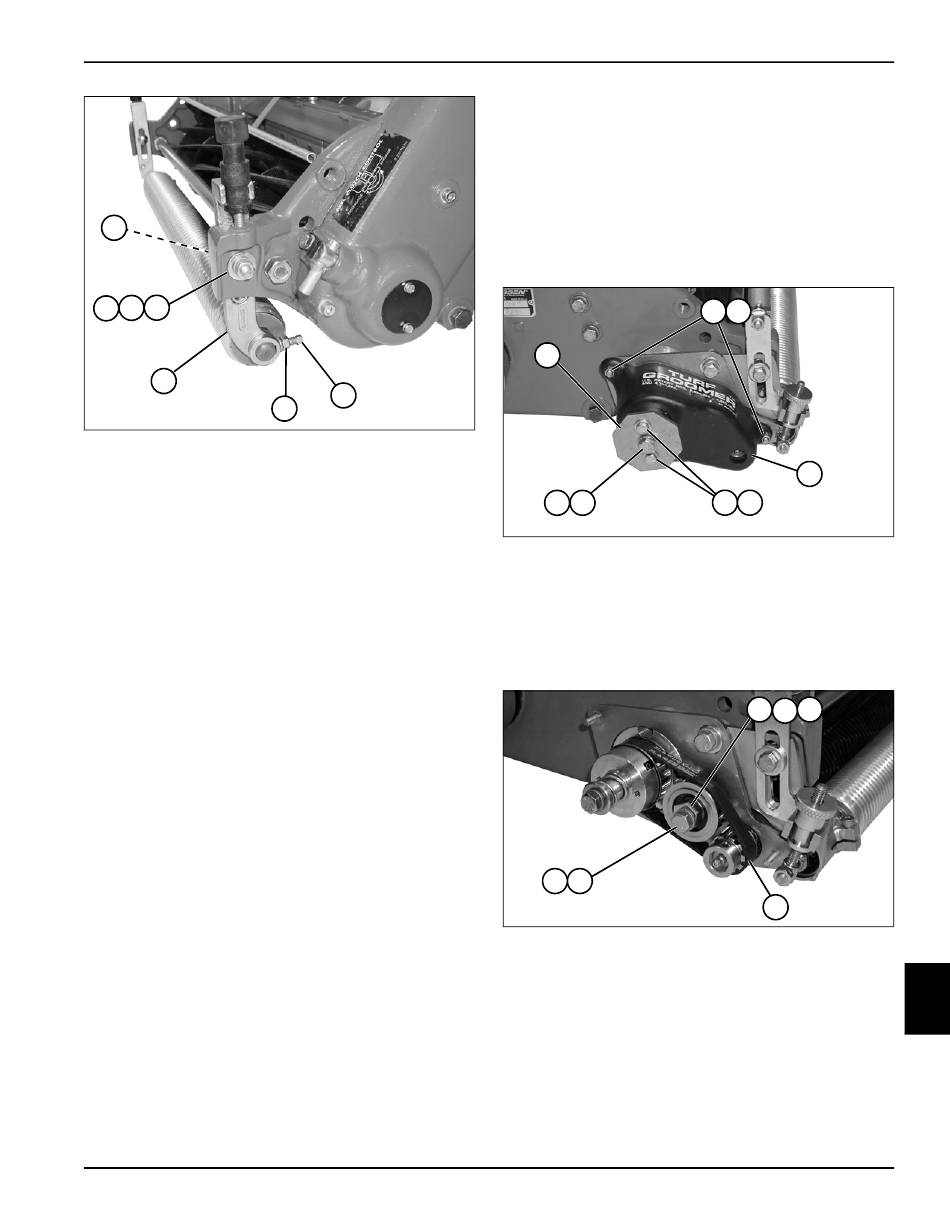

Figure 10-28
7. Install carriage bolt (10) through adjuster bracket (13)
and secure with flat washer (16), lock washer (15),
and nut (14).
8. Center roller assembly between adjuster brackets
and tighten square head bolt (11) and jam nut (12) on
both sides of machine.
9. Check height-of-cut. (See "Height-of-Cut Adjustment"
on page 8-14.)
4157082 First Edition
11
12
TN0068
Repair—Turf Groomer

Drive Belt

Removal and Installation
See Figures 10-29 and 10-30.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-6.)
1
7 8
Figure 10-29
2. Remove hex head screws (5) and lock washers (6).
3. Remove hex head screw (7), lock washer (8), and
clutch control knob (1).
4. Remove lock nuts (2), flat washers (3), and belt cover
(4).
9 10
Figure 10-30
5. Remove hex head screw (9) and lock washer (10).
6. Remove eccentric adjuster nut (11), idler pulley (12),
and spacer (13).
7. Remove belt (14).
Installation Notes
• Install belt by reversing the order of removal.
• Adjust belt tension. (See "Turf Groomer Drive Belt
Tension Adjustment" on page 10-6.)
ACCESSORIES
2 3
4
5 6
TN0311
11 13
12
14
TN0333
10-17
10
