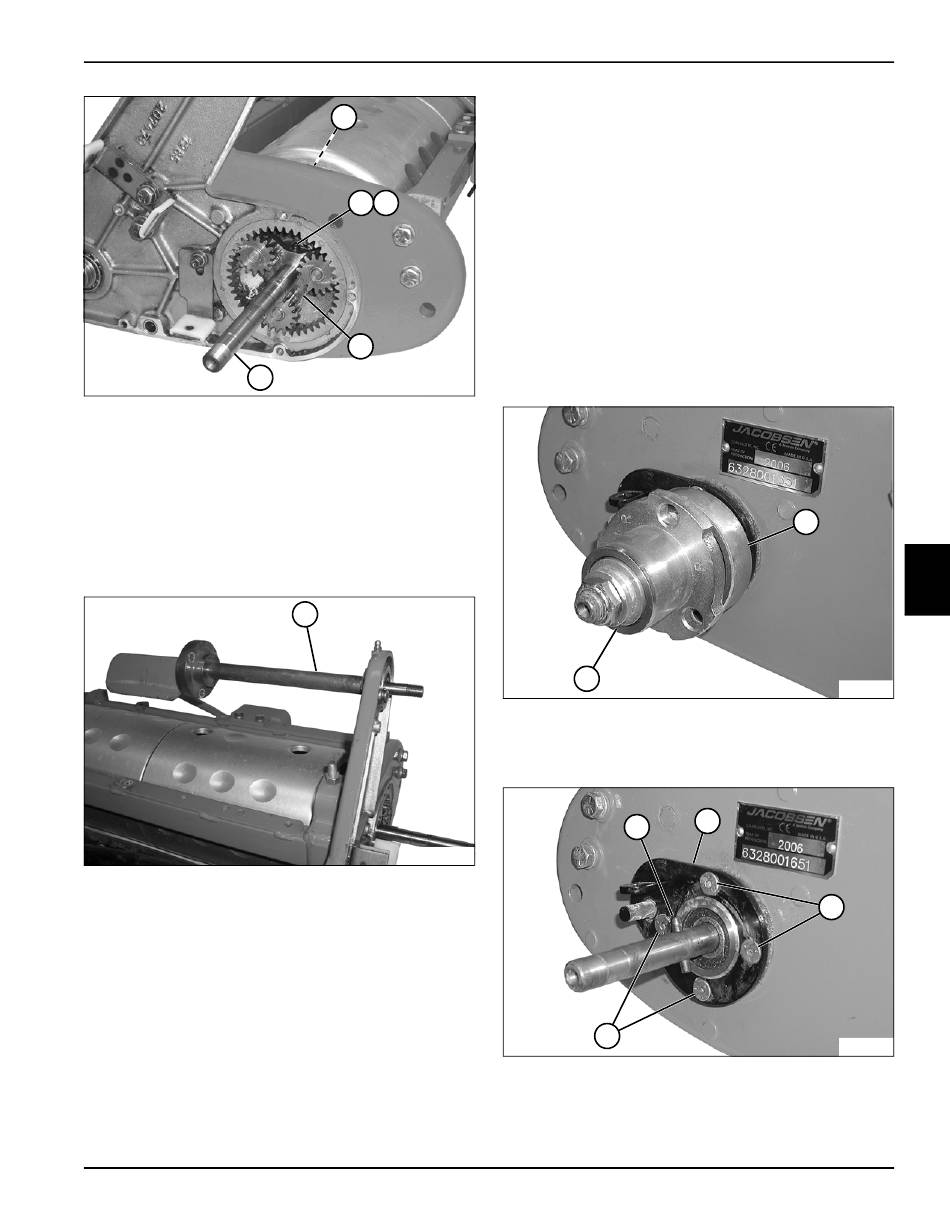

Figure 5-45
13. Install key (not shown) from the traction drum shaft
(25).
14. Install the planetary gear assembly (24) over the key.
15. Rotate the planetary gear assembly (24) until the
inner set screw (22) aligns with oil filler hole (21).
16. Tighten the inner set screw (22).
17. Install the outer set screw (23).
Figure 5-46
18. Install the clutch/input shaft (26).
19. Install the drive chains. (See "Drive Chains" on
page 5-9.)
20. Install the engine. (See "Engine and Clutch" on
page 3-7.)
21. Install the grass shield. (See "Grass Shield" on
page 8-17.)
22. Install the handle assembly. (See "Handle Assembly"
on page 6-3.)
4157082 First Edition
21
22 23
24
TN0098
26
TN0094

Right Frame

Removal
See Figures 5-47 through 5-55.
1. Park mower safely. (See "Park Mower Safely" on
page 1-6.)
2. Remove engine. (See "Engine and Clutch" on
page 3-7.)
3. Remove handle assembly. (See "Handle Assembly"
on page 6-3.)
4. Remove bedknife shoe. (See "Bedknife Shoe" on
page 8-18.)
5. Remove grass shield. (See "Grass Shield" on
page 8-17.)
2
Figure 5-47
6. Remove the right-side wheel hub (2) and brake band
(1). (See "Wheel Hubs and Bearings" on page 9-3.)
3
5
Figure 5-48
7. Using a punch, remove the roll pin (3) from the
transport roller shaft.
POWER TRAIN
1
TN0109
4
5
TN0110
