NOTE
The mower must be level before checking the oil level.
3. Push the mower forward so that the mower is resting
on the traction roller.

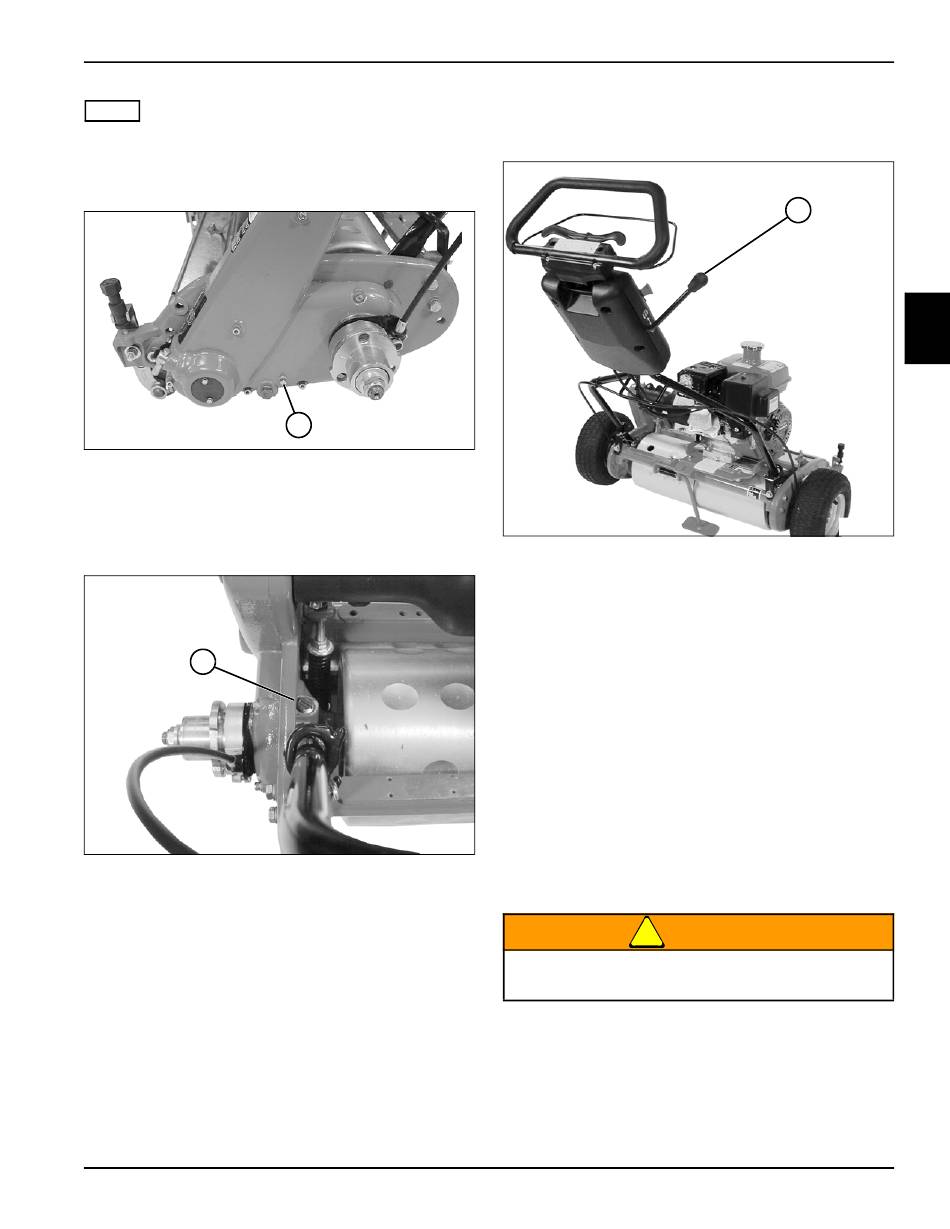

Figure 2-8
4. Remove the inspection plug (1). When the chain
case is properly filled the oil should be up to the level
of the hole. Add oil as needed. (See "Traction/Reel
Drive Chain Case Oil" on page 2-7.)
2
Figure 2-9
5. Remove fill plug (2).
6. Add oil until oil comes out of the inspection hole.
7. Install the inspection plug (1) and the fill plug (2).
8. Install transport wheels (if equipped). (See "Transport
Wheels (Optional)" on page 9-2.)
4157082 First Edition
SPECIFICATIONS AND GENERAL INFORMATION
1
TN0021
TN0022

Park Brake Check

See Figure 2-10.
Figure 2-10
1. Connect a spring scale to the park brake lever (1).
2. Pull the spring scale to engage the park brake and
record the reading.
A properly adjusted park brake will require 10 lb (4.5 kg)
of force to engage.
If the park brake does not meet specification, adjust or
repair the brake system as needed before returning the
mower to service. (See "Park Brake Check and
Adjustment" on page 7-4.)

Engine Stop (E-Stop) Switch Check

See Figures 2-11 and 2-12.
The unit is equipped with an E-stop switch to stop the
engine from the operator's position.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-6.)
!
WARNING
Never operate the engine without proper
ventilation; exhaust fumes can be fatal if inhaled.
2. Start the engine. (Refer to Operator's Manual.)
1
2
TN0004
