POWER TRAIN
14

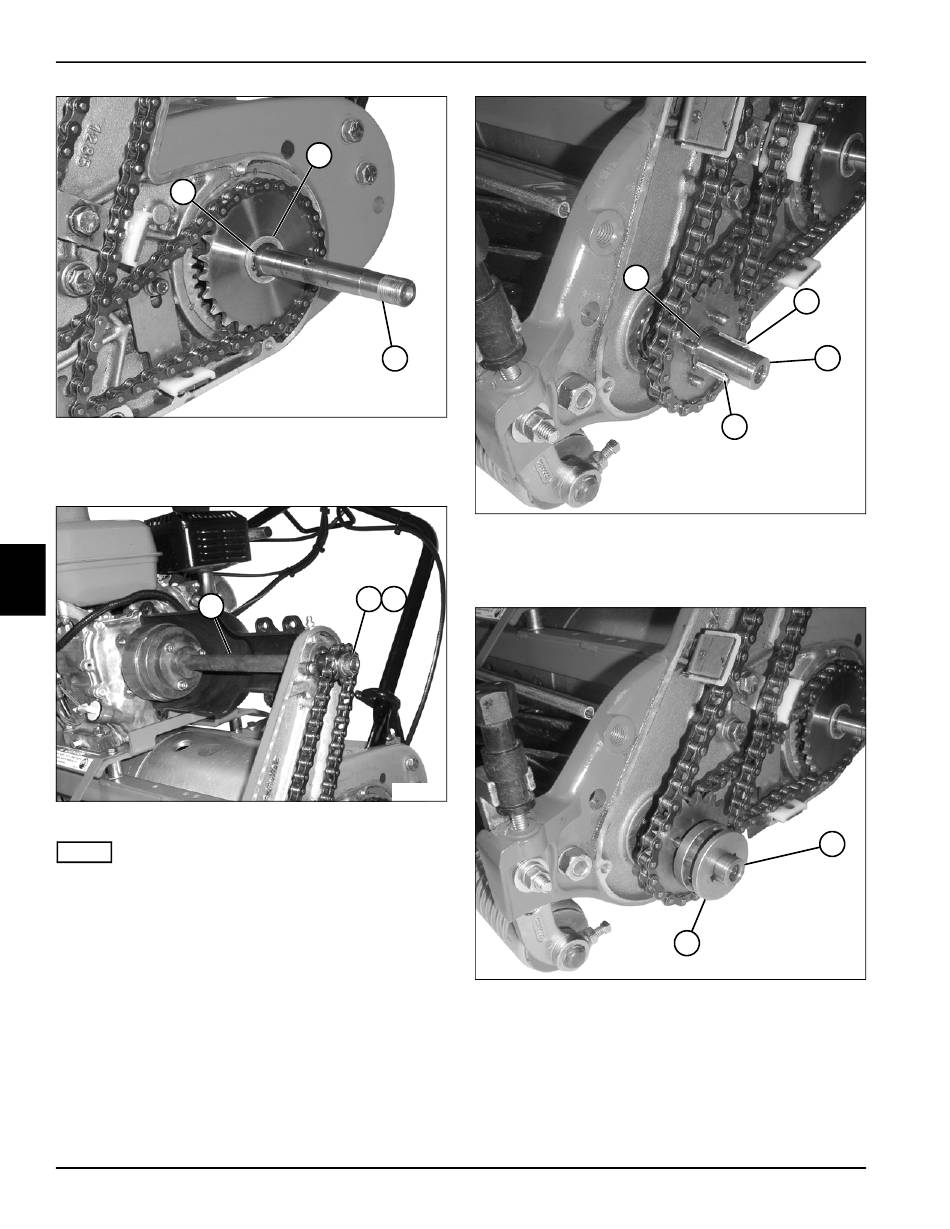

6. Install washer (15) and retaining ring (14) on the
traction drum shaft (16).
5
NOTE
Use a strap wrench to prevent clutch from turning while
installing nut.
7. Install nut (18) and washer (19) on the clutch/input
shaft (17).
5-12
15
Figure 5-28
18 19
17
Figure 5-29
16
TN0092
8. Install washer (20) on reel shaft (22).
9. Install two keys (21 and 23) on reel shaft (22).
TN0091
10. Install reel clutch (24) on reel shaft (25).
20
21
23
Figure 5-30
24
Figure 5-31
