Machine Overview
10

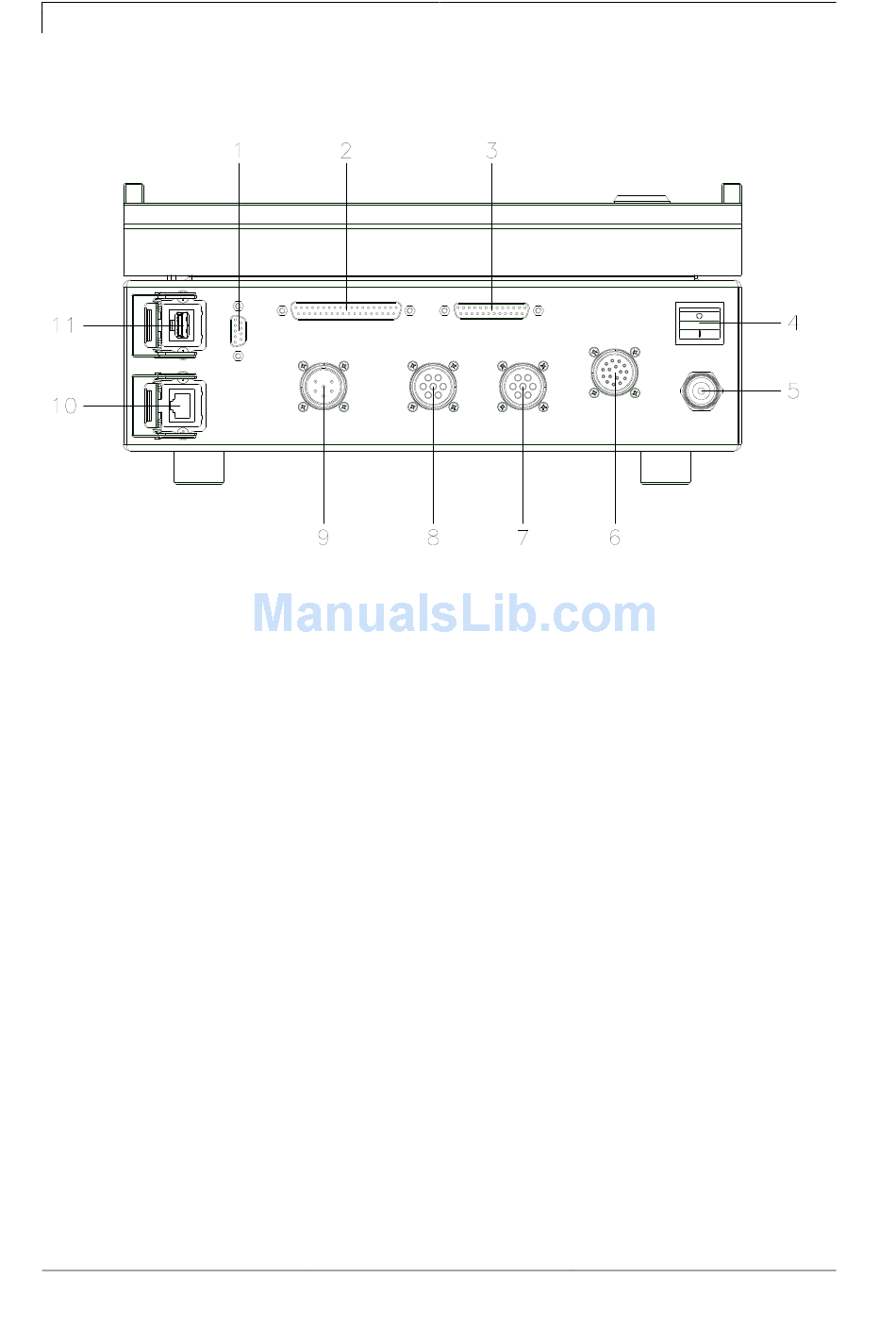

2.2 Connector Assignment of Control Unit
Figure 2
11 =
Serial interface RS-232
12 =
Connecting cable SPI (printhead + sensor)
13 =
Connecting cable Power
14 =
Switch
15 =
Power cable with safety plug and strain relief
16 =
External inputs/outputs
17 =
Connection encoder and product sensor
18 =
Connection encoder and product sensor
19 =
Alarm output (relais)
10 =
Ethernet interface 10/100
11 =
USB host for USB keyboard and USB memory stick
Operating Manual
Dynacode IP Series
08.16
