Machine Overview

The continuous and intermittent operating direct print module is a
direct print module with high resolution for installation in horizontal and
vertical packaging machines. Not only the easy to change ribbon
cassette and/or cleaning cassette is convincing but also different print
widths, left and right versions and because of the separate control unit
it is possible to integrate this direct print module in almost each
packaging process without any problems.
Flexible labelling of packaging foil is effected either by means of
Windows printer driver included in delivery or by our proven design
software Labelstar Office.
With 8 vector fonts, 6 bitmap fonts and 6 proportional fonts the direct
print module has a large selection at different font types. It can be
printed inverse, in italic format or 90 degrees turned fonts.
The handling of our durable direct print modules is easy and
comfortable. The parameter settings are made with the keys of the foil
keyboard. At each time the graphic display shows the current status.
By a new-developed electronics a maximum print speed of up to 800
mm/s (continuous mode) and 600 mm/s (intermittent mode) can be
achieved.
Time-saving firmware update is possible by interface.
As default, the direct print module is equipped with a serial, USB and
Ethernet interface. Additionally, the direct print module is equipped
with an USB Host that permits the connection of an external USB
keyboard and/or an USB memory stick. The direct print module
automatically recognizes by which interface it is controlled.
Thanks to the large number of options the direct print module can be
adapted to each task.

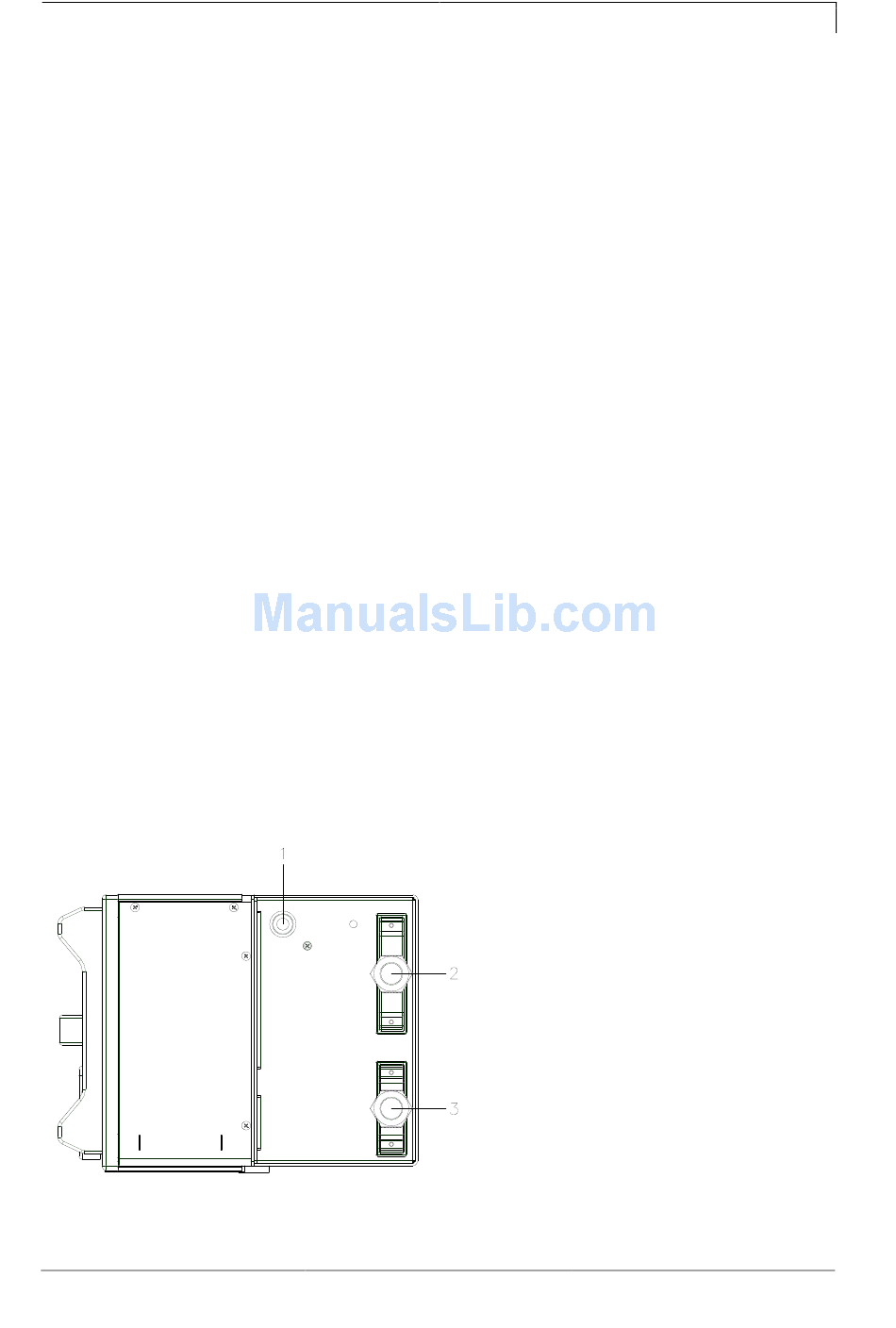

2.1 Connection Side of Print Mechanics

Figure 1
Operating Manual
Machine Overview
1 = Pneumatic connection
Connecting cable SPI
2 =
(printhead + sensors)
3 = Connecting cable Power
