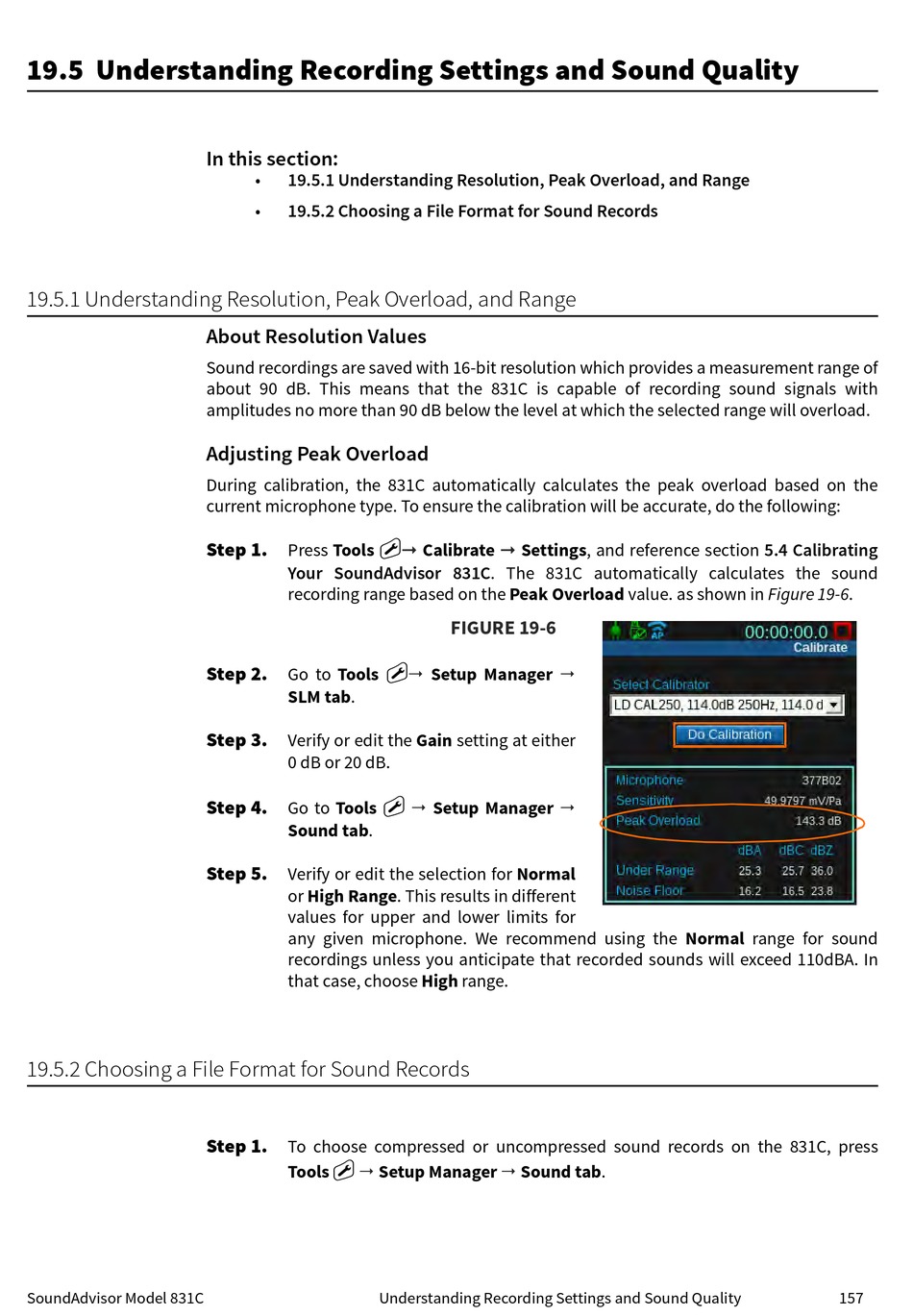

19.5 Understanding Recording Settings and Sound Quality

19.5.1 Understanding Resolution, Peak Overload, and Range
19.5.2 Choosing a File Format for Sound Records
SoundAdvisor Model 831C
In this section:
19.5.1 Understanding Resolution, Peak Overload, and Range
•
• 19.5.2 Choosing a File Format for Sound Records
About Resolution Values
Sound recordings are saved with 16-bit resolution which provides a measurement range of
about 90 dB. This means that the 831C is capable of recording sound signals with
amplitudes no more than 90 dB below the level at which the selected range will overload.
Adjusting Peak Overload
During calibration, the 831C automatically calculates the peak overload based on the
current microphone type. To ensure the calibration will be accurate, do the following:
Step 1.
Press Tools
Your SoundAdvisor 831C. The 831C automatically calculates the sound
recording range based on the Peak Overload value. as shown in Figure 19-6.
Step 2.
Go to Tools
SLM tab.
Step 3.
Verify or edit the Gain setting at either
0 dB or 20 dB.
Step 4.
Go to Tools
Sound tab.
Step 5.
Verify or edit the selection for Normal
or High Range. This results in different
values for upper and lower limits for
any given microphone. We recommend using the Normal range for sound
recordings unless you anticipate that recorded sounds will exceed 110dBA. In
that case, choose High range.
Step 1.
To choose compressed or uncompressed sound records on the 831C, press
3
Tools 
3
Calibrate Settings, and reference section 5.4 Calibrating
 
FIGURE 19-6
3
Setup Manager

3
Setup Manager

Setup Manager  Sound tab.
Understanding Recording Settings and Sound Quality


157
