Larson Davis SoundAdvisor 831C Reference Manual page 67

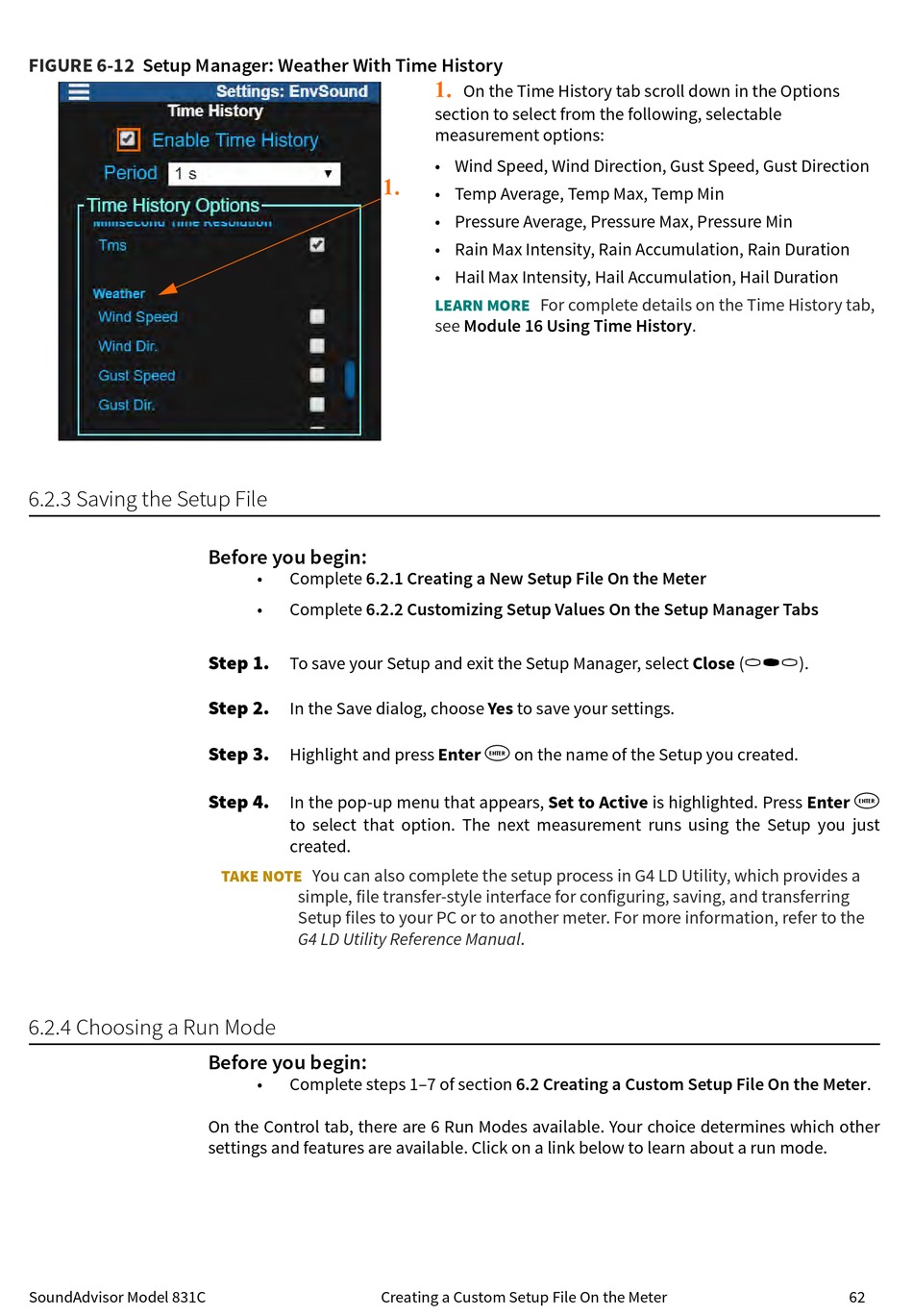

FIGURE 6-12 Setup Manager: Weather With Time History
6.2.3 Saving the Setup File
6.2.4 Choosing a Run Mode
SoundAdvisor Model 831C
Before you begin:
Complete 6.2.1 Creating a New Setup File On the Meter
•
• Complete 6.2.2 Customizing Setup Values On the Setup Manager Tabs
Step 1.
To save your Setup and exit the Setup Manager, select Close (
Step 2.
In the Save dialog, choose Yes to save your settings.
Step 3.
Highlight and press Enter
Step 4.
In the pop-up menu that appears, Set to Active is highlighted. Press Enter
to select that option. The next measurement runs using the Setup you just
created.
You can also complete the setup process in G4 LD Utility, which provides a
TAKE NOTE
simple, file transfer-style interface for configuring, saving, and transferring
Setup files to your PC or to another meter. For more information, refer to the
G4 LD Utility Reference Manual.
Before you begin:
• Complete steps 1–7 of section 6.2 Creating a Custom Setup File On the Meter.
On the Control tab, there are 6 Run Modes available. Your choice determines which other
settings and features are available. Click on a link below to learn about a run mode.
1.
On the Time History tab scroll down in the Options
section to select from the following, selectable
measurement options:
• Wind Speed, Wind Direction, Gust Speed, Gust Direction
1.
• Temp Average, Temp Max, Temp Min
• Pressure Average, Pressure Max, Pressure Min
• Rain Max Intensity, Rain Accumulation, Rain Duration
• Hail Max Intensity, Hail Accumulation, Hail Duration
For complete details on the Time History tab,
LEARN MORE
see Module 16 Using Time
5
on the name of the Setup you created.
Creating a Custom Setup File On the Meter
History.
/*/
).
5
62
