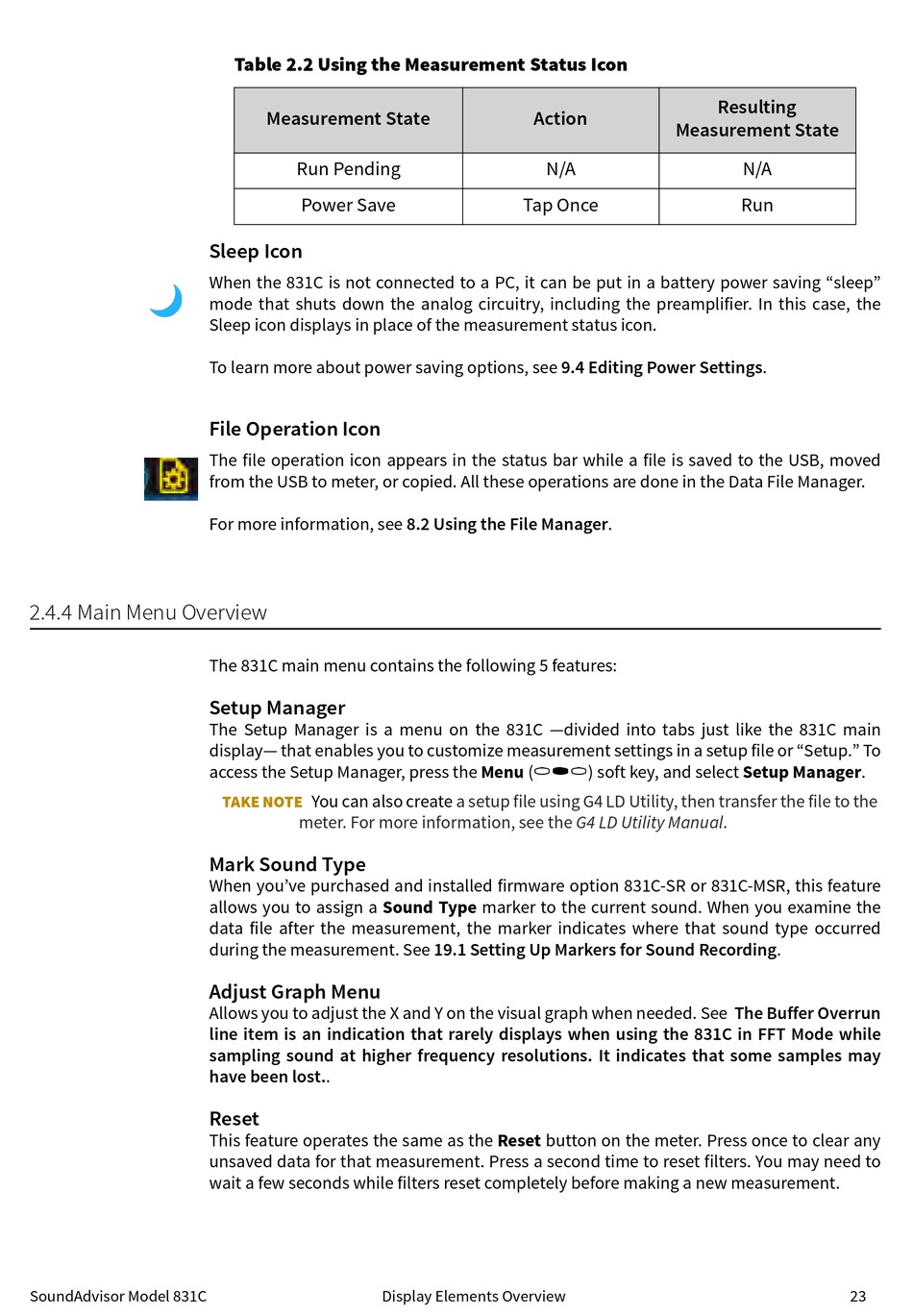

Larson Davis SoundAdvisor 831C Reference Manual page 28

2.4.4 Main Menu Overview
SoundAdvisor Model 831C
Table 2.2 Using the Measurement Status Icon
Measurement State
Run Pending
Power Save
Sleep Icon
When the 831C is not connected to a PC, it can be put in a battery power saving "sleep"
mode that shuts down the analog circuitry, including the preamplifier. In this case, the
Sleep icon displays in place of the measurement status icon.
To learn more about power saving options, see 9.4 Editing Power Settings.
File Operation Icon
The file operation icon appears in the status bar while a file is saved to the USB, moved
from the USB to meter, or copied. All these operations are done in the Data File Manager.
For more information, see 8.2 Using the File Manager.
The 831C main menu contains the following 5 features:
Setup Manager
The Setup Manager is a menu on the 831C —divided into tabs just like the 831C main
display— that enables you to customize measurement settings in a setup file or "Setup." To
access the Setup Manager, press the Menu (
You can also create
TAKE NOTE
meter. For more information, see the G4 LD Utility Manual.
Mark Sound Type
When you've purchased and installed firmware option 831C-SR or 831C-MSR, this feature
allows you to assign a Sound Type marker to the current sound. When you examine the
data file after the measurement, the marker indicates where that sound type occurred
during the measurement. See 19.1 Setting Up Markers for Sound Recording.
Adjust Graph Menu
Allows you to adjust the X and Y on the visual graph when needed. See The Buffer Overrun
line item is an indication that rarely displays when using the 831C in FFT Mode while
sampling sound at higher frequency resolutions. It indicates that some samples may
have been lost..
Reset
This feature operates the same as the Reset button on the meter. Press once to clear any
unsaved data for that measurement. Press a second time to reset filters. You may need to
wait a few seconds while filters reset completely before making a new measurement.
Action
N/A
Tap Once
/*/
a setup file using G4 LD Utility, then transfer the file to the
Display Elements Overview
Resulting
Measurement State
N/A
Run
) soft key, and select Setup Manager.
