2.2.5 Using the Power Control Page

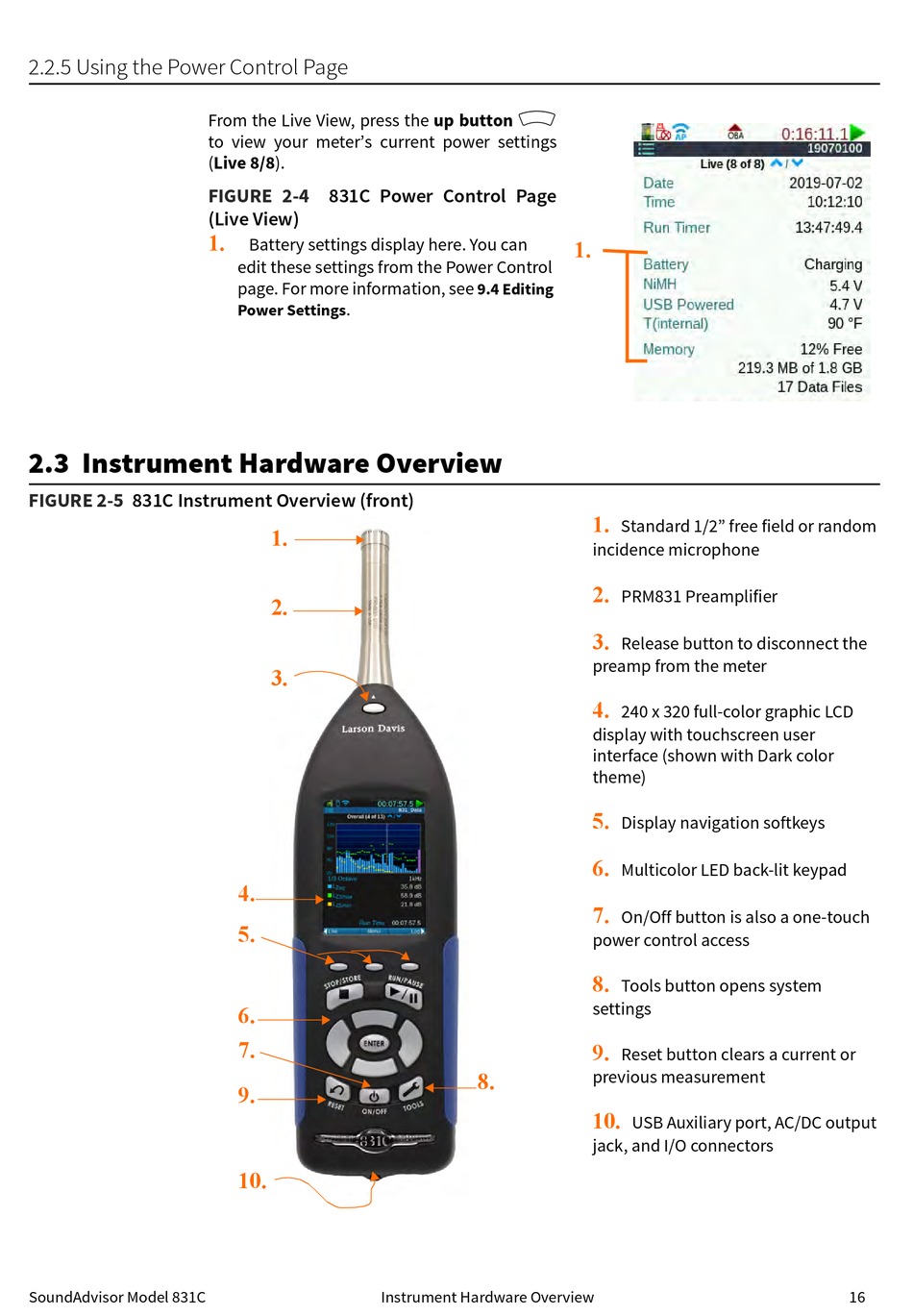

2.3 Instrument Hardware Overview

FIGURE 2-5 831C Instrument Overview (front)
SoundAdvisor Model 831C
From the Live View, press the up button
to view your meter's current power settings
(Live 8/8).
FIGURE 2-4 831C Power Control Page
(Live View)
1.
Battery settings display here. You can
edit these settings from the Power Control
page. For more information, see
.
Power Settings
1.
2.
3.
4.
5.
6.
7.
9.
10.
8
9.4 Editing
8.
Instrument Hardware Overview
1.
1.
Standard 1/2" free field or random
incidence microphone
2.
PRM831 Preamplifier
3.
Release button to disconnect the
preamp from the meter
4.
240 x 320 full-color graphic LCD
display with touchscreen user
interface (shown with Dark color
theme)
5.
Display navigation softkeys
6.
Multicolor LED back-lit keypad
7.
On/Off button is also a one-touch
power control access
8.
Tools button opens system
settings
9.
Reset button clears a current or
previous measurement
10.
USB Auxiliary port, AC/DC output
jack, and I/O connectors
