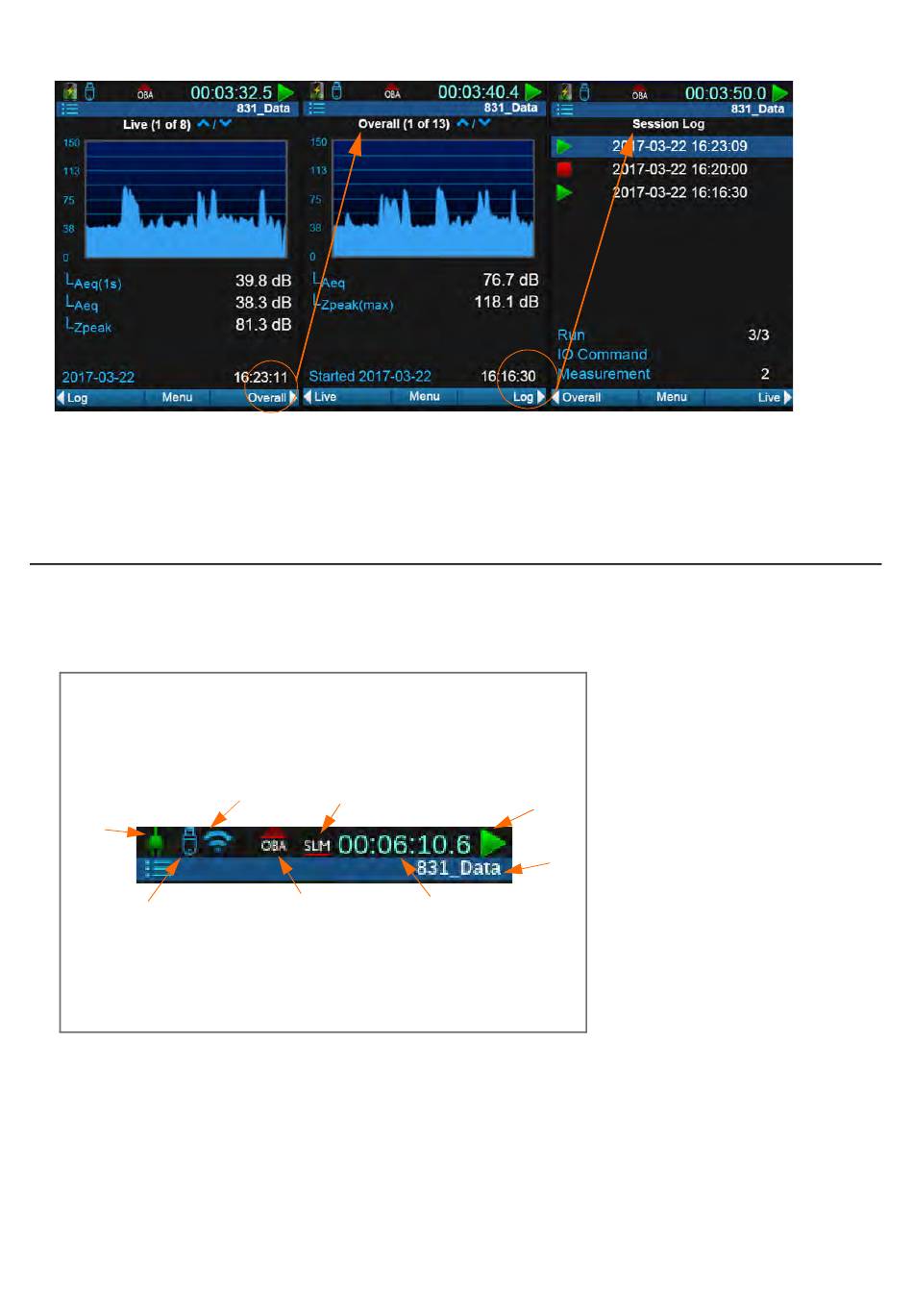

FIGURE 2-7 Navigating Tabs to the Right
2.4.3 About Status Bar Icons and Indicators
FIGURE 2-8
Status Bar
1.
8.
SoundAdvisor Model 831C
For complete details on each tab and page, see
LEARN MORE
Display.
The status bar at the top of the screen displays the meter, measurement, connection, alert
status, and battery status as shown in Figure 2-8.
2.
3.
7.
Power and Battery Power Indicators
The battery icon indicates the state of the battery charge by color and volume. When using
battery power, the battery icon indicates the state of the battery from fully charged to
4.
5.
6.
Display Elements Overview
Module 4 Using the Data
1.
Power Indicator
2.
WiFi Status
3.
SLM Indicator
4.
Run Status
5.
File Name
6.
Measurement Runtime
7.
OBA Indicator
8.
USB Memory Status
