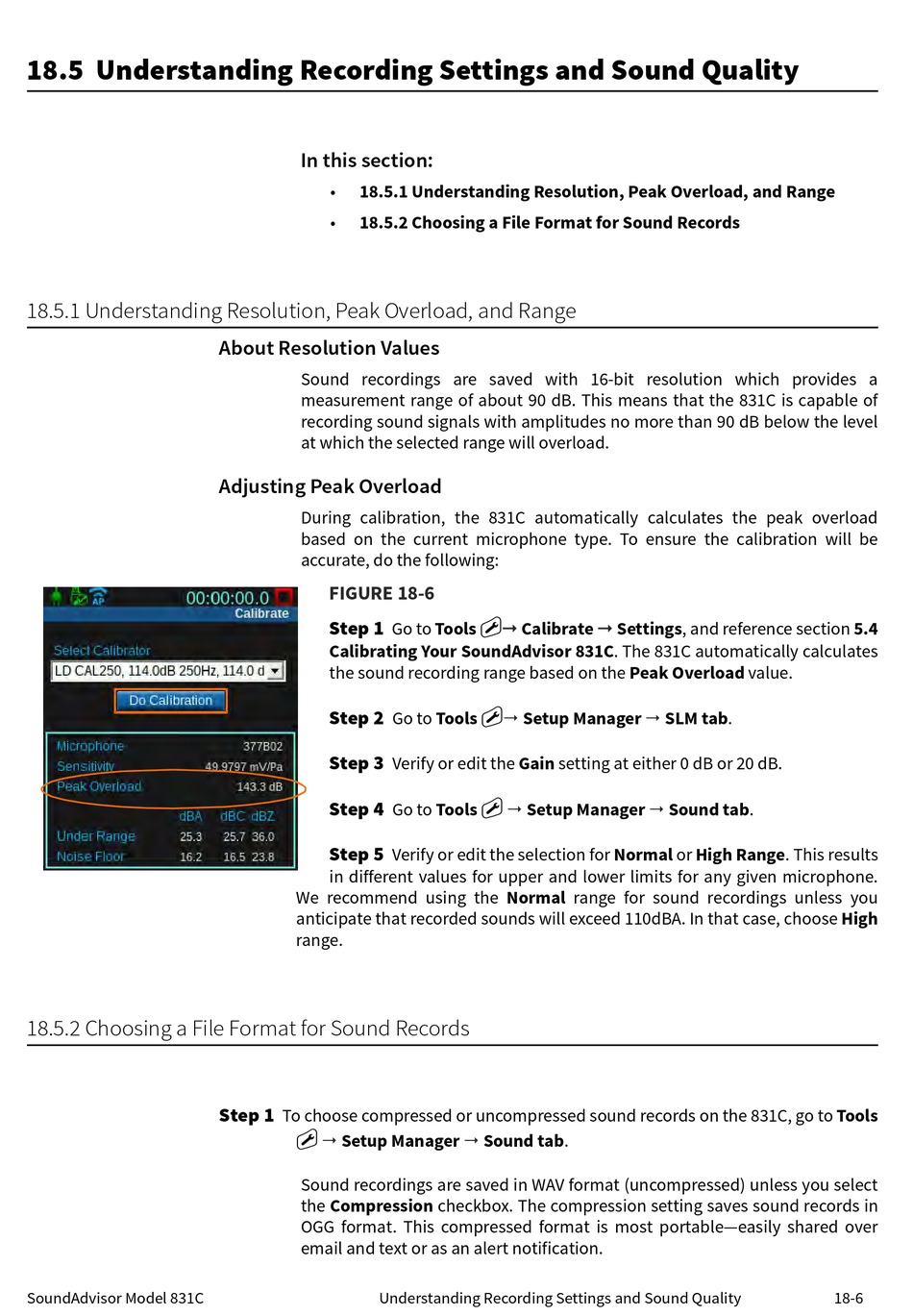

18.5 Understanding Recording Settings and Sound Quality

18.5.1 Understanding Resolution, Peak Overload, and Range

18.5.2 Choosing a File Format for Sound Records

SoundAdvisor Model 831C
In this section:
18.5.1 Understanding Resolution, Peak Overload, and Range
•
18.5.2 Choosing a File Format for Sound Records
•
About Resolution Values
Sound recordings are saved with 16-bit resolution which provides a
measurement range of about 90 dB. This means that the 831C is capable of
recording sound signals with amplitudes no more than 90 dB below the level
at which the selected range will overload.
Adjusting Peak Overload
During calibration, the 831C automatically calculates the peak overload
based on the current microphone type. To ensure the calibration will be
accurate, do the following:
FIGURE 18-6
Step 1
Calibrating Your SoundAdvisor 831C. The 831C automatically calculates
the sound recording range based on the Peak Overload value.
Step 2
Step 3
Step 4
Step 5
in different values for upper and lower limits for any given microphone.
We recommend using the Normal range for sound recordings unless you
anticipate that recorded sounds will exceed 110dBA. In that case, choose High
range.
Step 1
To choose compressed or uncompressed sound records on the 831C, go to Tools
3
Setup Manager

Sound recordings are saved in WAV format (uncompressed) unless you select
the Compression checkbox. The compression setting saves sound records in
OGG format. This compressed format is most portable—easily shared over
email and text or as an alert notification.
Understanding Recording Settings and Sound Quality
3
Go to Tools Calibrate

3
Go to Tools  Setup Manager
Verify or edit the Gain setting at either 0 dB or 20 dB.
3
Go to Tools  Setup Manager
Verify or edit the selection for Normal or High Range. This results
Sound tab.

Settings, and reference section 5.4

 SLM tab.
 Sound tab.
18-6
