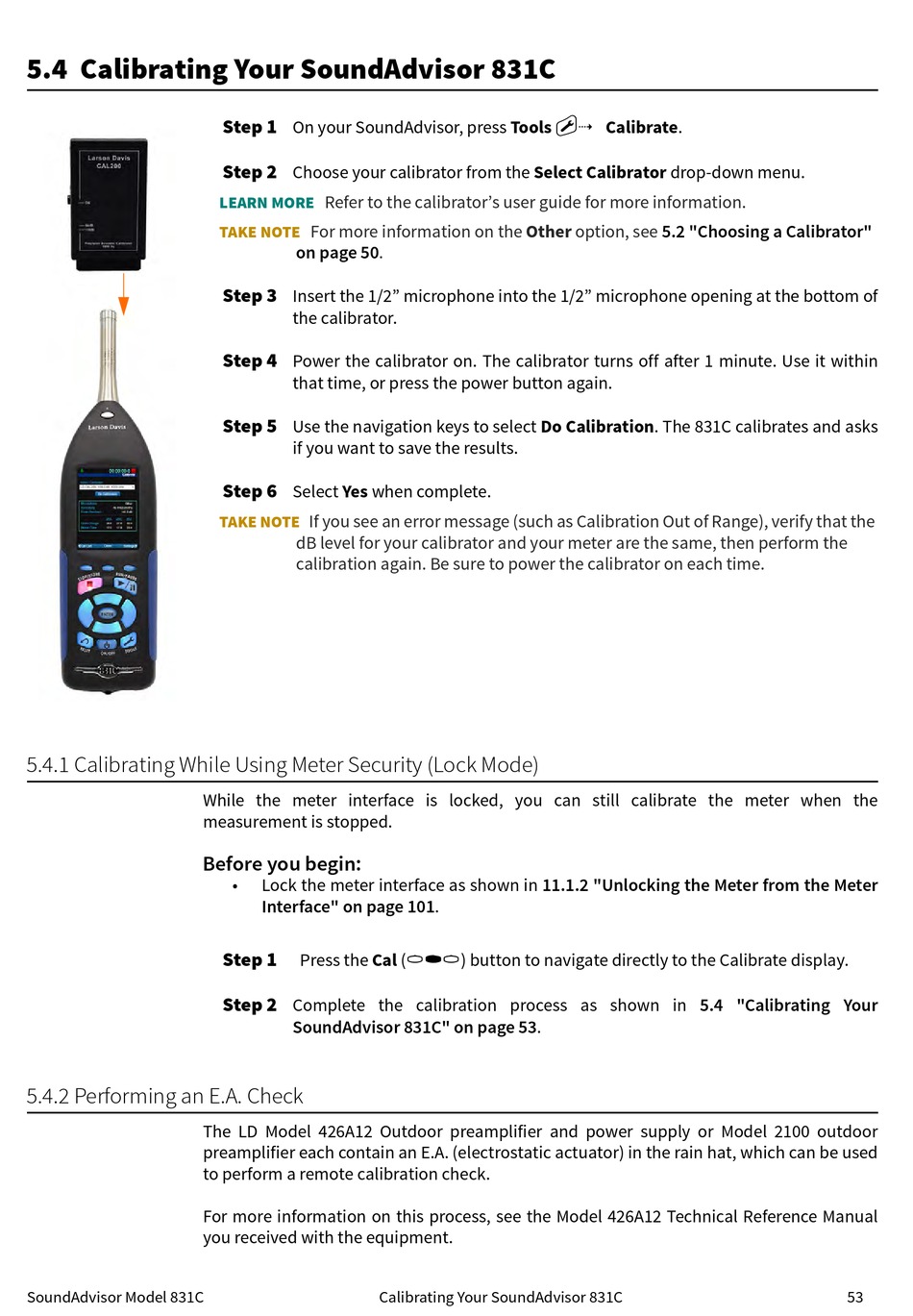

5.4 Calibrating Your SoundAdvisor 831C

5.4.1 Calibrating While Using Meter Security (Lock Mode)
5.4.2 Performing an E.A. Check
SoundAdvisor Model 831C
Step 1
On your SoundAdvisor, press Tools
Step 2
Choose your calibrator from the Select Calibrator drop-down menu.
Refer to the calibrator's user guide for more information.
LEARN MORE
For more information on the Other option, see
TAKE NOTE
on page 50.
Step 3
Insert the 1/2" microphone into the 1/2" microphone opening at the bottom of
the calibrator.
Step 4
Power the calibrator on. The calibrator turns off after 1 minute. Use it within
that time, or press the power button again.
Step 5
Use the navigation keys to select Do Calibration. The 831C calibrates and asks
if you want to save the results.
Step 6
Select Yes when complete.
If you see an error message (such as Calibration Out of Range), verify that the
TAKE NOTE
dB level for your calibrator and your meter are the same, then perform the
calibration again. Be sure to power the calibrator on each time.
While the meter interface is locked, you can still calibrate the meter when the
measurement is stopped.
Before you begin:
• Lock the meter interface as shown in 11.1.2 "Unlocking the Meter from the Meter
Interface" on page 101.
Step 1
Press the Cal (
Step 2
Complete the calibration process as shown in 5.4 "Calibrating Your
SoundAdvisor 831C" on page 53.
The LD Model 426A12 Outdoor preamplifier and power supply or Model 2100 outdoor
preamplifier each contain an E.A. (electrostatic actuator) in the rain hat, which can be used
to perform a remote calibration check.
For more information on this process, see the Model 426A12 Technical Reference Manual
you received with the equipment.
/*/
) button to navigate directly to the Calibrate display.
Calibrating Your SoundAdvisor 831C
3
Calibrate.
5.2 "Choosing a Calibrator"
53
