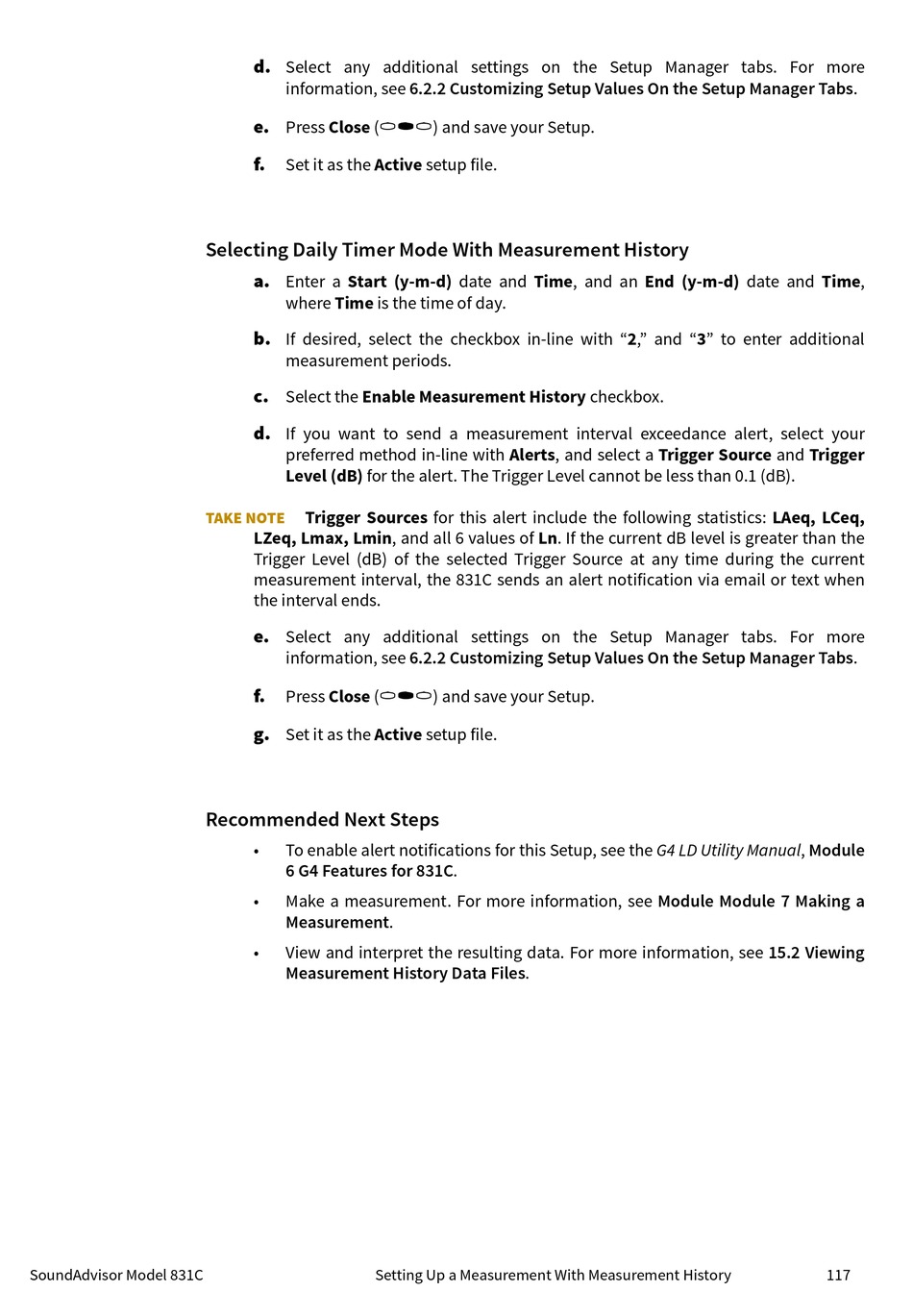

Larson Davis SoundAdvisor 831C Reference Manual page 122

SoundAdvisor Model 831C
d.
Select any additional settings on the Setup Manager tabs. For more
information, see 6.2.2 Customizing Setup Values On the Setup Manager Tabs.
e.
Press Close (
f.
Set it as the Active setup file.
Selecting Daily Timer Mode With Measurement History
a.
Enter a Start (y-m-d) date and Time, and an End (y-m-d) date and Time,
where Time is the time of day.
b.
If desired, select the checkbox in-line with "2," and "3" to enter additional
measurement periods.
c.
Select the Enable Measurement History checkbox.
d.
If you want to send a measurement interval exceedance alert, select your
preferred method in-line with Alerts, and select a Trigger Source and Trigger
Level (dB) for the alert. The Trigger Level cannot be less than 0.1 (dB).
Trigger Sources for this alert include the following statistics: LAeq, LCeq,
TAKE NOTE
LZeq, Lmax, Lmin, and all 6 values of Ln. If the current dB level is greater than the
Trigger Level (dB) of the selected Trigger Source at any time during the current
measurement interval, the 831C sends an alert notification via email or text when
the interval ends.
e.
Select any additional settings on the Setup Manager tabs. For more
information, see 6.2.2 Customizing Setup Values On the Setup Manager Tabs.
f.
Press Close (
g.
Set it as the Active setup file.
Recommended Next Steps
• To enable alert notifications for this Setup, see the G4 LD Utility Manual, Module
6 G4 Features for 831C.
• Make a measurement. For more information, see Module Module 7 Making a
Measurement.
• View and interpret the resulting data. For more information, see 15.2 Viewing
Measurement History Data Files.
/*/
) and save your Setup.
/*/
) and save your Setup.
Setting Up a Measurement With Measurement History 117
