17.3 Viewing Event History Data on the Events Tab

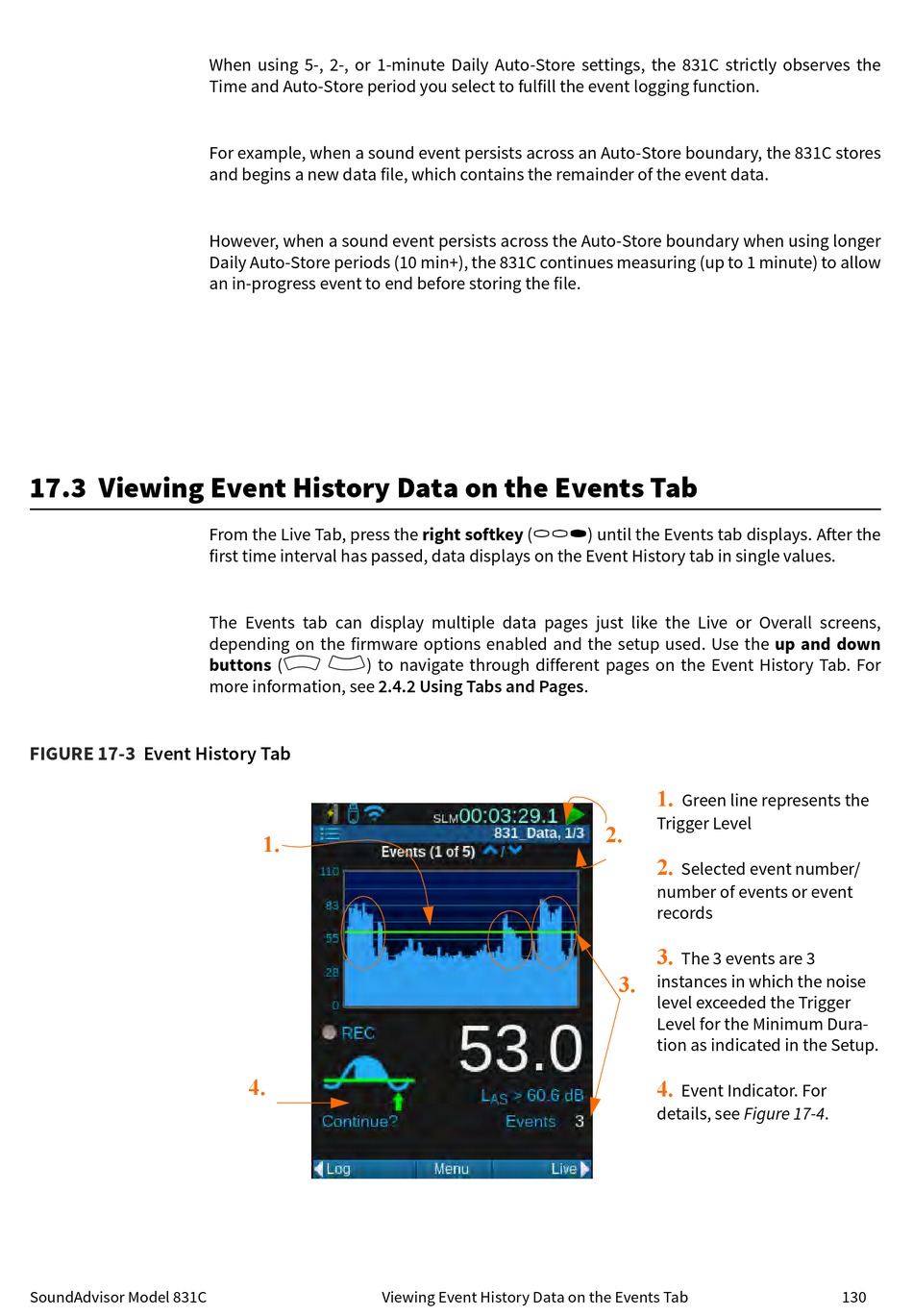

FIGURE 17-3
Event History Tab
SoundAdvisor Model 831C
When using 5-, 2-, or 1-minute Daily Auto-Store settings, the 831C strictly observes the
Time and Auto-Store period you select to fulfill the event logging function.
For example, when a sound event persists across an Auto-Store boundary, the 831C stores
and begins a new data file, which contains the remainder of the event data.
However, when a sound event persists across the Auto-Store boundary when using longer
Daily Auto-Store periods (10 min+), the 831C continues measuring (up to 1 minute) to allow
an in-progress event to end before storing the file.
From the Live Tab, press the right softkey (
first time interval has passed, data displays on the Event History tab in single values.
The Events tab can display multiple data pages just like the Live or Overall screens,
depending on the firmware options enabled and the setup used. Use the up and down
8 2
buttons (
) to navigate through different pages on the Event History Tab. For
more information, see 2.4.2 Using Tabs and Pages.
1.
4.
//*
Viewing Event History Data on the Events Tab
) until the Events tab displays. After the
1.
Green line represents the
Trigger Level
2.
2.
Selected event number/
number of events or event
records
3.
The 3 events are 3
3.
instances in which the noise
level exceeded the Trigger
Level for the Minimum Dura-
tion as indicated in the Setup.
4.
Event Indicator. For
details, see Figure 17-4.
130
