Parts Of The Instrument - Thermo Scientific Applied Biosystems QuantStudio 6 Pro User Manual

Chapter 1 Product information
1
Instrument hardware description

Parts of the instrument

1
2
3
4
5
6
7
8
9

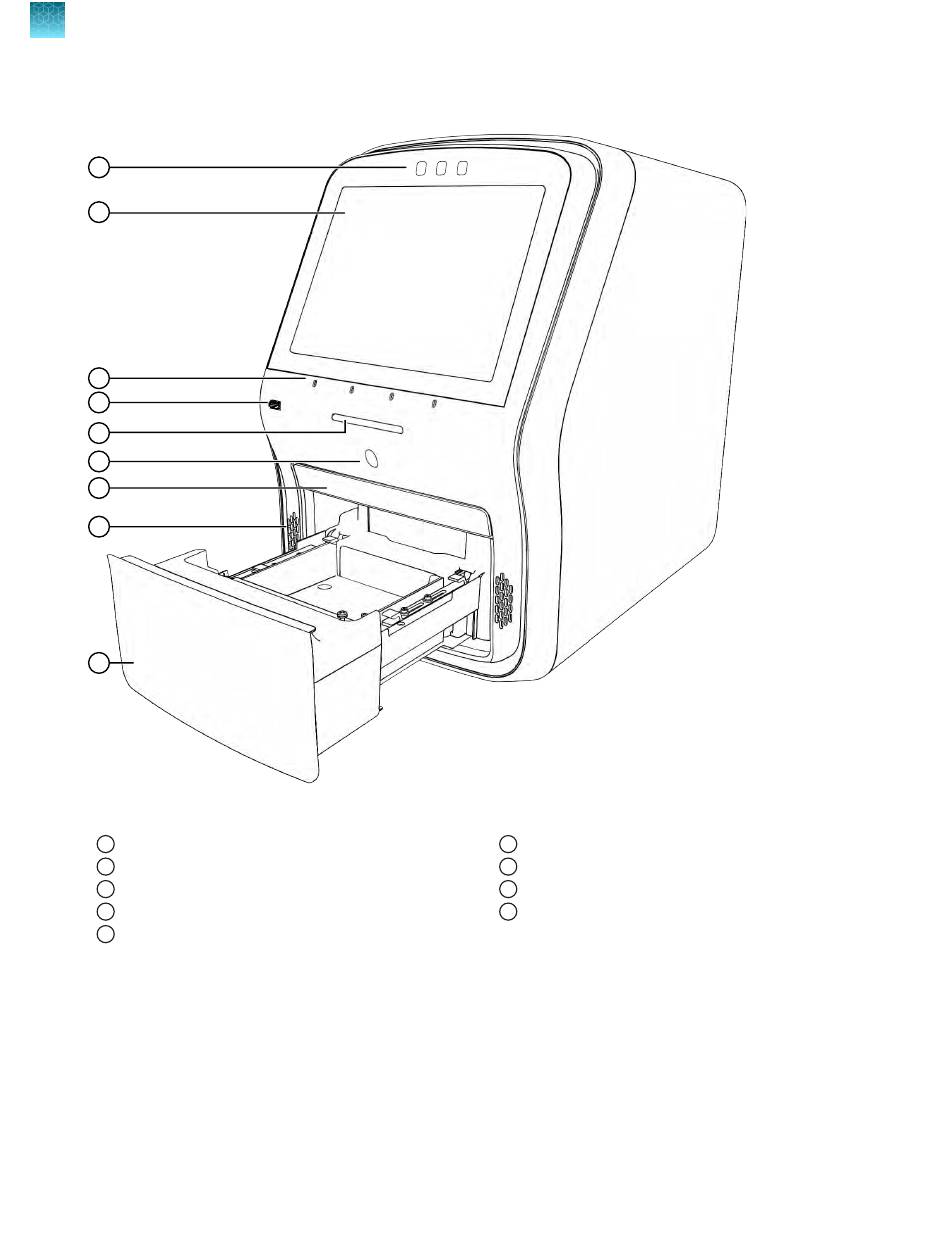

Figure 3 Front of the instrument
Cameras
1
Touchscreen
2
Microphones
3
USB port
4
Indicator light
5
20
QuantStudio ™ 6 Pro Real-Time PCR System and QuantStudio
Proximity sensor
6
Access door for block change
7
Speakers
8
Drawer
9
™ 7 Pro Real-Time PCR System User Guide
