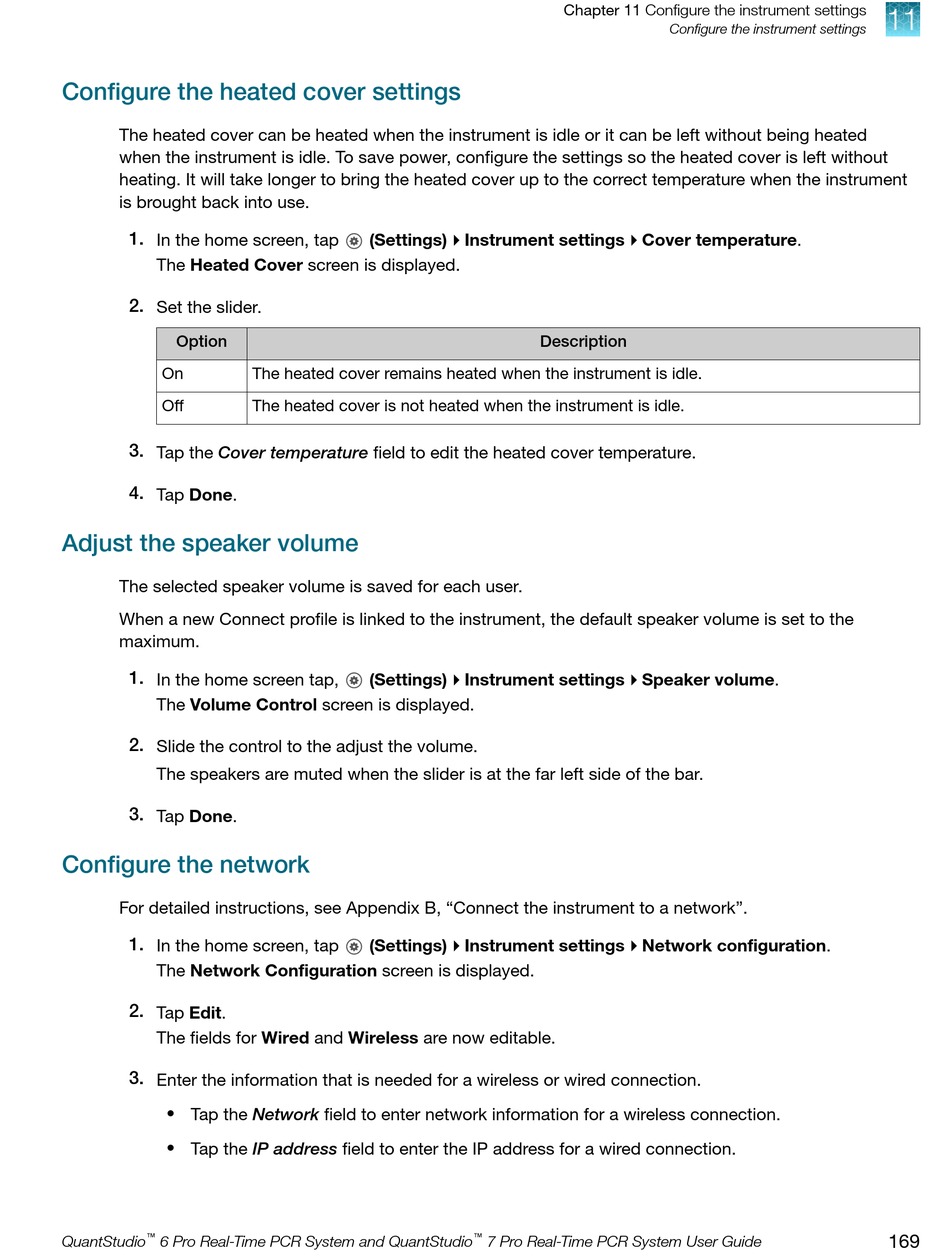

Configure the heated cover settings

The heated cover can be heated when the instrument is idle or it can be left without being heated
when the instrument is idle. To save power, configure the settings so the heated cover is left without
heating. It will take longer to bring the heated cover up to the correct temperature when the instrument
is brought back into use.
1. In the home screen, tap
The Heated Cover screen is displayed.
2. Set the slider.
Option
On
Off
3. Tap the Cover temperature field to edit the heated cover temperature.
4. Tap Done.

Adjust the speaker volume

The selected speaker volume is saved for each user.
When a new Connect profile is linked to the instrument, the default speaker volume is set to the
maximum.
1. In the home screen tap,
The Volume Control screen is displayed.
2. Slide the control to the adjust the volume.
The speakers are muted when the slider is at the far left side of the bar.
3. Tap Done.

Configure the network

For detailed instructions, see Appendix B, "Connect the instrument to a network".
1. In the home screen, tap
The Network Configuration screen is displayed.
2. Tap Edit.
The fields for Wired and Wireless are now editable.
3. Enter the information that is needed for a wireless or wired connection.
• Tap the Network field to enter network information for a wireless connection.
• Tap the IP address field to enter the IP address for a wired connection.
QuantStudio ™ 6 Pro Real-Time PCR System and QuantStudio
(Settings)4Instrument settings4Cover temperature.
The heated cover remains heated when the instrument is idle.
The heated cover is not heated when the instrument is idle.
(Settings)4Instrument settings4Speaker volume.
(Settings)4Instrument settings4Network configuration.
Chapter 11 Configure the instrument settings
Description
™ 7 Pro Real-Time PCR System User Guide
Configure the instrument settings
11
169
