Raven SmarTrax Installation Manual

Ag-chem terra-gator 6203, 8203, 8204, 8244, 9203 (2009 and newer)
Hide thumbs Also See for SmarTrax:

Advertisement

Quick Links

Download this manual
SmarTrax Installation Manual
Ag-Chem Terra-Gator 6203, 8203, 8204, 8244, 9203
(2009 and Newer)

Advertisement

loading
Need help?

Need help?

Do you have a question about the SmarTrax and is the answer not in the manual?

Questions and answers

Related Manuals for Raven SmarTrax

Summary of Contents for Raven SmarTrax

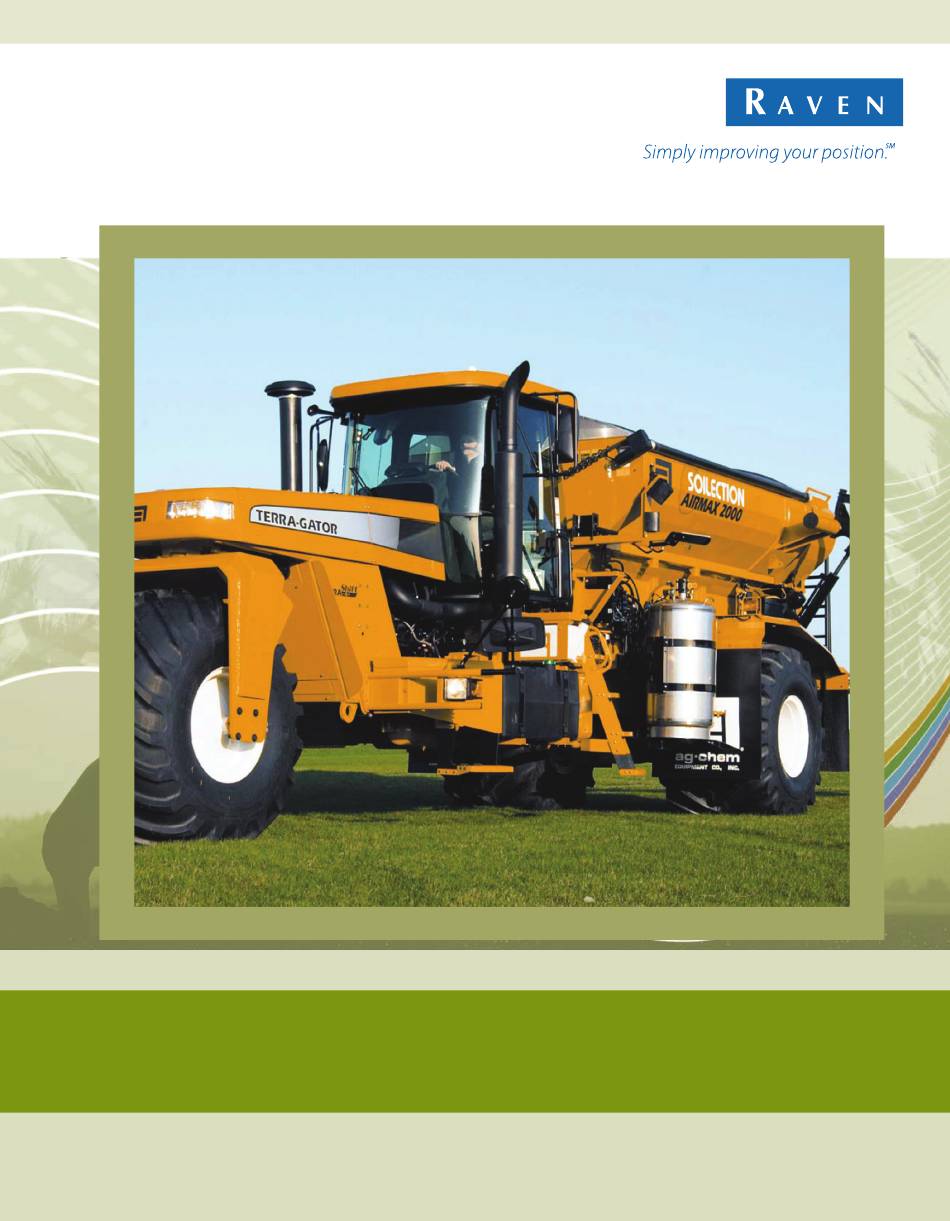

  • Page 1 SmarTrax Installation Manual Ag-Chem Terra-Gator 6203, 8203, 8204, 8244, 9203 (2009 and Newer)
  • Page 2 GPS satellites, the OmniSTAR correction service or the WAAS correction service. Raven Industries accepts no responsibility for the use of the signal for other than the stated purpose. Raven Industries shall not be responsible or liable for incidental or consequential damages or a loss of anticipated benefits or profits, work stoppage or loss or impairment of data arising out of the use, or inability to use, the SmarTrax or any of its components.
  • Page 3 Manual # 016-0190-093 H A P T E R NTRODUCTION Congratulations on your purchase of the Raven SmarTrax system! This system is designed to provide cutting-edge, hands-free steering of your machine via GPS coordinates. Terra-Gator 9203...

  • Page 4: Basic Kit

    Terra-Gator 6203, 8203, 8204, 8244, 9203 (2009 and Newer) Below you will see the kit contents that you should have received with this SmarTrax kit. Basic Kit Contents Terra-Gator 6203, 8203, 8204, 8244, and 9203 SmarTrax Kit Contents Quantity Item Description...
  • Page 5 Caution must be exercised. Any work carried out on the hydraulic system must be performed in accordance with the machine manufacturerer’s approved maintenance instructions. Raven Industries recommends that appropri- ate protective equipment be worn when working on the hydraulic system. Ob- jects or materials that are able to bypass the machine’s hydraulic filtration system...
  • Page 6 Support Center by any of the following methods: Industries      Via phone: 1-800-243-5435      Via mail: Raven Industries Flow Control Division 205 E. 6th St. Sioux Falls, SD 57104      Via email: fcdinfo@ravenind.com...
  • Page 7 Remove top two bolts from vertical channel on side of frame. Mount bracket using these two bolts. Raven steering valve is fastened to bracket in position shown using the provided bolts.
  • Page 8 Terra-Gator 6203, 8203, 8204, 8244, 9203 (2009 and Newer)
  • Page 9 Manual # 016-0190-093 H A P T E R YDRAULICS Installing the Access to steering orbital is located below hood on front side of cab firewall as shown in figure, remove hood for easy access to steering Pressure, orbital. Tank, Left, Hoses connected to ports on orbital labeled T, P, L, R, shown in figure, and Right are disconnected from orbital.
  • Page 10 “P” port of steering orbital and the other to “P” port on Raven valve. The Raven tank hose (P/N 214-1000-560) is installed by connecting one end to the tee on “T” port on steering orbital and the other to the “T” port on Raven valve.
  • Page 11 LS-Steer port on the Smartrax valve. The Raven LS-PV hose (P/N 214-1000-561) is installed by connecting one end to port labeled “LS-PV” on Raven valve, and the other to the previously disconnected LS hose by using a supplied -4 ORFS union...
  • Page 12 Terra-Gator 6203, 8203, 8204, 8244, 9203 (2009 and Newer)

  • Page 13: Sensor Mounting

    OUNTING Mounting the Yaw Sensor Yaw Sensor Installing the Raven Yaw Sensor is quick and easy. Raven recommends that you keep the following points in mind while installing the sensor: Installation • The sensor is not weatherproof. Mount the sensor inside of the machine’s cab or drivers compartment.

  • Page 14: Installation

    See the Mounting the Yaw Sensor section above for mounting location considerations. 2 Connect the supplied sensor cable to the Yaw Sensor and to the Yaw Sensor connector on the SmarTrax Interface cable.

  • Page 15: Start-Up Procedures

    Manual # 016-0190-093 H A P T E R TART- ROCEDURES After installing the SmarTrax on your machine, always follow these start-up procedures.  Turn the wheels fully from side to side numerous times to remove air from the hydraulic system.
  • Page 16 Terra-Gator 6203, 8203, 8204, 8244, 9203 (2009 and Newer) Notes:...
  • Page 19 How Can I Get Service? Bring the defective part and proof of purchase to your Raven Dealer. If your Dealer agrees with the warranty claim, the Dealer will send the part and proof of purchase to their distributor or to Raven Industries for final approval.
  • Page 20 P.O. Box 5107 Fax: 605-331-0426 Sioux Falls, SD 57117-5107 www.ravenprecision.com atdinfo@ravenind.com Notice: This document and the information provided are the property of Raven Industries, Inc. and may only be used as authorized by Raven Industries, Inc. All rights reserved under copyright laws.
