CHAPTER 5
Sidekick Pro™ ICD Main Screen Information

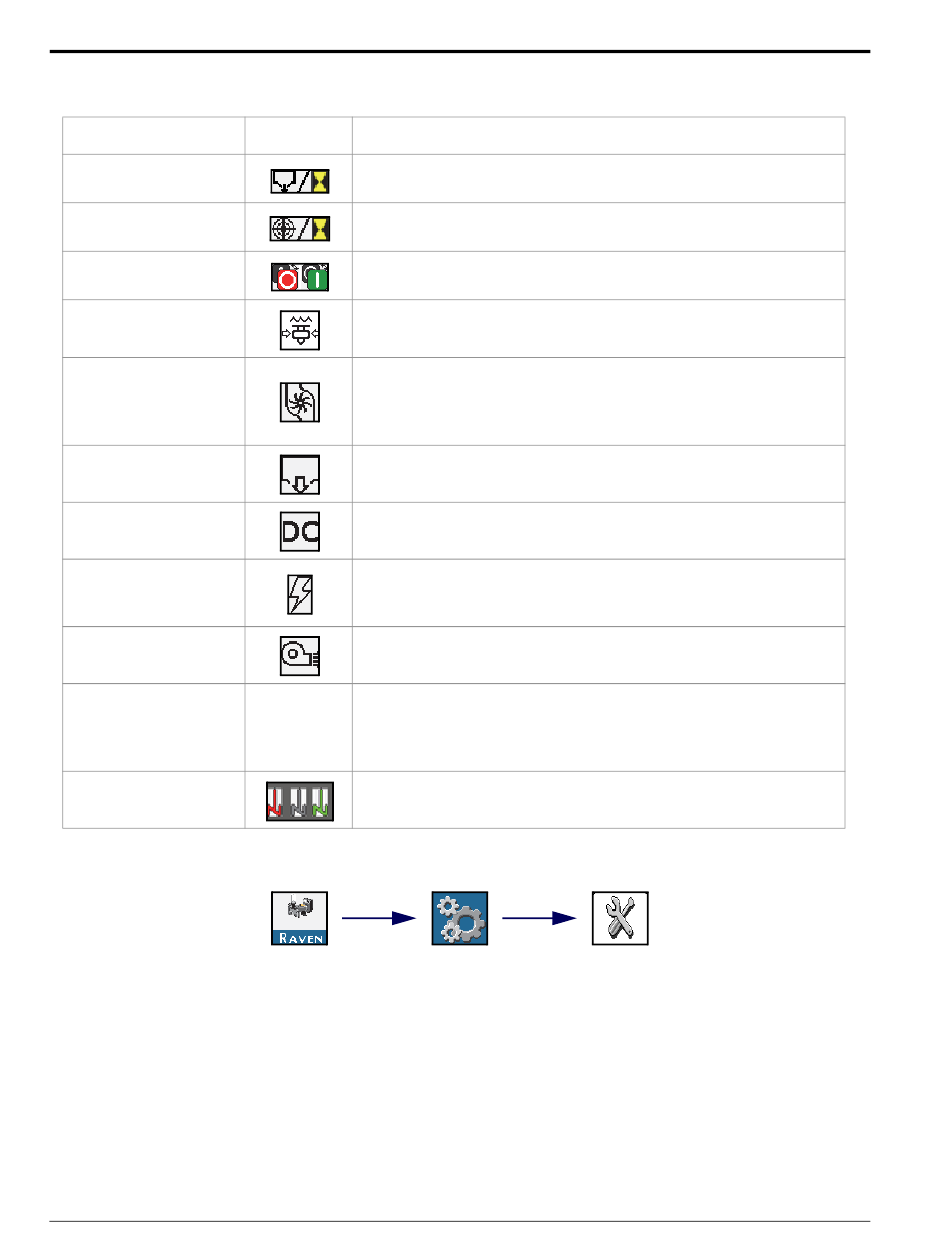

TABLE 1.
Display
Actual Flow
Target Flow
Actual Pump State
Pressure
DI Efficiency
Current Volume
Motor PWM
Motor Voltage
Motor RPM
Rinse Assist
Agitation

SYSTEM SETTINGS

1. Open the UT Menu and select the desired Sidekick Pro™ ICD Menu button.
2. Press the Product Setup button.
3. Select Settings. The following information will display:
32 SideKick Pro™ ICD 1-40 oz./min. and 5-200 oz./min. Installation & Operation Manual
Icon
Displays the actual flow rate of the pump during operation.
Displays the target flow rate of the pump.
Shows if the actual state of the pump is ON or OFF.
Displays the pressure at the injection pump pressure
transducer.
Displays the efficiency value of the pump during operation.
Typical values range from 60-100% and will vary
depending on ambient temperature, product viscosity,
system plumbing, and system pressure.
Displays the volume of product dispensed during field
operation and is resettable by the user.
Displays the motor Duty Cycle (between 0 to 100%) value
during operation.
The voltage for the high current bus circuit. High current
power is provided to system components such as the
motor.
Displays the Motor RPM of the injection pump during
operation.
Allows the user to toggle the state of the Rinse Assist
feature if equipped. If ON, the pump will ignore target rate
N/A
messages and will allow the user to perform rinse cycles. If
OFF, the pump returns to normal operation.
Allows the user to toggle the state of the agitator to ON or
OFF if an agitator is equipped.
Sidekick Pro Product
ICD Menu
Description
System Settings
Setup
