FC 300 Design Guide
Bus termination
The RS485 bus must be terminated by a resistor network at both ends. For this purpose, set switch
S801 on the control card for "ON".
For more information, see the paragraph
6.6.3.
How to Connect a PC to the FC 300
To control the frequency converter from a PC,
install the MCT 10 Set-up Software.
The PC is connected via a standard (host/de-
vice) USB cable, or via the RS485 interface as
shown in the section
Programming Guide.
6.6.4. The FC 300 PC Software
Data storage in PC via MCT 10 Set-Up
Software:
1.
2.
3.
4.
All parameters are now stored.
6.7.1. High Voltage Test
Carry out a high voltage test by short-circuiting terminals U, V, W, L
2.15 kV DC for one second between this short-circuit and the chassis.
NB!
Communication protocol must be set to FC MC par. 8-30.
Bus Connection
NB!
The USB connection is galvani-
cally isolated from the supply
voltage (PELV) and other high-
voltage terminals. The USB con-
nection is connected to protec-
tion earth on the frequency
converter. Use only isolated lap-
top as PC connection to the USB
connector on the FC 300 drive.
Connect a PC to the unit via USB com
port
Open MCT 10 Set-up Software
Choose "Read from drive"
Choose "Save as"
MG.33.B9.02 - VLT
®
is a registered Danfoss trademark
Switches S201, S202, and S801
in the

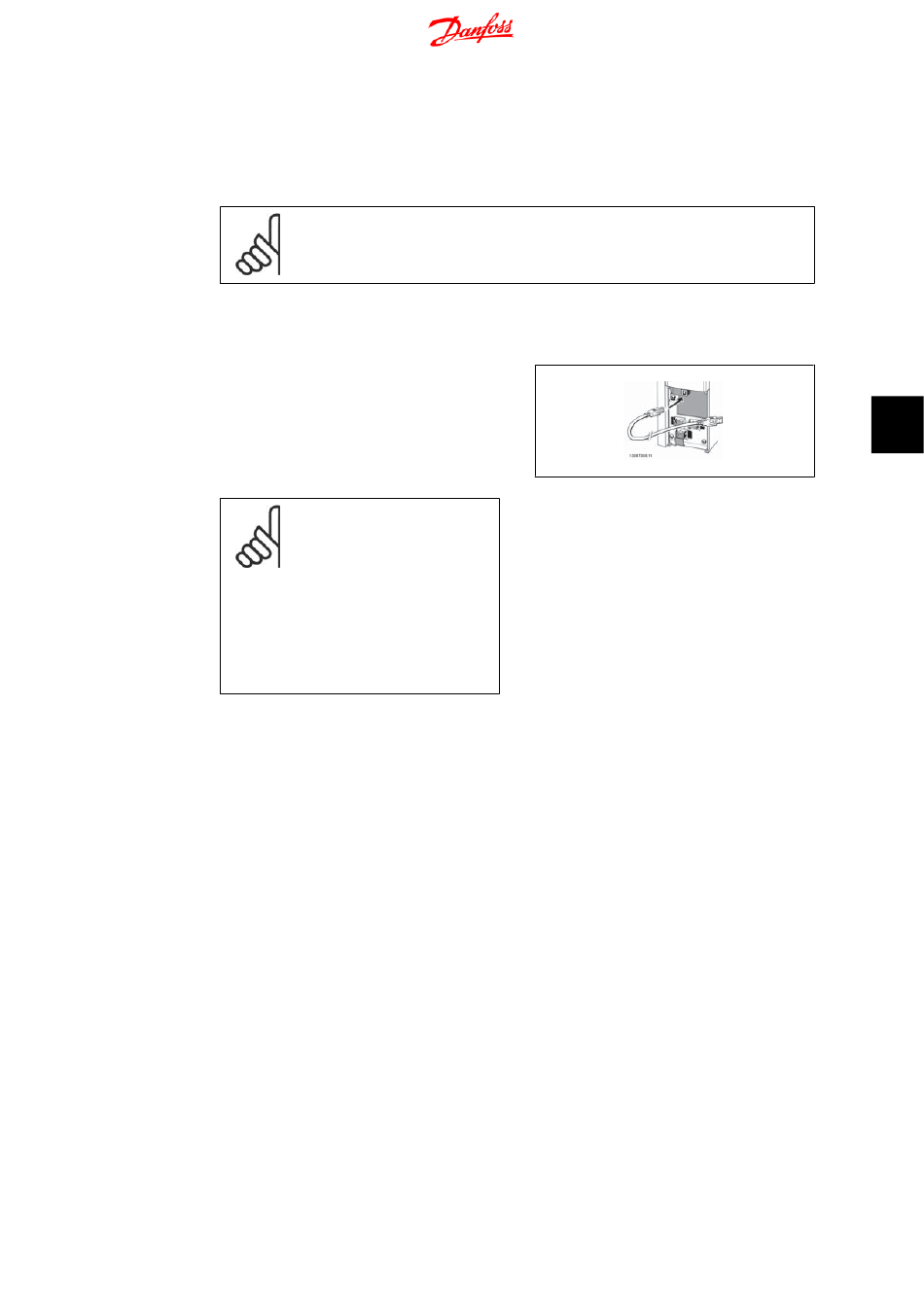

Illustration 6.13: USB connection.
Data transfer from PC to drive via MCT
10 Set-Up Software:
1.
Connect a PC to the unit via USB com
port
2.
Open MCT 10 Set-up software
3.
Choose "Open"– stored files will be
shown
4.
Open the appropriate file
5.
Choose "Write to drive"
All parameters are now transferred to the
drive.
A separate manual for MCT 10 Set-up Soft-
ware is available.
1
6. How to Install
.
, L
and L
. Energize by max.
2
3
6
121
