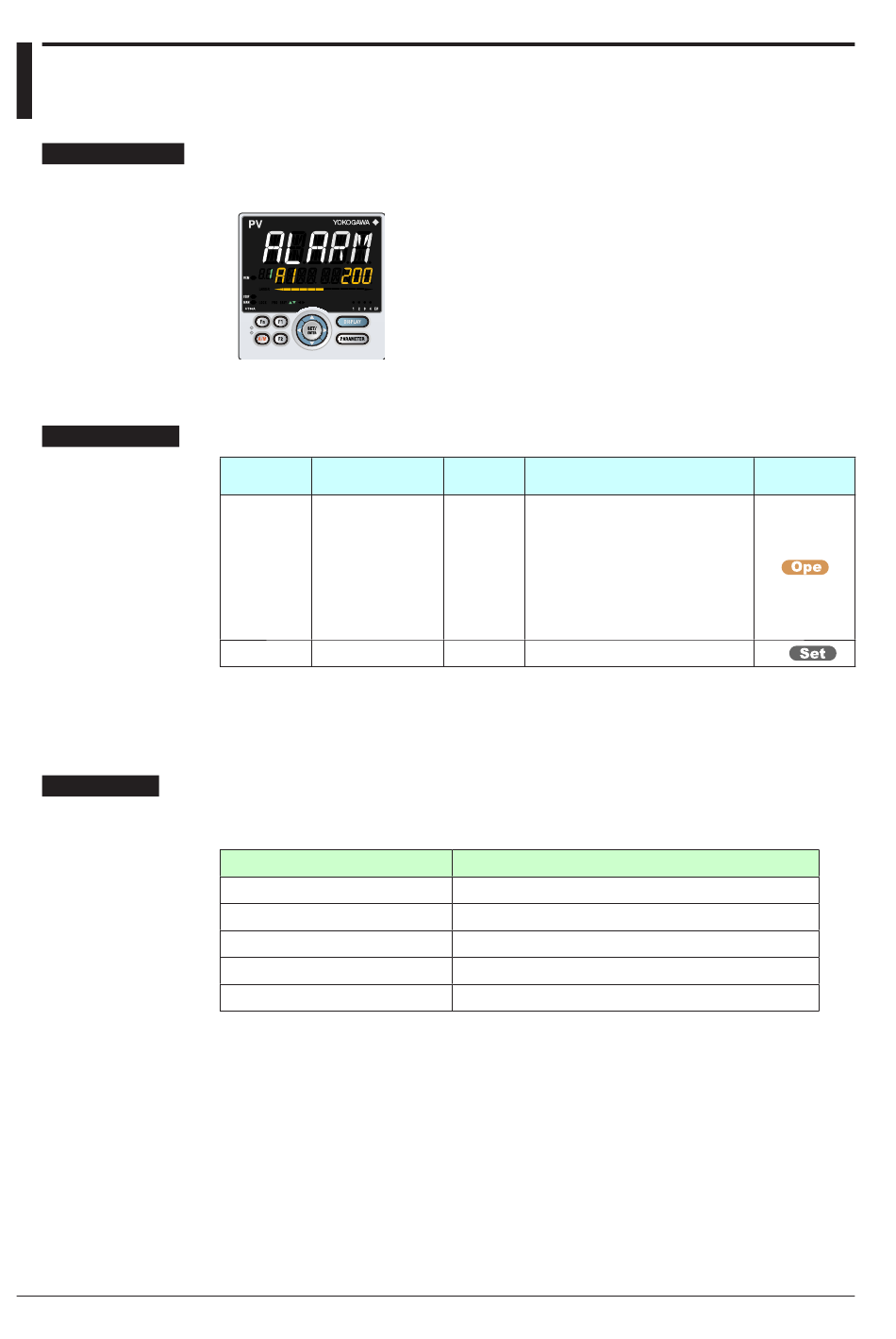

6.5 Setting Alarm Setpoint
Setting Display
Setting Details
Description
6-20
Parameter Setting Display
Parameter
Name
symbol
Alarm-1 to -4
A1 to A4
setpoint
ALNO. Number of alarms
Note:1 When the alarm setpoint parameter is displayed, the group number is shown on Group
display.
Note2: The initial value of the parameter ALNO. is "4." Four alarm setpoint parameters are displayed
for each SP group.
Each alarm type has four alarm setpoints.
Specifying the SP number (SPNO) determines the alarm setpoint to be used.
Alarm-related parameter
Alarm type
PV velocity alarm time setpoint
Alarm hysteresis
Alarm delay timer
Alarm setpoint
► Alarm type: Chapter 11 Alarm Functions
Operation Display > PARAMETER or PARA key for 3
seconds (to [MODE] Menu Display) > Right arrow key (to
[SP] Menu Display) > SET/ENTER key (The setting parameter
is displayed.) > Down arrow key (The setting parameter is
displayed.)
In the setting Display for the alarm parameters, Displays can
be arbitrarily switched using the Up, Down, Left or Right arrow
key. Pressing the Left or Right arrow key changes the group.
(The group number is displayed on Group display.)
Display
level
Set a display value of setpoint of
PV alarm, SP alarm, deviation
alarm, output alarm, or velocity
alarm.
EASY
-19999 to 30000 (Set a value
within the input range.)
Decimal point position depends on
the input type
PRO 1 to 4
Number of settings
4 (number of settings)
4 (number of settings)
4 (number of settings)
4 (number of settings)
4 (number of settings) x 4 (number of groups)
Setting range Menu symbol
SP
CTL
IM 05P01D31-01EN
