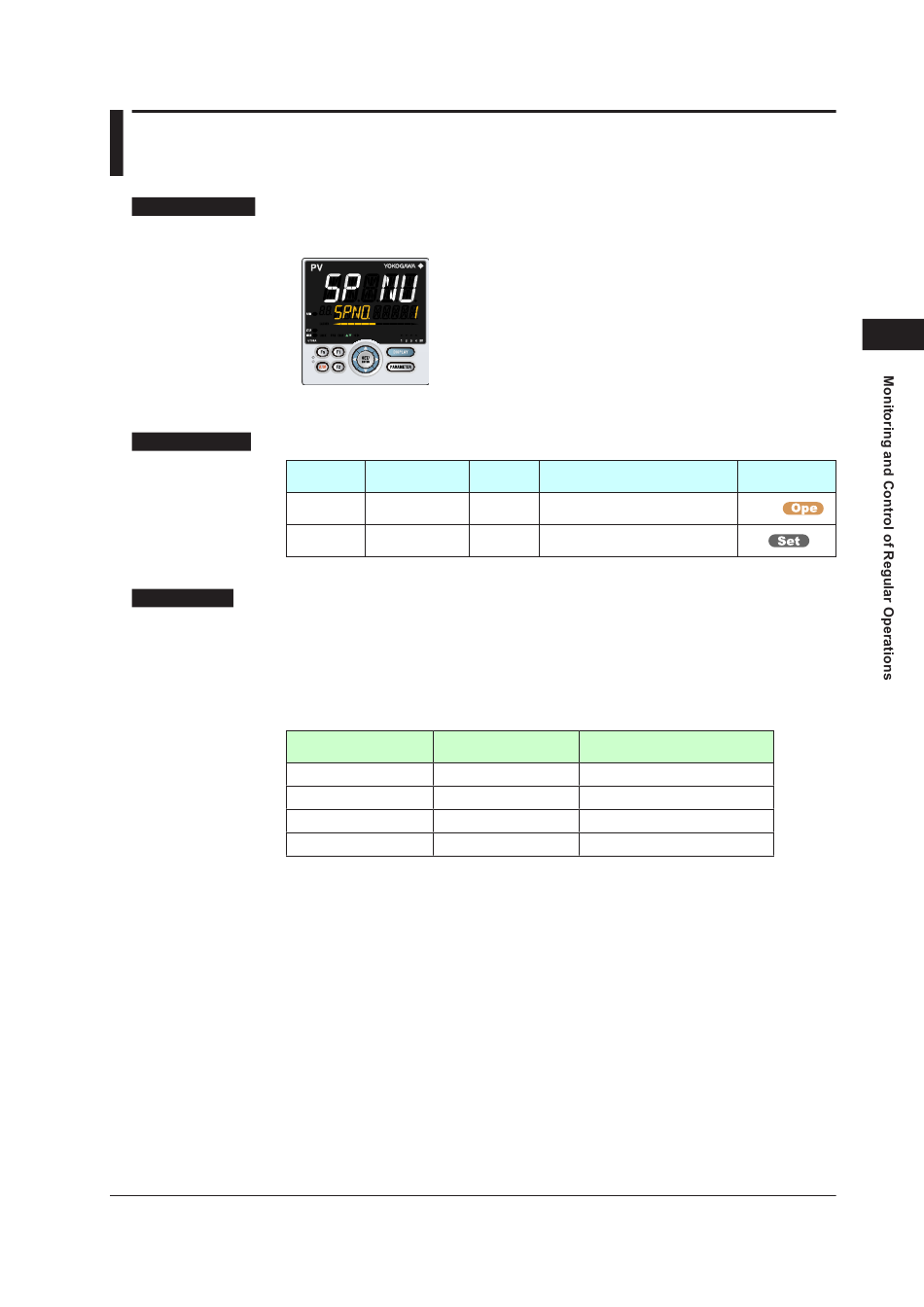

6.6 Selecting Target Setpoint Number (SPNO)
Setting Display
Setting Details
Description
IM 05P01D31-01EN
Operation Display > PARAMETER or PARA key for 3 seconds
Parameter Setting Display
(to [MODE] Menu Display) > SET/ENTER key (The setting
parameter is displayed.) > Down arrow key (The setting
parameter is displayed.)
Parameter
Name
symbol
SP number
SPNO.
selection
Number of SP
SPGR.
groups
The SP number (SPNO) selection can be used when the parameter ZON (zone PID
selection) is set to "SP group number selection."
SP Group Number Selection
The PID group which is set in the PID number selection (PIDN) of each SP group is
used.
SP number (SPNO) Target setpoint (SP)
1
2
3
4
When the SP parameter is displayed, the SP number is shown on Group display.
► Selection by contact input: 12.1 Setting Contact Input Function
Display
Setting range
level
1 to 4 (Depends on the setup
EASY
parameter SPGR. setting.)
STD 1 to 4
Setting range of PID number
selection (PIDN)
SP
SP
SP
SP
Menu symbol
MODE
CTL
1 to 4
1 to 4
1 to 4
1 to 4
