10.12 Setting Preset Output Value
10.12.2 Setting Output Value When Switched to MAN Mode (Manual Preset Output)
Description
Setting Details
10-20
When the operation mode is switched from AUTO to MAN, each of the following can be
selected.
• The control output takes over the control output as is.
• The control output bumps to the manual preset output.
When the manual preset output is output, the manual operation is possible after the
bump.
Manual preset output is limited by the output high and low limits. (when Output limiter
switch (OLMT) = ON)

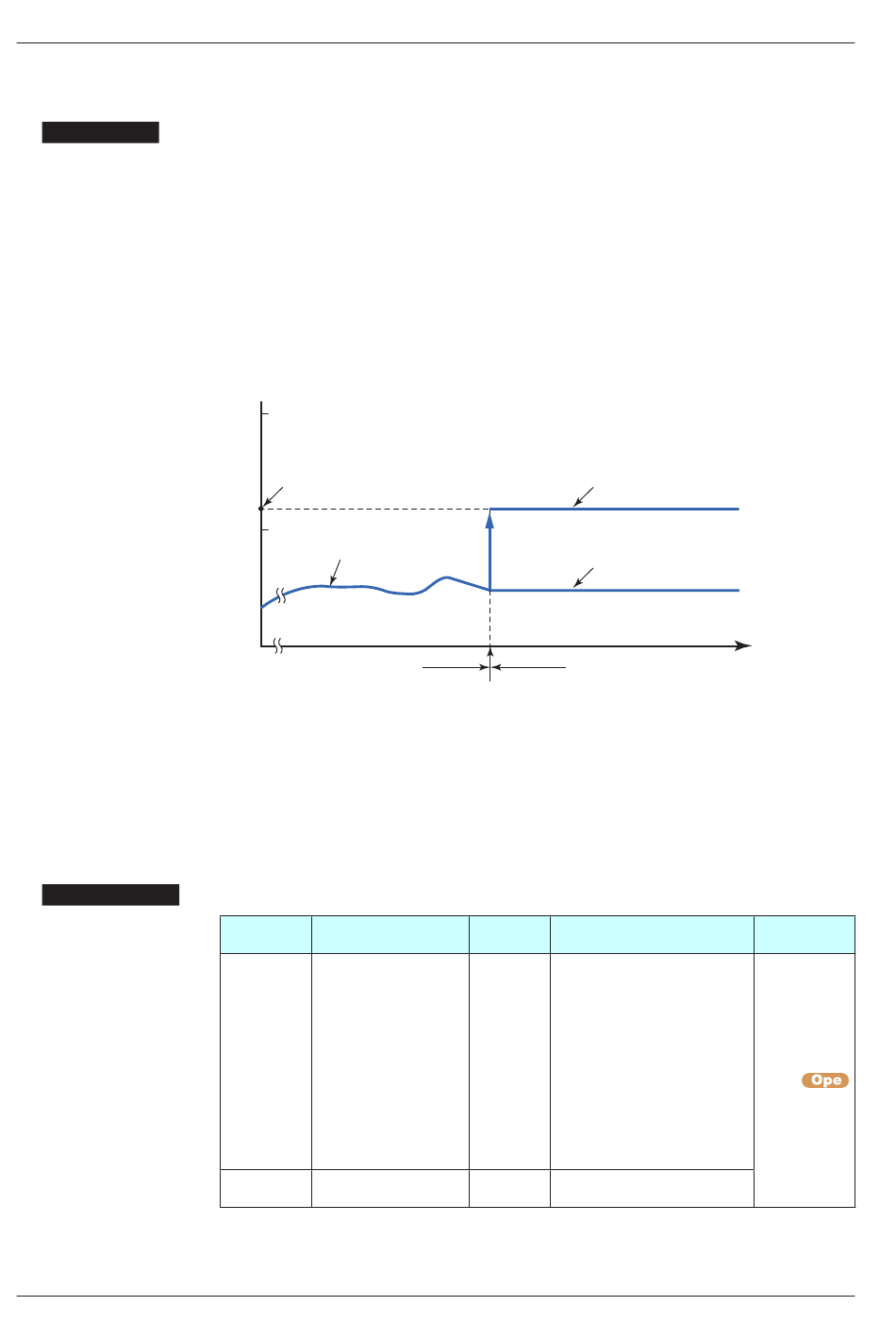

Control output
100%
Manual preset output
Control output obtained by PID
50%
computation based on
deviation between SP and PV.
0%
AUTO state
When the operation mode is switched from MAN to AUTO, transferred without bump from
the manual output to the control output.
► Output limiter: 10.3 Setting Limiter to Control Output
► Output limiter switch: 10.4 Disabling Output Limiter in MAN mode
Parameter
Name
symbol
Manual preset output
MPON
number selection
MPO1 to Manual preset output 1
MPO5 to 5
Point where the controller
enters MAN state
Display
level
OFF: Hold the control output
in AUTO mode (bumpless)
1: Use manual preset output 1
(output bump)
2: Use manual preset output 2
(output bump)
STD
3: Use manual preset output 3
(output bump)
4: Use manual preset output 4
(output bump)
5: Use manual preset output 5
(output bump)
STD -5.0 to 105.0%
Output bump
Output bumpless
Time
MAN state
Setting range
IM 05P01D31-01EN
Menu symbol
TUNE
