6.1 Monitoring and Control of Operation Displays

Position Proportional Type

6-2

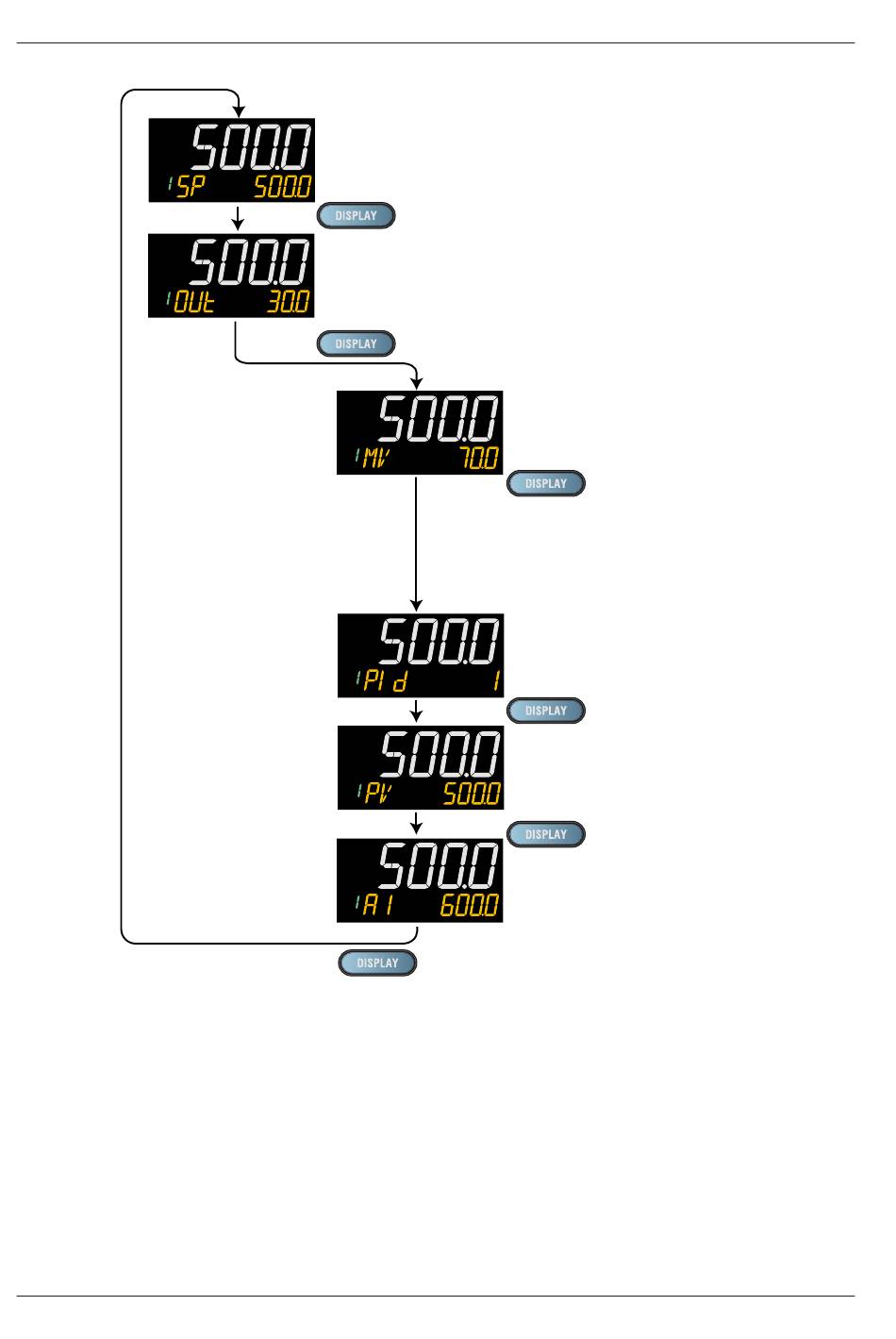

SP Display (SP can be changed.)
Valve Position Display (display only)
Position Proportional Computation Output Display
(Factory default: non-display)
Program Pattern Number Display (Display only)
Parameter RMS = PROG
PID Number Display (display only)
(Factory default: non-display)
Analog Input Displays (display only)
(Factory default: non-display)
PV: PV analog input
SELECT Displays 1 to 5
(Displayed only when SELECT Display is registered.)
(The figure on the left is the example of
the parameter A1 (alarm-1 setpoint).)
