YOKOGAWA UT520 User Manual

Digital indicating controllers
Hide thumbs Also See for UT520:
Table of Contents

Advertisement

Quick Links

Download this manual
User's
Manual

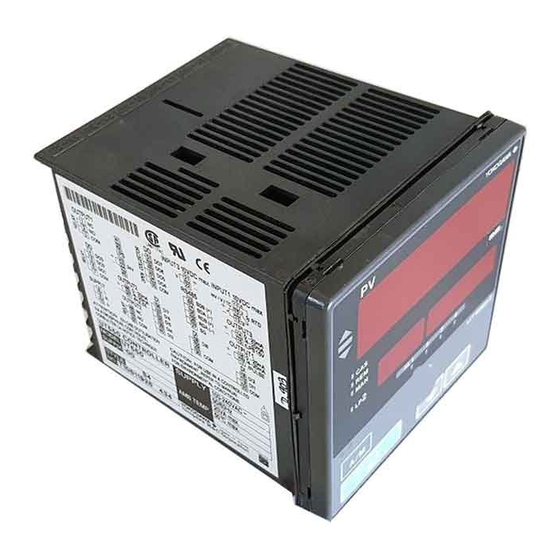

Models UT550/UT520
Digital Indicating Controllers
User's Manual for
Single-loop Control
IM 05D01C02-41E
IM 05D01C02-41E
3rd Edition
