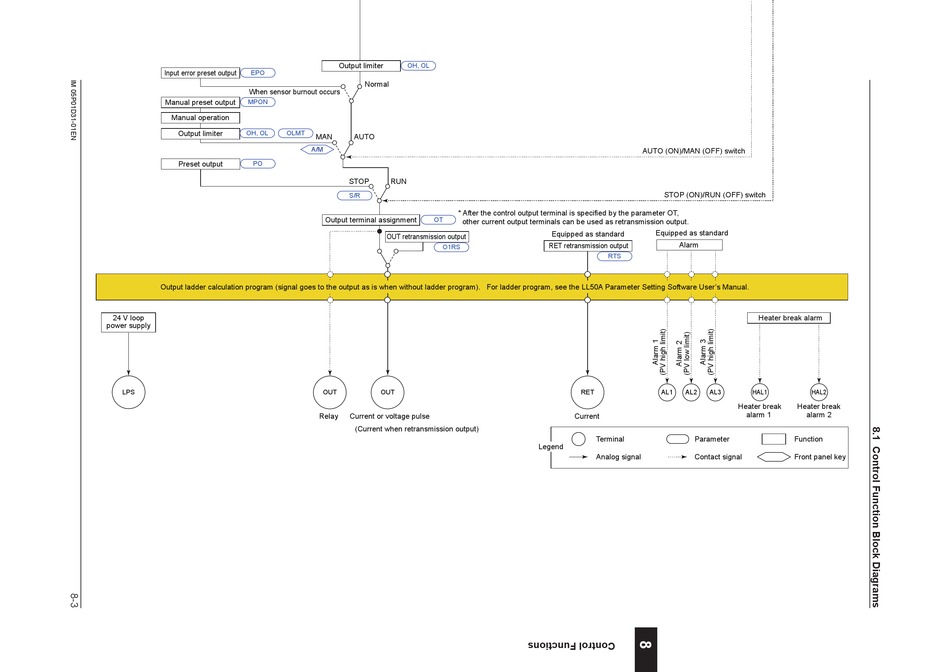

Input error preset output EPO
When sensor burnout occurs
Manual preset output MPON
Manual operation
Output limiter OH, OL
Preset output PO
Output ladder calculation program (signal goes to the output as is when without ladder program). For ladder program, see the LL50A Parameter Setting Software User's Manual.
24 V loop
power supply
LPS
Output limiter
OH, OL
Normal
OLMT
AUTO
MAN
A/M
STOP RUN
S/R
* After the control output terminal is specified by the parameter OT,
Output terminal assignment OT
other current output terminals can be used as retransmission output.
OUT retransmission output
O1RS
OUT OUT
Relay Current or voltage pulse
(Current when retransmission output)
AUTO (ON)/MAN (OFF) switch
STOP (ON)/RUN (OFF) switch
Equipped as standard
Equipped as standard
Alarm
RET retransmission output
RTS
RET AL1 AL2 AL3
Current
Terminal Parameter
Legend
Analog signal Contact signal
Heater break alarm
HAL1 HAL2
Heater break Heater break
alarm 1 alarm 2
Function
Front panel key
