Two-position Two-level Control Output
Setting Details
IM 05P01D31-01EN
Two-position Two-level Control is equipped only with Heating/cooling type (Suffix code:
Type 1 = -2).
► Two-position two-level control output: 8.1.1 Single-loop Control, Heating/cooling Control,
Position Proportional Control, and Two-position Two-level Control
► Two-position two-level control: 8.2.4 Two-position Two-level Control
Parameter
Name
symbol
Output type
OT
selection
No output is generated even if the terminal which is not provided is selected.
Confirm that the terminal to be selected is provided.
For each output terminal number, see 17.4, "Wiring."
Set a control type, and an input type before setting an output type.
► Control type: 8.2 Setting Control Type (CNT)
► Input type: 7.1.1 Setting Input Type, Unit, Range, Scale, and Decimal Point Position
Control Output (PID Control, ON/OFF Control) of Standard type

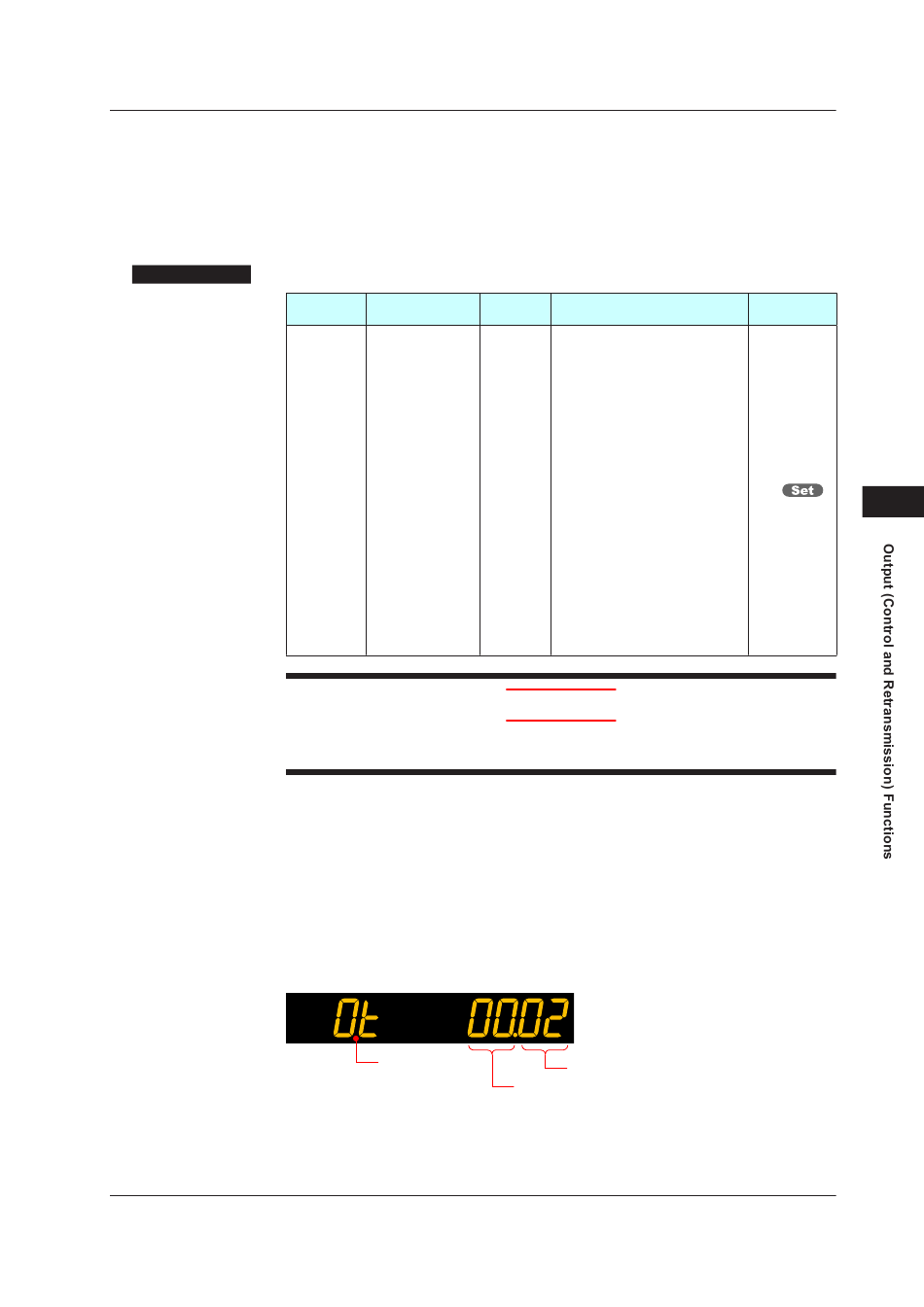

The figure below shows an example of setting the current output of the OUT terminal to
the control output terminal and type. Set "02" to lower two digits and "00" to upper two
digits.
Symbol
10.1 Setting Control Output Type
Display
Setting range
level
Control output or Heating-side
control output (Lower two digits)
00: OFF
01: OUT terminals (voltage pulse)
02: OUT terminals (current)
03: OUT terminals (relay/triac)
06: OUT2 terminals (relay)
07: RET/OUT2 terminals (voltage
pulse)
08: RET/OUT2 terminals (current)
EASY
Cooling-side control output (Upper
two digits)
00: OFF
01: OUT terminals (voltage pulse)
02: OUT terminals (current)
03: OUT terminals (relay/triac)
06: OUT2 terminals (relay)
07: RET/OUT2 terminals (voltage
pulse)
08: RET/OUT2 terminals (current)
CAUTION
Control output terminal and type
00
Menu symbol
OUT
10
10-3
