Heating/Cooling Type - YOKOGAWA UT Advanced UT32A User Manual

Heating/cooling Type

IM 05P01D31-01EN
6.1 Monitoring and Control of Operation Displays

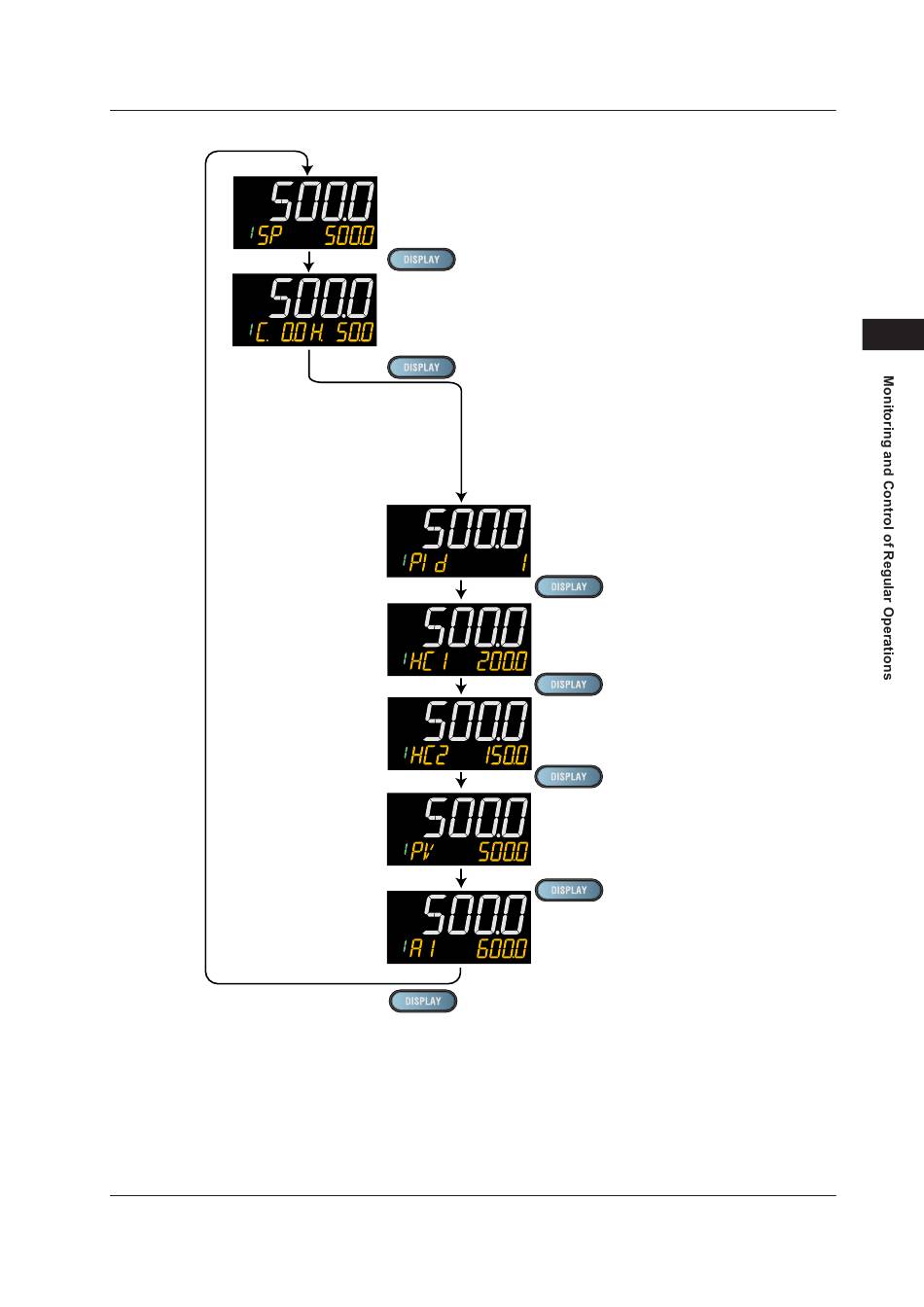

SP Display (SP can be changed.)
Heating/cooling OUT Display (OUT can be changed in MAN mode.)
C: cooling-side output, H: heating-side output
Program Pattern Number Display (Display only)
Parameter RMS = PROG
PID Number Display (display only)
(Factory default: non-display)
Heater Break Alarm-1 Current Display (display only)
(Only for Heater break alarm option)
Heater Break Alarm-2 Current Display (display only)
(Only for Heater break alarm option)
Analog Input Displays (display only)
(Factory default: non-display)
PV: PV analog input
SELECT Displays 1 to 5
(Displayed only when SELECT Display is registered.)
(The figure on the left is the example of
the parameter A1 (alarm-1 setpoint).)
